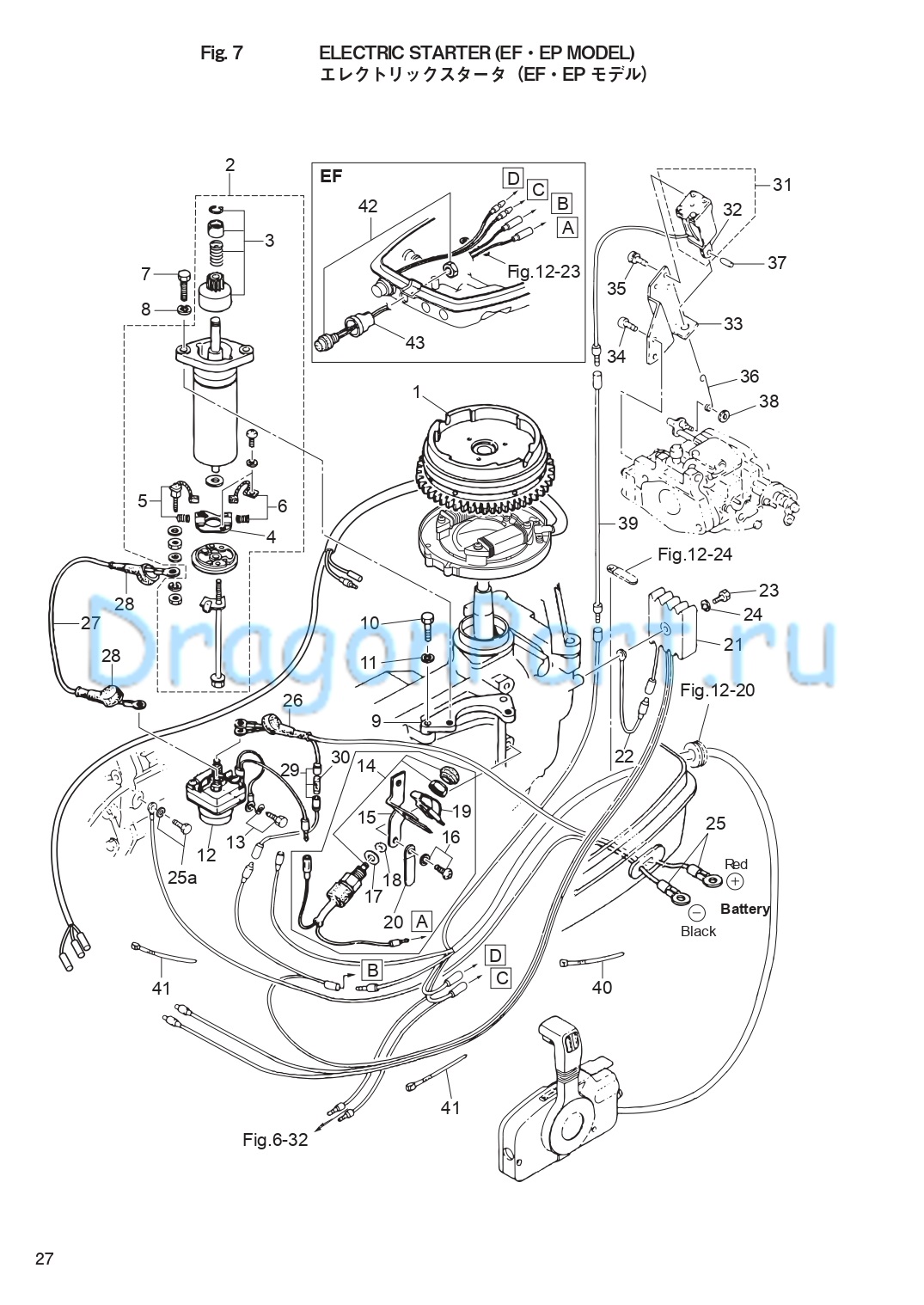

ELECTRIC STARTER (EF EP MODEL) для Tohatsu M18E2 - 2020 года выпуска
-
№АртикулНазвание
-
13M3-06091-1 FLYWHEEL W/GEARFLYWHEEL W/GEAR
-
2350-76010-0 STARTER MOTOR ASSYSTARTER MOTOR ASSY
-
3350-76015-0 * PINION ASSY* PINION ASSY
-
4350-76014-0 * BRUSH HOLDER* BRUSH HOLDER
-
5350-76012-0 * POSITIVE BRUSH
Spring* POSITIVE BRUSH
Spring -
6350-76013-0 * NEGATIVE BRUSH
Spring* NEGATIVE BRUSH
Spring -
7916103-0830 BOLTBOLT
-
8941303-0800 SPRING WASHERSPRING WASHER
-
9350-76011-0 STARTER MOTOR BRACKETSTARTER MOTOR BRACKET
-
10916103-0830 BOLTBOLT
-
11941303-0800 SPRING WASHERSPRING WASHER
-
12346-76040-0 STARTER SOLENOIDSTARTER SOLENOID
-
13910103-6618 BOLTBOLT
-
14398-76080-1 NEUTRAL SWITCH
for EF TypeNEUTRAL SWITCH
for EF Type -
15350-76081-0 NEUTRAL SWITCH BRACKET
for EF TypeNEUTRAL SWITCH BRACKET
for EF Type -
16921503-6612 SCREW
for EF TypeSCREW
for EF Type -
173M4-76084-0 SPACER 12-14-2.2
for EF TypeSPACER 12-14-2.2
for EF Type -
183B7-63731-0 WASHER 12.5-24-1
for EF TypeWASHER 12.5-24-1
for EF Type -
19398-76083-0 NEUTRAL SWITCH ACTUATOR
for EF TypeNEUTRAL SWITCH ACTUATOR
for EF Type -
20398-06972-0 CLAMP 6.5-67PCLAMP 6.5-67P
-
213G2-76060-0 RECTIFIER COMPLETERECTIFIER COMPLETE
-
223G2-76142-0 GROUND CABLEGROUND CABLE
-
23921503-0525 SCREWSCREW
-
24941303-0500 SPRING WASHERSPRING WASHER
-
253B2-76120-1 BATTERY CABLE L=2000BATTERY CABLE L=2000
-
25a910103-5612 BOLT
Grund, Battery CableBOLT
Grund, Battery Cable -
263B7-76145-0 TERMINAL CAP 8-13-30TERMINAL CAP 8-13-30
-
273B2-76147-2 STARTER CABLE L=200STARTER CABLE L=200
-
283A3-76145-0 TERMINAL CAP 8-13-28
BlackTERMINAL CAP 8-13-28
Black -
293B2-76062-0 FUSE WIRE ASSY L=355FUSE WIRE ASSY L=355
-
30346-76212-0 * FUSE 15A* FUSE 15A
-
31361-76050-0 CHOKE SOLENOID
for EP TypeCHOKE SOLENOID
for EP Type -
32361-76073-0 * PLUNGER* PLUNGER
-
333G2-76055-2 CHOKE SOLENOID BRACKET
for EP TypeCHOKE SOLENOID BRACKET
for EP Type -
34921503-6512 SCREW
for EP TypeSCREW
for EP Type -
35921503-6408 SCREW
for EP TypeSCREW
for EP Type -
363G2-76057-1 CHOKE SOLENOID HOOK
for EP TypeCHOKE SOLENOID HOOK
for EP Type -
37951403-0312 SPRING PIN 3-12
for EP TypeSPRING PIN 3-12
for EP Type -
383C7-03271-2 O-RING 1.5-2.5
for EP TypeO-RING 1.5-2.5
for EP Type -
39398-76049-0 LEAD WIRE
for EP Type BlackLEAD WIRE
for EP Type Black -
403T5-84398-0 BAND 104
for EF TypeBAND 104
for EF Type -
413T5-84398-0 BAND 104
for EP TypeBAND 104
for EP Type -
42361-76026-0 MAIN SWITCH ASSY
for EF TypeMAIN SWITCH ASSY
for EF Type -
43346-76039-1 SWITCH PROTECTOR (FOOLPROOF)
for EF TypeSWITCH PROTECTOR (FOOLPROOF)
for EF Type
