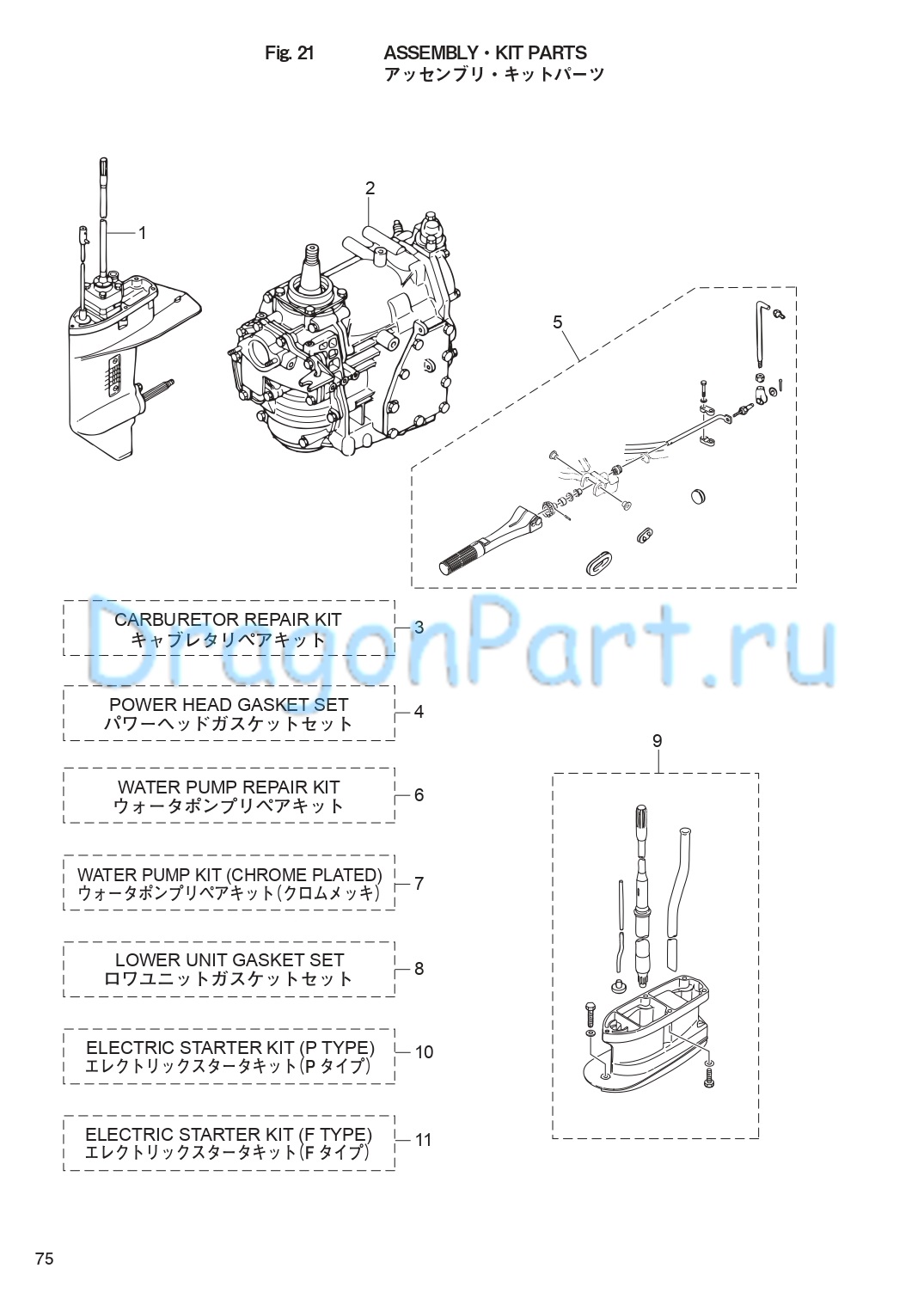

ASSEMBLY KIT PARTS для Tohatsu M30H - 2020 года выпуска
-
№АртикулНазвание
-
1346Q87301-C LOWER UNIT ASSY (S)
for Transom "S"LOWER UNIT ASSY (S)
for Transom "S" -
1346Q87302-C LOWER UNIT ASSY (L)
for Transom "L"LOWER UNIT ASSY (L)
for Transom "L" -
23P1B87090-C ENGINE SHORT BLOCK KIT
BlackENGINE SHORT BLOCK KIT
Black -
3346-87122-0 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
3346-02011-1 * CARBURETOR GASKET* CARBURETOR GASKET
-
3922503-6414 * SCREW* SCREW
-
3346-03222-0 * FLOAT CHAMBER O-RING* FLOAT CHAMBER O-RING
-
3346-03231-0 * FLOAT* FLOAT
-
3346-03232-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
33B7-03240-0 * FLOAT VALVE* FLOAT VALVE
-
3334-03242-0 * VALVE PIN* VALVE PIN
-
3344-03244-0 * CLIP* CLIP
-
3346-03256-0 * RUBBER CAP* RUBBER CAP
-
3346-03265-0 * STOP SCREW* STOP SCREW
-
3346-03266-0 * PILOT SCREW* PILOT SCREW
-
3336-03293-0 * O-RING* O-RING
-
43A1-87121-6 POWER HEAD GASKET SETPOWER HEAD GASKET SET
-
4346-01005-3 * CYLINDER HEAD GASKET* CYLINDER HEAD GASKET
-
4346-01032-0 * THERMOSTAT CAP GASKET* THERMOSTAT CAP GASKET
-
4346-02305-2 * EXHAUST COVER GASKET* EXHAUST COVER GASKET
-
4346-00122-0 * OIL SEAL 24-40-8
Crankshaft(Lower)* OIL SEAL 24-40-8
Crankshaft(Lower) -
4338-01403-0 * O-RING 2-55.5
Magneto Basement* O-RING 2-55.5
Magneto Basement -
4346-01215-0 * OIL SEAL 16-28-6
Crankcase Head* OIL SEAL 16-28-6
Crankcase Head -
4346-02011-1 * CARBURETOR GASKET* CARBURETOR GASKET
-
4346-01216-0 * O-RING 1.7-59
Crankcase Head* O-RING 1.7-59
Crankcase Head -
4126-00121-0 * OIL SEAL 30-45-8 30-45-8* OIL SEAL 30-45-8 30-45-8
-
4346-04901-2 * GASKET
Fuel Pump* GASKET
Fuel Pump -
4346-01303-1 * ENGINE BASEMENT GASKET* ENGINE BASEMENT GASKET
-
53KKQ63000-2 TILLER HANDLE KITTILLER HANDLE KIT
-
5398Q63003-3 * TILLER HANDLE ASSY* TILLER HANDLE ASSY
-
5346-63064-0 * UNIVERSAL PINION* UNIVERSAL PINION
-
5951403-0414 * SPRING PIN 4-14* SPRING PIN 4-14
-
5346-63061-2 * THROTTLE SHAFT* THROTTLE SHAFT
-
5345-63063-0 * THROTTLE SHAFT SUPPORT* THROTTLE SHAFT SUPPORT
-
5910103-7630 * BOLT* BOLT
-
5346-63066-1 * COLLAR 15.9-17-9* COLLAR 15.9-17-9
-
5940103-0800 * WASHER* WASHER
-
5345-66226-0 * GROMMET 17-3* GROMMET 17-3
-
5350-63046-0 * BUSHING 8.4-10-11* BUSHING 8.4-10-11
-
5353-83728-1 * PIN* PIN
-
5930103-0600 * NUT* NUT
-
53AA-83719-0 * WASHER 8.5-18-1.6* WASHER 8.5-18-1.6
-
5951603-0800 * SNAP PIN d=8* SNAP PIN d=8
-
5348-63715-1 * ROD 5-75L* ROD 5-75L
-
5346-05234-0 * ROD JOINT φ5* ROD JOINT φ5
-
5930103-0500 * NUT* NUT
-
53B7-63733-0 * ROD SNAP 5-2.5* ROD SNAP 5-2.5
-
5346-67165-0 * GROMMET 68-20-2.8* GROMMET 68-20-2.8
-
5353-67162-0 * GROMMET 41-14-3* GROMMET 41-14-3
-
6361-87322-0 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
6332-65022-0 * KEY 20-4.6-2* KEY 20-4.6-2
-
6345-65021-0 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
6348-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
6348-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
6348-65029-1 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
6348-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
69101E3-5652 * BOLT* BOLT
-
7361-65231-0 WATER PUMP KIT (CHROME PLATED)WATER PUMP KIT (CHROME PLATED)
-
7345-65021-0 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
7361-65238-0 * PUMP CASE LINER
Chrome Plated* PUMP CASE LINER
Chrome Plated -
7361-65239-0 * WATER PUMP GUIDE PLATE
Chrome Plated* WATER PUMP GUIDE PLATE
Chrome Plated -
7348-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
7348-65029-1 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
8346-87321-7 LOWER UNIT GASKET SETLOWER UNIT GASKET SET
-
8332-60006-0 * GASKET 8.1-15-1* GASKET 8.1-15-1
-
8332-60103-0 * O-RING 3-62.5
Propeller Shaft Housing* O-RING 3-62.5
Propeller Shaft Housing -
83AC-60111-0 * OIL SEAL 18-28-8* OIL SEAL 18-28-8
-
8346-65013-0 * OIL SEAL 17-30-9
Pump Case (Lower)* OIL SEAL 17-30-9
Pump Case (Lower) -
8336-62415-0 * O-RING 3.5-36
Pump Case (Lower)* O-RING 3.5-36
Pump Case (Lower) -
8348-65029-1 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
8348-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
8332-66021-0 * O-RING 2.4-5.8
Cam Rod* O-RING 2.4-5.8
Cam Rod -
83C8-66032-0 * O-RING 3.5-21.7
Cam Rod Bushing* O-RING 3.5-21.7
Cam Rod Bushing -
9346Q87314-6 EXTENSION HOUSING KIT (UL)
for Transom "L"=>"UL"EXTENSION HOUSING KIT (UL)
for Transom "L"=>"UL" -
9346Q61110-5 * EXTENSION HOUSING* EXTENSION HOUSING
-
99161E3-0835 * BOLT* BOLT
-
99161E3-0845 * BOLT* BOLT
-
93P0-66233-0 * WASHER 8.1-16-1.5* WASHER 8.1-16-1.5
-
9346-64303-5 * DRIVE SHAFT (UL)* DRIVE SHAFT (UL)
-
9346-65120-0 * WATER PIPE (UL)* WATER PIPE (UL)
-
9346-66014-1 * CAM ROD (UL)* CAM ROD (UL)
-
9346-66037-0 * CAM ROD HOLDER* CAM ROD HOLDER
-
103KM-76100-0 ELECTRIC STARTER KIT (P)
for MF => EP TypeELECTRIC STARTER KIT (P)
for MF => EP Type -
103P0-06091-1 * FLYWHEEL W/GEAR* FLYWHEEL W/GEAR
-
10346-76010-0 * STARTER MOTOR ASSY* STARTER MOTOR ASSY
-
10916103-0835 * BOLT* BOLT
-
10930103-0800 * NUT* NUT
-
10941303-0800 * SPRING WASHER* SPRING WASHER
-
10346-76040-0 * STARTER SOLENOID* STARTER SOLENOID
-
10910103-0616 * BOLT* BOLT
-
10941303-0600 * SPRING WASHER* SPRING WASHER
-
10930103-0600 * NUT* NUT
-
10346-76043-2 * STARTER SOLENOID BRACKET* STARTER SOLENOID BRACKET
-
103G2-76060-0 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
10921503-0525 * SCREW* SCREW
-
10941303-0500 * SPRING WASHER* SPRING WASHER
-
10930103-0500 * NUT* NUT
-
10353-06281-0 * CABLE TERMINAL HOLDER* CABLE TERMINAL HOLDER
-
10353-06283-0 * COLLAR 6.4-10-4.7* COLLAR 6.4-10-4.7
-
10910103-0620 * BOLT* BOLT
-
103PR-06972-0 * CLAMP 6.5-47.5P* CLAMP 6.5-47.5P
-
10346-76081-1 * NEUTRAL SWITCH BRACKET* NEUTRAL SWITCH BRACKET
-
10910903-6616 * BOLT* BOLT
-
10910903-6508 * BOLT* BOLT
-
103B2-76062-0 * FUSE WIRE ASSY L=355* FUSE WIRE ASSY L=355
-
103B2-76120-1 * BATTERY CABLE L=2000* BATTERY CABLE L=2000
-
103B7-76145-0 * TERMINAL CAP 8-13-30* TERMINAL CAP 8-13-30
-
10334-76141-1 * STARTER CABLE L=150* STARTER CABLE L=150
-
10910103-0612 * BOLT* BOLT
-
103B2-76147-2 * STARTER CABLE L=200* STARTER CABLE L=200
-
103A3-76145-0 * TERMINAL CAP 8-13-28* TERMINAL CAP 8-13-28
-
10336-76091-0 * LEAD WIRE BAND 100* LEAD WIRE BAND 100
-
10361-76050-0 * CHOKE SOLENOID* CHOKE SOLENOID
-
10951403-0312 * SPRING PIN 3-12* SPRING PIN 3-12
-
10345-76072-1 * ROD* ROD
-
10921503-6408 * SCREW* SCREW
-
10930403-0400 * NYLON NUT 4-P0.7* NYLON NUT 4-P0.7
-
10336-06973-0 * CLAMP 6-9.5L* CLAMP 6-9.5L
-
10921503-0612 * SCREW* SCREW
-
10345-76023-0 * GROMMET 22-2.5* GROMMET 22-2.5
-
10346-76007-0 * DAMPER* DAMPER
-
10361-76149-0 * SPIRAL TUBE PROTECTOR L=130-140* SPIRAL TUBE PROTECTOR L=130-140
-
103G2-76142-0 * GROUND CABLE* GROUND CABLE
-
113KM-76300-0 ELECTRIC STARTER KIT (F)
for MF=>EF TypeELECTRIC STARTER KIT (F)
for MF=>EF Type -
113P0-06091-1 * FLYWHEEL W/GEAR* FLYWHEEL W/GEAR
-
11346-76010-0 * STARTER MOTOR ASSY* STARTER MOTOR ASSY
-
11916103-0835 * BOLT* BOLT
-
11930103-0800 * NUT* NUT
-
11941303-0800 * SPRING WASHER* SPRING WASHER
-
11346-76040-0 * STARTER SOLENOID* STARTER SOLENOID
-
11910103-0616 * BOLT* BOLT
-
11941303-0600 * SPRING WASHER* SPRING WASHER
-
11930103-0600 * NUT* NUT
-
11346-76043-2 * STARTER SOLENOID BRACKET* STARTER SOLENOID BRACKET
-
113G2-76060-0 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
11921503-0525 * SCREW* SCREW
-
11941303-0500 * SPRING WASHER* SPRING WASHER
-
11930103-0500 * NUT* NUT
-
11353-06281-0 * CABLE TERMINAL HOLDER* CABLE TERMINAL HOLDER
-
11353-06283-0 * COLLAR 6.4-10-4.7* COLLAR 6.4-10-4.7
-
11910103-0620 * BOLT* BOLT
-
113PR-06972-0 * CLAMP 6.5-47.5P* CLAMP 6.5-47.5P
-
11346-76081-1 * NEUTRAL SWITCH BRACKET* NEUTRAL SWITCH BRACKET
-
11910903-6508 * BOLT* BOLT
-
113NV-76080-0 * NEUTRAL SWITCH* NEUTRAL SWITCH
-
113A1-76082-0 * NEUTRAL SWITCH OPERATING LEVER* NEUTRAL SWITCH OPERATING LEVER
-
113M4-76084-0 * SPACER 12-14-2.2* SPACER 12-14-2.2
-
11910903-6616 * BOLT* BOLT
-
113B2-76062-0 * FUSE WIRE ASSY L=355* FUSE WIRE ASSY L=355
-
113B2-76120-1 * BATTERY CABLE L=2000* BATTERY CABLE L=2000
-
113B7-76145-0 * TERMINAL CAP 8-13-30* TERMINAL CAP 8-13-30
-
11334-76141-1 * STARTER CABLE L=150* STARTER CABLE L=150
-
11910103-0612 * BOLT* BOLT
-
113B2-76147-2 * STARTER CABLE L=200* STARTER CABLE L=200
-
113A3-76145-0 * TERMINAL CAP 8-13-28* TERMINAL CAP 8-13-28
-
11336-76091-0 * LEAD WIRE BAND 100* LEAD WIRE BAND 100
-
11361-76026-0 * MAIN SWITCH ASSY* MAIN SWITCH ASSY
-
11346-76007-0 * DAMPER* DAMPER
-
113B7-63731-0 * WASHER 12.5-24-1* WASHER 12.5-24-1
-
113G2-76142-0 * GROUND CABLE* GROUND CABLE
Все узлы модели:
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- INTAKE MAINFOLD FULE PUMP
- CARBURETOR
- RECOIL STARTER
- MAGNETO
- ELECTRIC PARTS
- ELECTRIC PARTS ( F TYPE)
- DRIVE SHAFT HOUSING
- GEAR CASE (DRIVE SHAFT)
- GEAR CASE (PROPELLER SHAFT)
- BRACKET
- TILLER HANDLE
- BOTTOM COWL
- SHIFT
- REMOTE CONTROL PARTS
- TOP COWL
- FUEL TANK
- COMPONENT PARTS OF REMOTE CONTROL
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- OPTIONAL PARTS (ACCESSORIES) (1)
- • ASSEMBLY KIT PARTS
