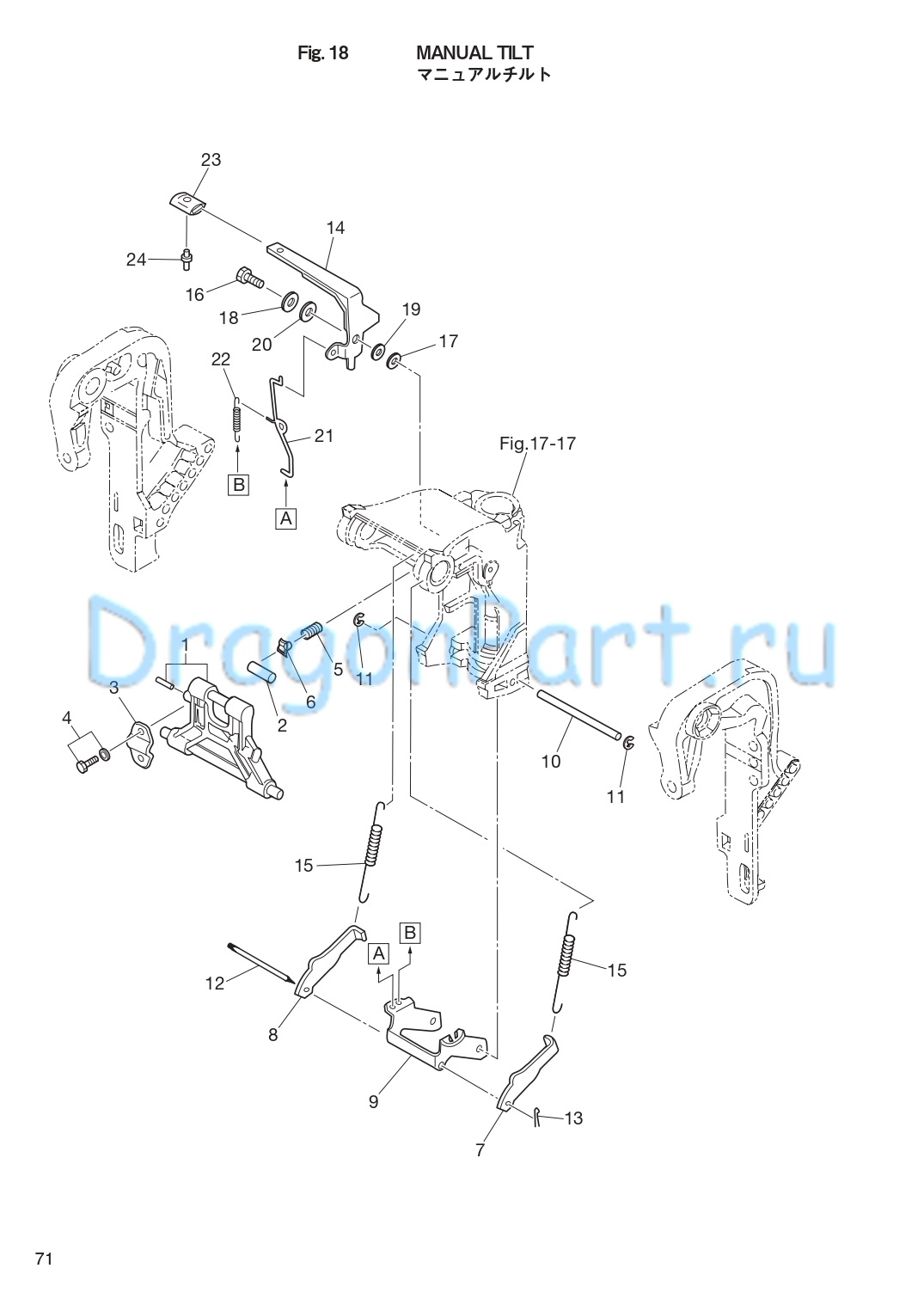

MANUAL TILT для Tohatsu M50D2 - 2020 года выпуска
-
№АртикулНазвание
-
13C8Q62431-0 TILT STOPPER ASSYTILT STOPPER ASSY
-
2346-62437-0 BUSHING 10.2-12-29.5BUSHING 10.2-12-29.5
-
3346-62439-1 SETTING PLATESETTING PLATE
-
49101E3-5820 BOLTBOLT
-
53C8-62421-1 FRICTION SPRINGFRICTION SPRING
-
6346-62438-0 SETTING PIECESETTING PIECE
-
73C8-66352-2 REVERSE LOCK (L)REVERSE LOCK (L)
-
83C8-66351-2 REVERSE LOCK (R)REVERSE LOCK (R)
-
93C8-66313-4 REVERSE LOCK ARMREVERSE LOCK ARM
-
103C8-66319-1 REVERSE LOCK SHAFTREVERSE LOCK SHAFT
-
11945303-0600 E-RING d=6E-RING d=6
-
123C8-66321-0 REVERSE LOCK RODREVERSE LOCK ROD
-
13951503-0212 SPLIT PIN 2-12SPLIT PIN 2-12
-
143E3-62436-1 TILT STOPPER LEVERTILT STOPPER LEVER
-
153C8-66332-2 REVERSE LOCK SPRING (L)
for Transom “L” & “UL”REVERSE LOCK SPRING (L)
for Transom “L” & “UL” -
153C8-66331-2 REVERSE LOCK SPRING (S)
for Transom “S”REVERSE LOCK SPRING (S)
for Transom “S” -
163AL-05254-0 SHOULDER BOLT 6-8SHOULDER BOLT 6-8
-
173R0-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
18940103-0800 WASHERWASHER
-
193AL-05212-0 BUSHING 8.1-20BUSHING 8.1-20
-
203AA-83719-0 WASHER 8.5-18-1.6WASHER 8.5-18-1.6
-
213C8-66318-1 LINKLINK
-
223C8-66336-0 SPRINGSPRING
-
23346-66333-0 REVERSE LOCK LEVER GRIPREVERSE LOCK LEVER GRIP
-
24346-66334-0 STOPPERSTOPPER
