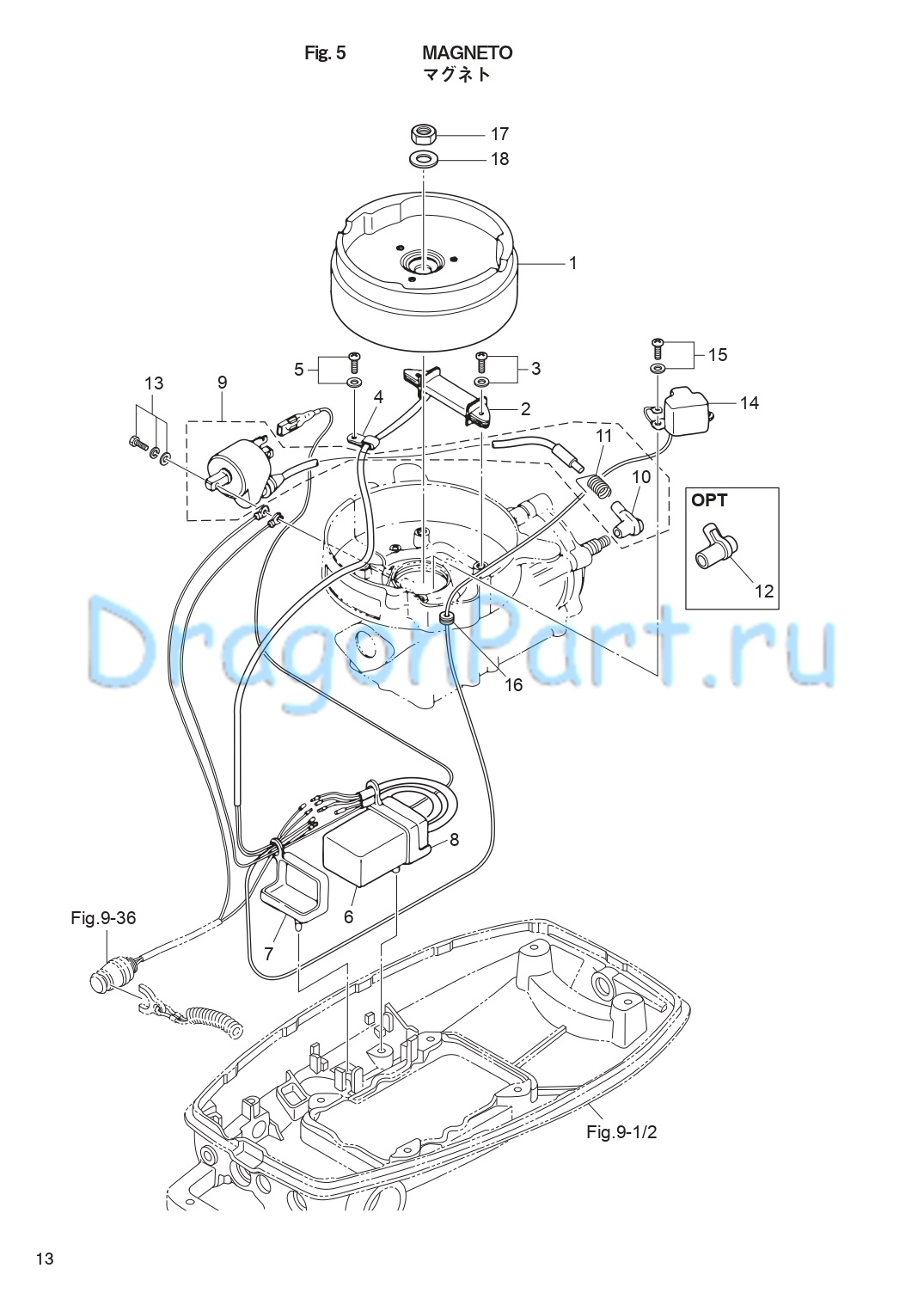

MAGNETO для Tohatsu M5B - 2020 года выпуска
-
№АртикулНазвание
-
1369-06001-1 FLYWHEELFLYWHEEL
-
2369-06021-0 EXCITER COILEXCITER COIL
-
3921521-6520 SCREWSCREW
-
4369-06915-0 CLAMP 4.2-3-8CLAMP 4.2-3-8
-
5921521-6408 SCREWSCREW
-
6369-06060-1 CD UNITCD UNIT
-
73H6-06907-0 RUBBER DAMPERRUBBER DAMPER
-
83H6-06906-0 RUBBER DAMPERRUBBER DAMPER
-
93F9-06050-0 IGNITION COIL W/CAPIGNITION COIL W/CAP
-
103M2-06921-0 * PLUG CAP
STD* PLUG CAP
STD -
113M2-06926-0 * PLUG CAP TERMINAL
STD* PLUG CAP TERMINAL
STD -
123C7-06921-0 PLUG CAP W/RESISTANCE
OPTPLUG CAP W/RESISTANCE
OPT -
13910121-7622 BOLTBOLT
-
14369-06071-0 PULSAR COILPULSAR COIL
-
15921521-6412 SCREWSCREW
-
16369-06908-0 GROMMET φ11.2GROMMET φ11.2
-
17369-00132-0 NUT 12-P1.25NUT 12-P1.25
-
18940121-1200 WASHERWASHER
