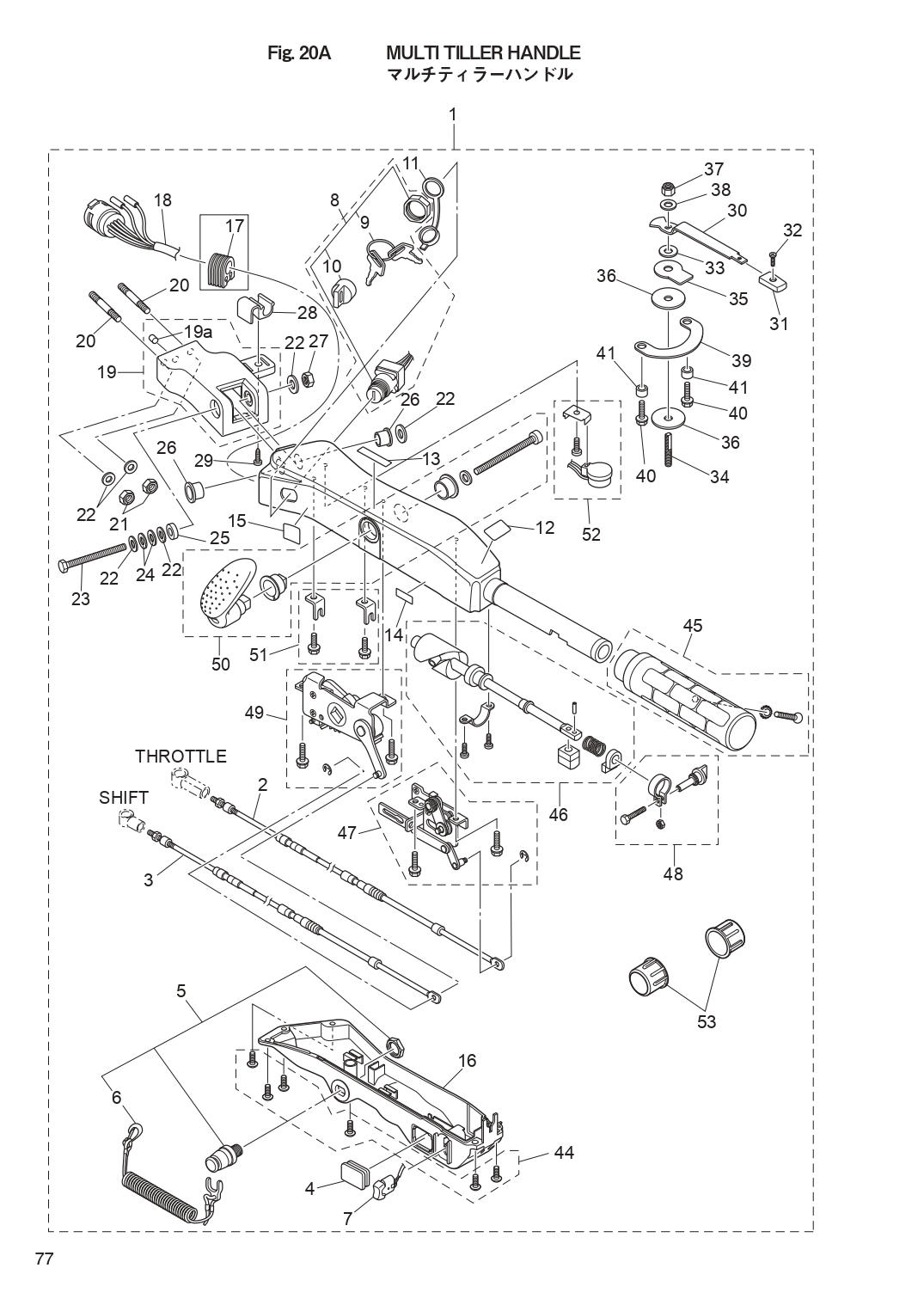

MULTI TILLER HANDLE для Tohatsu MFS25C - 2020 года выпуска
-
№АртикулНазвание
-
13NVQ63000-1 TILLER HANDLE KITTILLER HANDLE KIT
-
23NV-63600-0 * THROTTLE WIRE* THROTTLE WIRE
-
33NV-66196-0 * SHIFT CABLE* SHIFT CABLE
-
43AH-63624-0 * GROMMET* GROMMET
-
5398-06830-0 * STOP SWITCH ASSY* STOP SWITCH ASSY
-
6353-06821-0 ** STOP SWITCH LANYARD ASSY** STOP SWITCH LANYARD ASSY
-
73AH-72615-0 * PTT SWITCH ASSY* PTT SWITCH ASSY
-
83GF-76020-0 * MAIN SWITCH ASSY* MAIN SWITCH ASSY
-
93GF-76217-0 ** MAIN SWITCH KEY** MAIN SWITCH KEY
-
93GF-76218-0 ** MAIN SWITCH KEY** MAIN SWITCH KEY
-
93GF-76219-0 ** MAIN SWITCH KEY** MAIN SWITCH KEY
-
103GF-76205-0 ** MAIN SWITCH KEY COVERING CAP** MAIN SWITCH KEY COVERING CAP
-
113T5-76022-0 * MAIN SWITCH CAP (WATERPROOF)* MAIN SWITCH CAP (WATERPROOF)
-
123GF-72019-0 * THROTTLE DECAL* THROTTLE DECAL
-
133GF-67578-1 * SHIFT DECAL* SHIFT DECAL
-
143GF-72200-0 * STOP SWITCH DECAL* STOP SWITCH DECAL
-
153GF-84339-0 * INSTRUCTION DECAL* INSTRUCTION DECAL
-
163GF-63320-0 * TILLER HANDLE COVER* TILLER HANDLE COVER
-
173GF-63624-0 * GROMMET* GROMMET
-
183AH-76119-0 * CORD ASSY* CORD ASSY
-
193AHQ62000-0 * STEERING BRACKET ASSY* STEERING BRACKET ASSY
-
19a3GF-65012-0 ** DOWEL PIN 8-16** DOWEL PIN 8-16
-
209153E3-1040 * STUD M10-40* STUD M10-40
-
21930403-1000 * NYLON NUT 10-P1.5* NYLON NUT 10-P1.5
-
229401E3-1000 * WASHER* WASHER
-
233GF-63201-0 * BOLT 10-80 P1.25* BOLT 10-80 P1.25
-
243GF-63305-0 * CONICAL SPRING WASHER 10.5-21-2.3* CONICAL SPRING WASHER 10.5-21-2.3
-
253GF-63025-0 * SPACER 10.5-23-9* SPACER 10.5-23-9
-
263GF-63102-0 * BUSHING 10.5-12.7-13.5* BUSHING 10.5-12.7-13.5
-
273GF-63310-0 * LOCK NUT 10-P1.25* LOCK NUT 10-P1.25
-
283GF-62004-0 * CORD HOLDER* CORD HOLDER
-
293T5-06437-0 * TAPPING SCREW 6-16* TAPPING SCREW 6-16
-
303AC-62441-0 * FRICTION LEVER* FRICTION LEVER
-
313AC-63012-0 * GRIP* GRIP
-
32346-66334-0 * STOPPER* STOPPER
-
333R3-62443-0 * WASHER 8.1-20-0.8* WASHER 8.1-20-0.8
-
343R3-62445-0 * BOLT M8 P1.25* BOLT M8 P1.25
-
353R3-62448-1 * WASHER 8.5-38-3* WASHER 8.5-38-3
-
363R3-62449-0 * DISC 8.5-38-2* DISC 8.5-38-2
-
37930403-0800 * NYLON NUT 8-P1.25* NYLON NUT 8-P1.25
-
389401E3-0800 * WASHER* WASHER
-
393AC-62447-0 * PLATE* PLATE
-
40910103-5616 * BOLT* BOLT
-
413AC-63619-0 * COLLAR 6.5-10.7-6.5* COLLAR 6.5-10.7-6.5
-
443GF-63205-0 * SCREW SET* SCREW SET
-
453GF-63193-0 * GRIP PARTS KIT* GRIP PARTS KIT
-
463GF-63062-0 * THROTTLE SHAFT KIT* THROTTLE SHAFT KIT
-
473GF-63067-0 * THROTTLE LINK ASSY
945303-0400 E-Ring¶1* THROTTLE LINK ASSY
945303-0400 E-Ring¶1 -
483GF-63032-0 * THROTTLE FRICTION ASSY* THROTTLE FRICTION ASSY
-
493GF-66160-0 * SHIFT UNIT ASSY
945303-0400 E-Ring¶1* SHIFT UNIT ASSY
945303-0400 E-Ring¶1 -
503GF-66158-0 * SHIFT LEVER KIT* SHIFT LEVER KIT
-
513GF-66198-0 * CABLE BRACKET KIT* CABLE BRACKET KIT
-
523GF-76175-0 * BUZZER KIT* BUZZER KIT
-
53346-62127-0 * CAP NUT* CAP NUT
