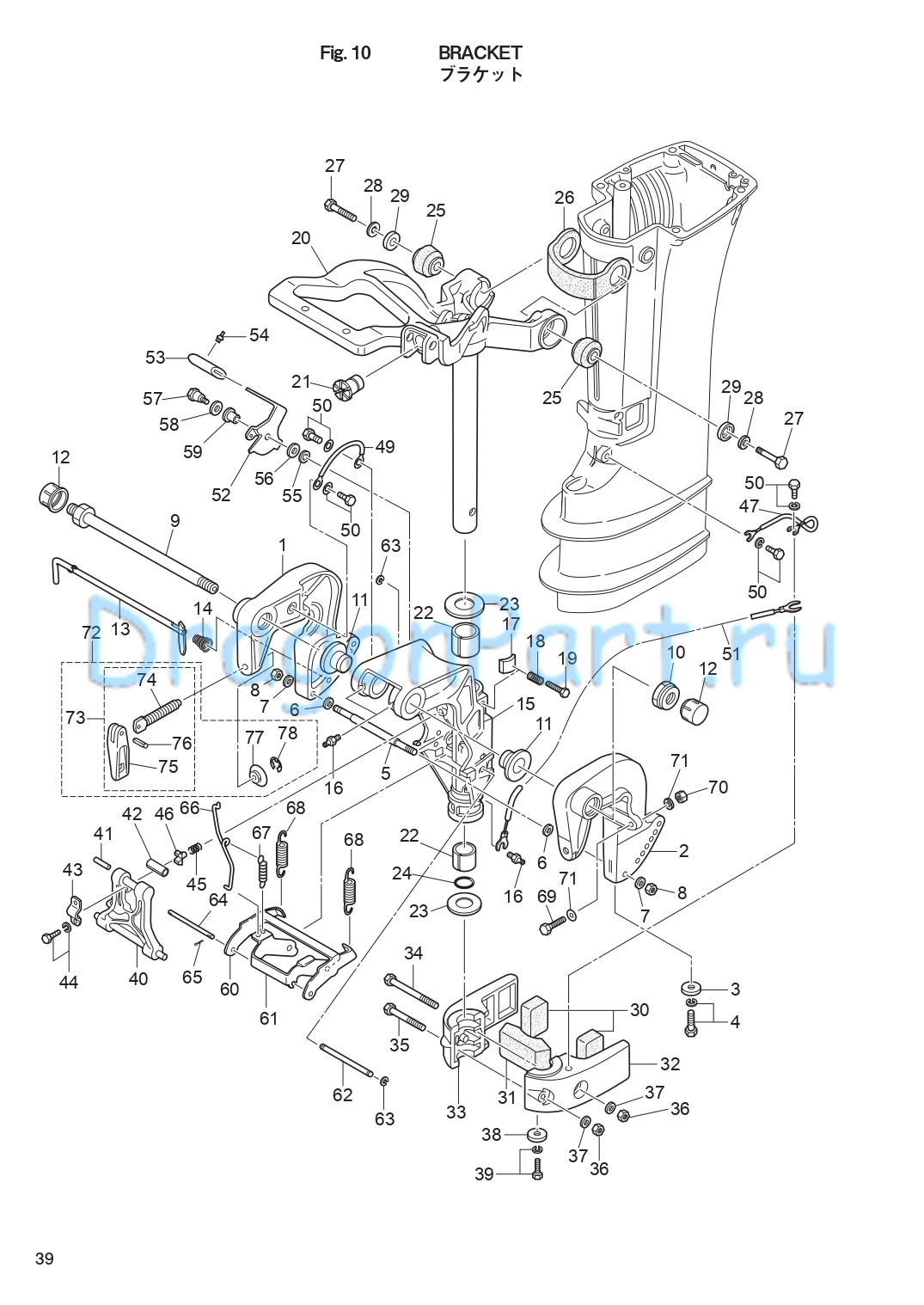

BRACKET для Tohatsu M18E2 - 2021 года выпуска
-
№АртикулНазвание
-
13V6Q62112-2 CLAMP BRACKET (R)
Starboard SideCLAMP BRACKET (R)
Starboard Side -
23V6Q62113-1 CLAMP BRACKET (L)
Port SideCLAMP BRACKET (L)
Port Side -
3338-60218-2 ANODEANODE
-
4910103-5620 BOLTBOLT
-
53V6-62117-0 DISTANCE PIECEDISTANCE PIECE
-
69401E3-0600 WASHERWASHER
-
79401E3-0600 WASHERWASHER
-
8930103-0600 NUTNUT
-
93AC-62191-0 SWIVEL BRACKET SHAFT ASSY
Bracket BoltSWIVEL BRACKET SHAFT ASSY
Bracket Bolt -
10346-62124-1 NYLON NUT 7/8-14NYLON NUT 7/8-14
-
11349-62126-0 BUSHINGBUSHING
-
12346-62127-0 CAP NUTCAP NUT
-
13350-62121-2 THRUST RODTHRUST ROD
-
14369-62122-2 THRUST ROD SPRINGTHRUST ROD SPRING
-
153G2Q62310-1 SWIVEL BRACKETSWIVEL BRACKET
-
16344-67177-1 GREASE FITTINGGREASE FITTING
-
17345-62441-0 FRICTION PIECEFRICTION PIECE
-
18346-62421-1 FRICTION SPRINGFRICTION SPRING
-
199101E3-0830 BOLTBOLT
-
20350Q62010-3 STEERING SHAFT ASSYSTEERING SHAFT ASSY
-
21350-63064-0 UNIVERSAL PINION
for MF/EF TypeUNIVERSAL PINION
for MF/EF Type -
22350-62417-0 BUSHING 24-30-30BUSHING 24-30-30
-
23350-62423-0 THRUST PLATE (UPPER)THRUST PLATE (UPPER)
-
24350-62415-0 O-RING 3.5-22O-RING 3.5-22
-
25350-61301-0 RUBBER MOUNT (UPPER)RUBBER MOUNT (UPPER)
-
26350-61337-0 DAMPER (UPPER)DAMPER (UPPER)
-
27398-61307-0 BOLT 10-45BOLT 10-45
-
28940103-1000 WASHERWASHER
-
29398-61308-2 WASHER 10.5-27-1.2WASHER 10.5-27-1.2
-
30350-61302-0 RUBBER MOUNT (LOWER)RUBBER MOUNT (LOWER)
-
31350-61336-0 DAMPER (LOWER)DAMPER (LOWER)
-
32350Q61402-1 MOUNT BRACKET (L)
Port SideMOUNT BRACKET (L)
Port Side -
33350Q61401-0 MOUNT BRACKET (R)
Starboard SideMOUNT BRACKET (R)
Starboard Side -
349161E3-0885 BOLTBOLT
-
359161E3-0855 BOLTBOLT
-
36930103-0800 NUTNUT
-
373P0-66233-0 WASHER 8.1-16-1.5WASHER 8.1-16-1.5
-
38338-60218-2 ANODEANODE
-
39910103-5620 BOLTBOLT
-
403G2Q62993-1 TILT STOPPERTILT STOPPER
-
41951403-0540 SPRING PINSPRING PIN
-
42350-62437-0 BUSHING 8.2-10-26.5BUSHING 8.2-10-26.5
-
43350-62439-1 SETTING PLATESETTING PLATE
-
449101E3-5818 BOLTBOLT
-
453C8-62421-1 FRICTION SPRINGFRICTION SPRING
-
46346-62438-0 SETTING PIECESETTING PIECE
-
47398-62396-1 GROUND L=130
Drive Shaft Housing-Mount Bracket(L)GROUND L=130
Drive Shaft Housing-Mount Bracket(L) -
49398-62396-1 GROUND L=130
Clanp Bracket-Swivel BracketGROUND L=130
Clanp Bracket-Swivel Bracket -
50910103-5612 BOLTBOLT
-
513A3-62396-1 GROUND L=110
Swivel Bracket-Mount Bracket(L)GROUND L=110
Swivel Bracket-Mount Bracket(L) -
523G2-66311-1 REVERSE LOCK LEVERREVERSE LOCK LEVER
-
533AL-66333-0 REVERSE LOCK LEVER GRIPREVERSE LOCK LEVER GRIP
-
54346-66334-0 STOPPERSTOPPER
-
553R0-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
563AA-83719-0 WASHER 8.5-18-1.6WASHER 8.5-18-1.6
-
573AL-05254-0 SHOULDER BOLT 6-8SHOULDER BOLT 6-8
-
58940103-0800 WASHERWASHER
-
593AL-05212-0 BUSHING 8.1-20BUSHING 8.1-20
-
603G2-66351-0 REVERSE LOCK (R)REVERSE LOCK (R)
-
613G2-66313-1 REVERSE LOCK ARMREVERSE LOCK ARM
-
623G2-66319-1 REVERSE LOCK SHAFTREVERSE LOCK SHAFT
-
63945303-0600 E-RING d=6E-RING d=6
-
643G2-66321-0 REVERSE LOCK RODREVERSE LOCK ROD
-
65951503-0212 SPLIT PIN 2-12SPLIT PIN 2-12
-
663G2-66312-1 REVERSE LOCK LINKREVERSE LOCK LINK
-
67350-66315-0 REVERSE LOCK SPRINGREVERSE LOCK SPRING
-
683G2-66331-0 REVERSE LOCK SPRING (S)REVERSE LOCK SPRING (S)
-
69910103-0885 BOLT
OPTBOLT
OPT -
70930103-0800 NUT
OPTNUT
OPT -
71940103-0800 WASHER
OPTWASHER
OPT -
723V1Q62105-1 CLAMP SCREW KITCLAMP SCREW KIT
-
733V1Q62108-1 * CLAMP SCREW ASSY* CLAMP SCREW ASSY
-
743M3-62106-0 ** CLAMP SCREW** CLAMP SCREW
-
753RSQ62102-0 ** CLAMP SCREW HANDLE** CLAMP SCREW HANDLE
-
76951403-0622 ** SPRING PIN** SPRING PIN
-
77332-62101-1 * CLAMP SCREW PAD* CLAMP SCREW PAD
-
78945303-0600 * E-RING d=6* E-RING d=6
