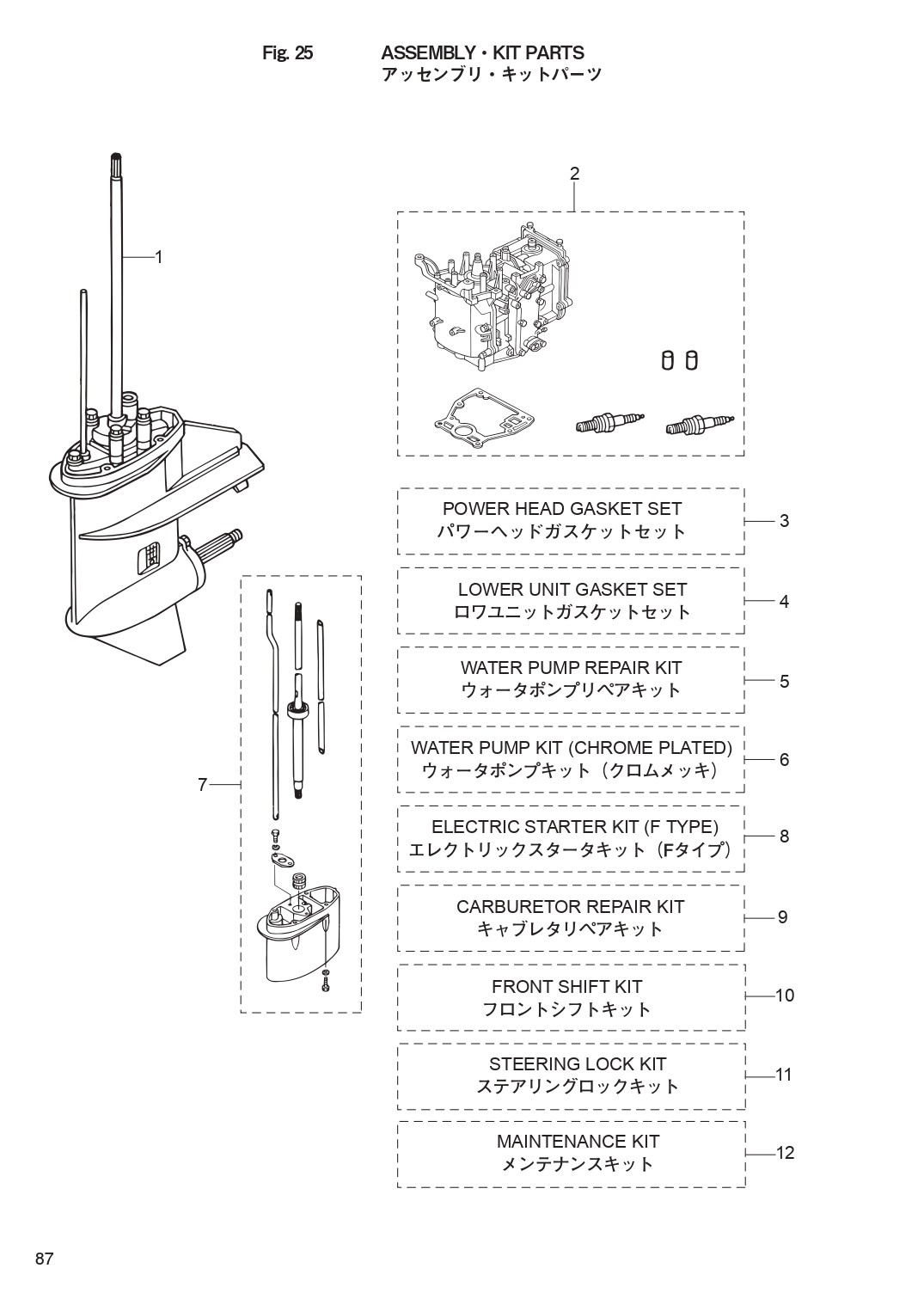

ASSEMBLY KIT PARTS для Tohatsu MFS6BZ - 2021 года выпуска
-
№АртикулНазвание
-
13V1Q87301-8 LOWER UNIT ASSY (S)
for Transom "S"LOWER UNIT ASSY (S)
for Transom "S" -
13V1Q87302-8 LOWER UNIT ASSY (L)
for Transom "L"LOWER UNIT ASSY (L)
for Transom "L" -
23FKB87090-5 ENGINE SHORT BLOCK KITENGINE SHORT BLOCK KIT
-
33V1-87121-0 POWER HEAD GASKET SETPOWER HEAD GASKET SET
-
33V1-01005-0 * CYLINDER HEAD GASKET* CYLINDER HEAD GASKET
-
33V1-01303-0 * ENGINE BASEMENT GASKET* ENGINE BASEMENT GASKET
-
33H8-07025-0 * OIL SEAL 18-35-8
Camshaft* OIL SEAL 18-35-8
Camshaft -
33V1-07653-0 * OIL PUMP GASKET* OIL PUMP GASKET
-
33V1-01024-0 * CYLINDER HEAD COVER GASKET* CYLINDER HEAD COVER GASKET
-
33R0-07422-0 * O-RING 3.1-24.4
Oil Filler Cap* O-RING 3.1-24.4
Oil Filler Cap -
33V1-00121-0 * OIL SEAL 30-45-8
Crankshaft* OIL SEAL 30-45-8
Crankshaft -
3346-01032-0 * THERMOSTAT CAP GASKET* THERMOSTAT CAP GASKET
-
33V1-02305-0 * EXHAUST COVER GASKET* EXHAUST COVER GASKET
-
33R3-01144-0 * GASKET
Anode Plug* GASKET
Anode Plug -
33V1-02104-0 * INTAKE MANIFOLD GASKET* INTAKE MANIFOLD GASKET
-
33V1-02011-0 * CARBURETOR GASKET* CARBURETOR GASKET
-
33V1-02012-0 * O-RING 2.4-35.2
Carburetor* O-RING 2.4-35.2
Carburetor -
33H6-07422-0 * O-RING 2.6-18.7
Fuel Pump* O-RING 2.6-18.7
Fuel Pump -
33B2-01215-0 * OIL SEAL 12-28-5
Drive Shaft* OIL SEAL 12-28-5
Drive Shaft -
43B2-87321-5 LOWER UNIT GASKET SETLOWER UNIT GASKET SET
-
43B2-61012-2 * DRIVE SHAFT HOUSING GASKET* DRIVE SHAFT HOUSING GASKET
-
43B2-02312-2 * EXHAUST PIPE GASKET* EXHAUST PIPE GASKET
-
4332-60006-1 * GASKET* GASKET
-
4345-65015-0 * O-RING 3.2-47
Propeller Shaft Housing* O-RING 3.2-47
Propeller Shaft Housing -
4369-60111-0 * OIL SEAL 15-28-10
Propeller Shaft* OIL SEAL 15-28-10
Propeller Shaft -
43B2-65029-2 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
4309-60111-0 * OIL SEAL 12-24-8
Pump Case Lower* OIL SEAL 12-24-8
Pump Case Lower -
43B2-65020-1 * PUMP CASE GASKET (LOWER)* PUMP CASE GASKET (LOWER)
-
4369-66021-1 * O-RING 2.5-4.9
Cam Rod Bushing* O-RING 2.5-4.9
Cam Rod Bushing -
4332-66032-0 * O-RING 2.4-15.4
Cam Rod Bushing* O-RING 2.4-15.4
Cam Rod Bushing -
43B2-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
53B2-87322-2 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
53B2-65021-1 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
53B2-65022-0 * KEY φ3-11* KEY φ3-11
-
53B2-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
53B2-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
53B2-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
53B2-65029-2 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
59161E3-0650 * BOLT* BOLT
-
5940103-0600 * WASHER* WASHER
-
53B2-65020-1 * PUMP CASE GASKET (LOWER)* PUMP CASE GASKET (LOWER)
-
63B2-65231-2 WATER PUMP KIT (CHROME PLATED)WATER PUMP KIT (CHROME PLATED)
-
63B2-65021-1 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
63B2-65238-0 * PUMP CASE LINER
Chrome Plated* PUMP CASE LINER
Chrome Plated -
63B2-65239-0 * WATER PUMP GUIDE PLATE
Chrome Plated* WATER PUMP GUIDE PLATE
Chrome Plated -
63B2-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
63B2-65029-2 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
73V1Q87314-5 EXTENSION HOUSING KIT (UL)
for Transom "L"⇒"UL"EXTENSION HOUSING KIT (UL)
for Transom "L"⇒"UL" -
73B2Q61110-2 * EXTENSION HOUSING* EXTENSION HOUSING
-
73V2-60001-0 * BOLT 6-35* BOLT 6-35
-
73B2-60003-1 * DRIVE SHAFT BUSHING (UL)* DRIVE SHAFT BUSHING (UL)
-
73V1-64332-0 * STOPPER* STOPPER
-
79101E3-5612 * BOLT* BOLT
-
73V1-64309-2 * DRIVE SHAFT ASSY (UL)* DRIVE SHAFT ASSY (UL)
-
73V1-66014-0 * CAM ROD (UL)* CAM ROD (UL)
-
73V1-65120-0 * WATER PIPE (UL)* WATER PIPE (UL)
-
83V2-76300-4 ELECTRIC STARTER KIT (F)
for MF⇒EFELECTRIC STARTER KIT (F)
for MF⇒EF -
83AA-06091-0 * FLYWHEEL W/GEAR* FLYWHEEL W/GEAR
-
83AA-06023-0 * ALTERNATOR ASSY* ALTERNATOR ASSY
-
8910103-5630 * BOLT* BOLT
-
83V1-06900-1 * ELECTRIC BRACKET ASSY* ELECTRIC BRACKET ASSY
-
83T5-06920-0 * RUBBER MOUNT 8.5-18-7* RUBBER MOUNT 8.5-18-7
-
83B7-06305-0 * RUBBER MOUNT 9-16-4.3* RUBBER MOUNT 9-16-4.3
-
83R0-66308-0 * WASHER 6-16-1.5* WASHER 6-16-1.5
-
83A0-76079-0 * COLLAR 6.2-9-7.4* COLLAR 6.2-9-7.4
-
89101E3-0620 * BOLT* BOLT
-
83AA-76010-0 * STARTER MOTOR ASSY* STARTER MOTOR ASSY
-
83V1-76011-1 * STARTER MOTOR BRACKET* STARTER MOTOR BRACKET
-
89161F4-0830 * BOLT* BOLT
-
8940103-0800 * WASHER* WASHER
-
83H8-76040-0 * STARTER SOLENOID* STARTER SOLENOID
-
83AA-76065-0 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
8910103-5616 * BOLT* BOLT
-
8398-76080-1 * NEUTRAL SWITCH* NEUTRAL SWITCH
-
8398-76083-0 * NEUTRAL SWITCH ACTUATOR* NEUTRAL SWITCH ACTUATOR
-
83AA-76026-0 * MAIN SWITCH ASSY* MAIN SWITCH ASSY
-
83AC-76120-0 * BATTERY CABLE L=2500* BATTERY CABLE L=2500
-
8910103-5610 * BOLT* BOLT
-
83AA-76145-0 * TERMINAL CAP 13-13-28* TERMINAL CAP 13-13-28
-
83B2-76147-2 * STARTER CABLE L=200* STARTER CABLE L=200
-
83V1-76148-0 * SPIRAL TUBE PROTECTOR φ10-100* SPIRAL TUBE PROTECTOR φ10-100
-
83Y0-76145-0 * TERMINAL CAP 8-18-28* TERMINAL CAP 8-18-28
-
83Y1-76145-0 * TERMINAL CAP 8-13-28* TERMINAL CAP 8-13-28
-
83V1-76066-0 * FUSE WIRE ASSY L=185* FUSE WIRE ASSY L=185
-
83R0-76064-0 * FUSE HOLDER BRACKET* FUSE HOLDER BRACKET
-
83V1-06284-1 * CABLE TERMINAL HOLDER STAY* CABLE TERMINAL HOLDER STAY
-
83AA-06281-1 * CABLE TERMINAL HOLDER* CABLE TERMINAL HOLDER
-
8174-35012-0 * COLLAR 6-8-6* COLLAR 6-8-6
-
8910103-5612 * BOLT* BOLT
-
8910103-5616 * BOLT* BOLT
-
83AA-06902-1 * COVER* COVER
-
93V1-87122-0 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
93V1-03121-0 * FLOAT CHAMBER GASKET* FLOAT CHAMBER GASKET
-
9922503-6412 * SCREW* SCREW
-
93C8-03125-0 * FLOAT* FLOAT
-
93C8-03126-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
9921703-0406 * SCREW* SCREW
-
93V1-03147-1 * FLOAT VALVE* FLOAT VALVE
-
93V1-03116-0 * O-RING* O-RING
-
93V1-03182-0 * CARBURETOR COVER GASKET* CARBURETOR COVER GASKET
-
9922503-6410 * SCREW* SCREW
-
93V1-03193-0 * GASKET* GASKET
-
103V1Q80404-0 FRONT SHIFT KIT
for MF/EF/EFT TypeFRONT SHIFT KIT
for MF/EF/EFT Type -
103Y3-66110-0 * SHIFT LEVER* SHIFT LEVER
-
109101E3-0625 * BOLT* BOLT
-
103H6-63619-1 * COLLAR 6.5-10.5-10* COLLAR 6.5-10.5-10
-
10346-67115-0 * WASHER 6.5-21-1* WASHER 6.5-21-1
-
103Y3Q67480-0 * SHIFT LEVER BRACKET* SHIFT LEVER BRACKET
-
109101E3-5625 * BOLT* BOLT
-
109301E3-0600 * NUT* NUT
-
103Y3-66134-0 * SHIFT LEVER ROD* SHIFT LEVER ROD
-
103R0-83715-0 * CABLE JOINT 4.5-40.5* CABLE JOINT 4.5-40.5
-
10930103-0500 * NUT* NUT
-
103AA-83719-0 * WASHER 8.5-18-1.6* WASHER 8.5-18-1.6
-
10951603-0800 * SNAP PIN d=8* SNAP PIN d=8
-
103AA-66135-1 * SHIFT LEVER SHAFT* SHIFT LEVER SHAFT
-
103Y3-63621-0 * GROMMET* GROMMET
-
103Y3-67192-0 * CHOKE ROD* CHOKE ROD
-
103Y3-67578-1 * SHIFT DECAL* SHIFT DECAL
-
113V1-62500-1 STEERING LOCK KIT
for EP/EPT TypeSTEERING LOCK KIT
for EP/EPT Type -
113V1-62510-0 * STEERING LOCK PLATE* STEERING LOCK PLATE
-
113Z0-61334-0 * WASHER 8.5-34-3* WASHER 8.5-34-3
-
113Y3-60108-0 * PRE-COATED BOLT 6-12* PRE-COATED BOLT 6-12
-
113Y4-60108-0 * PRE-COATED BOLT 8-20* PRE-COATED BOLT 8-20
-
11346-62127-0 * CAP NUT* CAP NUT
-
123V1-87500-0 MAINTENANCE KIT FOR MFS 8/9.8A3/BMAINTENANCE KIT FOR MFS 8/9.8A3/B
-
12332-60006-1 * GASKET* GASKET
-
12369-02230-1 * FUEL FILTER ASSY* FUEL FILTER ASSY
-
12369-60218-1 * ANODE* ANODE
-
123B2-65011-0 * PUMP CASE LINER* PUMP CASE LINER
