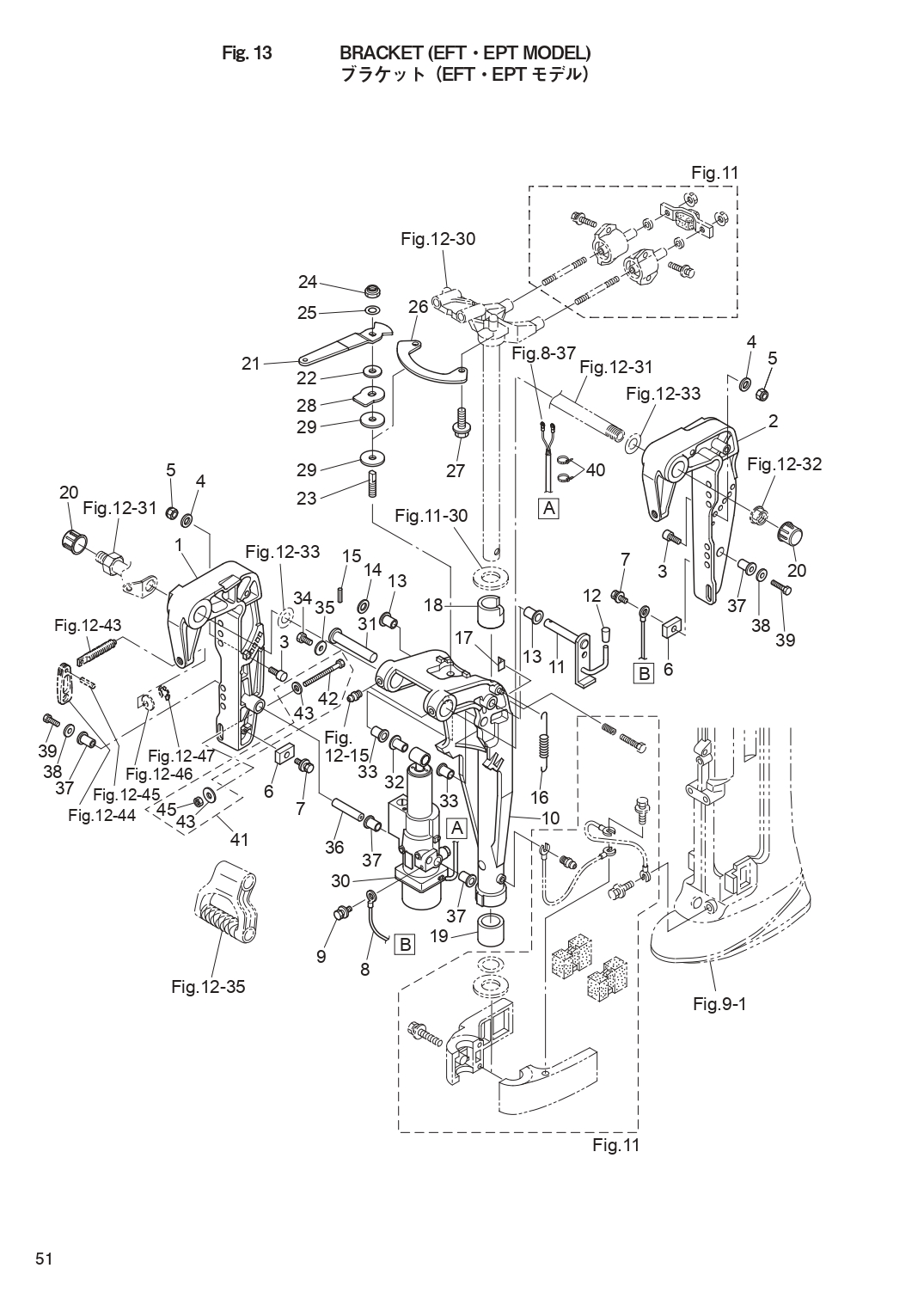

BRACKET (EFT EPT MODEL) для Tohatsu MFS9.8B - 2021 года выпуска
-
№АртикулНазвание
-
13Z0Q77211-2 CLAMP BRACKET (PTT-R)
Starboard SideCLAMP BRACKET (PTT-R)
Starboard Side -
23Z0Q77212-0 CLAMP BRACKET (PTT-L)
Port SideCLAMP BRACKET (PTT-L)
Port Side -
33Z0-77115-0 TRIM LOCK PINTRIM LOCK PIN
-
43P0-66233-0 WASHER 8.1-16-1.5WASHER 8.1-16-1.5
-
53V5-62442-0 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
63H6-60218-0 ANODEANODE
-
7910103-5616 BOLTBOLT
-
8398-62396-1 GROUND L=130
PT Assy-Cramp BracketGROUND L=130
PT Assy-Cramp Bracket -
9910103-5612 BOLTBOLT
-
103V1Q77208-0 SWIVEL BRACKET ASSYSWIVEL BRACKET ASSY
-
113Z0-62476-2 TILT STOPPERTILT STOPPER
-
12369-62433-1 TILT STOPPER GRIPTILT STOPPER GRIP
-
13353-63207-0 COLLAR 10.2-12-12COLLAR 10.2-12-12
-
14940103-1000 WASHERWASHER
-
15951403-3516 SPRING PIN 3.5-16SPRING PIN 3.5-16
-
163R0-62473-0 TILT STOPPER SPRINGTILT STOPPER SPRING
-
173Z0-63035-0 FRICTION PIECEFRICTION PIECE
-
183Z0-62417-0 BUSHING 24-30-30BUSHING 24-30-30
-
19350-62417-0 BUSHING 24-30-30BUSHING 24-30-30
-
20346-62127-0 CAP NUT
for EFT TypeCAP NUT
for EFT Type -
213AA-62441-0 FRICTION LEVER
for EFT TypeFRICTION LEVER
for EFT Type -
223R3-62443-0 WASHER 8.1-20-0.8
for EFT TypeWASHER 8.1-20-0.8
for EFT Type -
233R3-62445-0 BOLT M8 P1.25
for EFT TypeBOLT M8 P1.25
for EFT Type -
24930403-0800 NYLON NUT 8-P1.25
for EFT TypeNYLON NUT 8-P1.25
for EFT Type -
25940103-0800 WASHERWASHER
-
263AA-62447-0 PLATE
for EFT TypePLATE
for EFT Type -
279101E3-5616 BOLT
for EFT TypeBOLT
for EFT Type -
283R3-62448-1 WASHER 8.5-38-3
for EFT TypeWASHER 8.5-38-3
for EFT Type -
293R3-62449-0 DISC 8.5-38-2
for EFT TypeDISC 8.5-38-2
for EFT Type -
303Z0Q77151-1 PT ASSY
see Fig.14PT ASSY
see Fig.14 -
313KY-77071-0 CYLINDER PIN (UPPER)CYLINDER PIN (UPPER)
-
323Z0-77076-0 BUSHING 13-16-31BUSHING 13-16-31
-
333R0-77076-0 BUSHING 13-17-19.5 13-17-19.5BUSHING 13-17-19.5 13-17-19.5
-
349101E3-0612 BOLTBOLT
-
35345-05122-1 WASHER 6.5-23-1.5WASHER 6.5-23-1.5
-
363Z0-77101-1 CYLINDER PIN (LOWER)CYLINDER PIN (LOWER)
-
373Z0-77076-0 BUSHING 13-16-31BUSHING 13-16-31
-
38307-62116-1 WASHER 8.5-28-1WASHER 8.5-28-1
-
39910103-0820 BOLTBOLT
-
403Z0-84398-0 BAND 203BAND 203
-
413UA-72120-0 RIGGING BOLT SETRIGGING BOLT SET
-
429101E3-0885 * BOLT
EFT Type 2pc* BOLT
EFT Type 2pc -
439401E3-0800 * WASHER
EFT Type 4pc* WASHER
EFT Type 4pc -
459301E3-0800 * NUT
EFT Type 2pc* NUT
EFT Type 2pc
