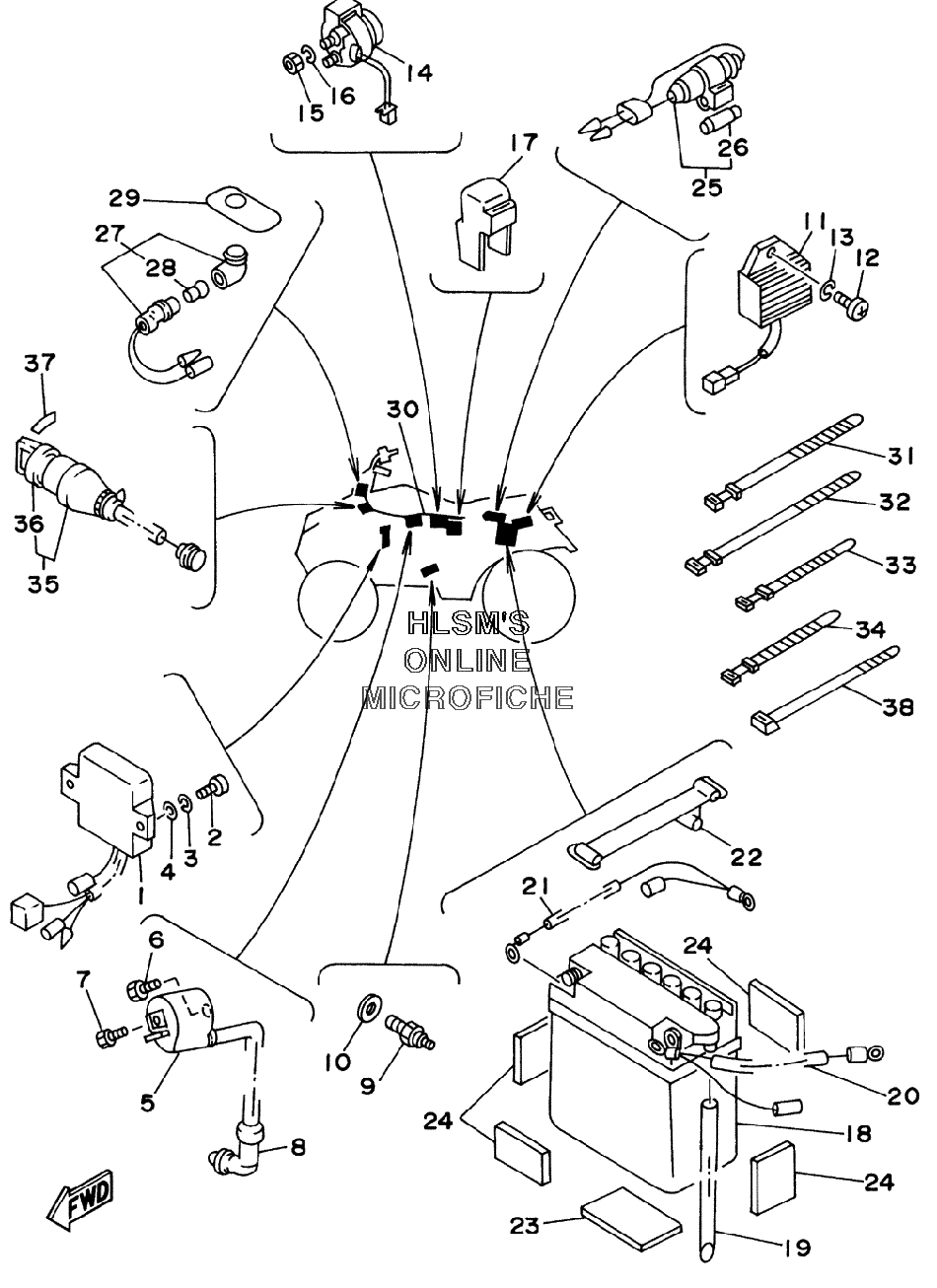

ELECTRICAL для Yamaha BADGER YFM80M (4EMT) - 2000 года выпуска
-
№АртикулНазвание
-
14EM-85540-10-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
298507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
54KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
697007-06016-00 BOLTBOLT
-
790153-06034-00 SCREW, HEXAGONSCREW, HEXAGON
-
855X-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
93GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1090430-10148-00 GASKETGASKET
-
113GB-81960-10-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1298507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
144KD-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1595307-06700-00 NUTNUT
-
1692907-06100-00 WASHER, SPRINGWASHER, SPRING
-
171RL-81950-92-00 RELAY ASSYRELAY ASSY
-
1855X-82110-61-00 BATTERY ASSYBATTERY ASSY
-
1990445-085E0-00 HOSEHOSE
-
2055X-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
213GB-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
224J2-82131-01-00 BAND, BATTERYBAND, BATTERY
-
2355X-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
2429W-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
253GB-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
263GB-82151-00-00 ...FUSE (5A)...FUSE (5A)
-
2724W-83530-01-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
28123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
294EM-83585-10-00 LABELLABEL
-
304EM-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
313TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3225G-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
33366-82591-00-00 BANDBAND
-
34437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
354GB-82510-10-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
363HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
3729U-83585-10-00 LABELLABEL
-
3890465-10098-00 CLAMPCLAMP
