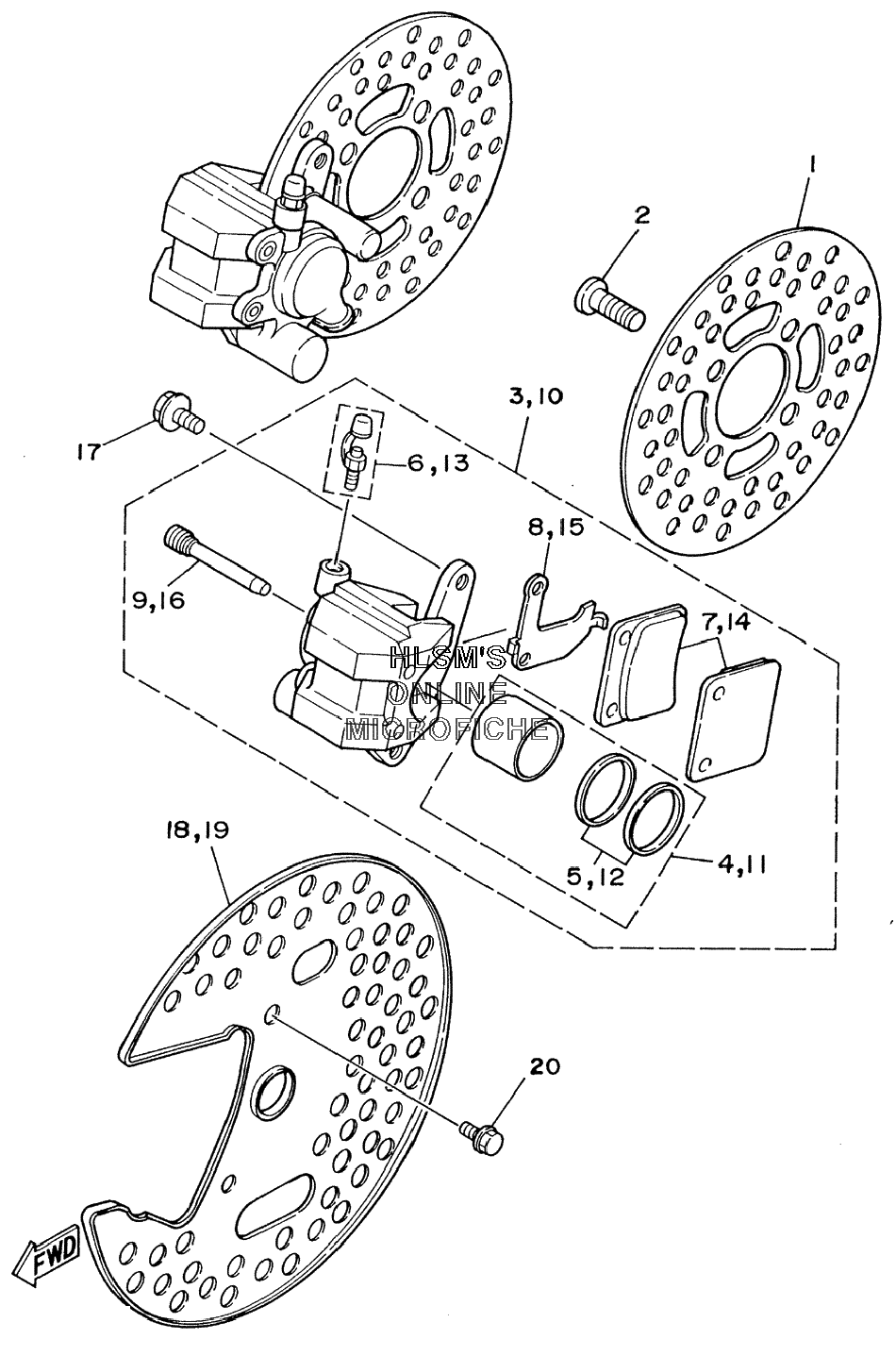

BRAKE - FRONT CALIPER для Yamaha BANSHEE YFZ350M (5FK6) - 2000 года выпуска
-
№АртикулНазвание
-
13GD-2582T-00-00 DISC, BRAKEDISC, BRAKE
-
290149-08268-00 SCREWSCREW
-
33GD-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43GD-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
61UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
73GD-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
83GD-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
93GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
103GD-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
113GD-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
123GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
131UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
143GD-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
153GD-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
163GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
1790105-08538-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
183GD-2514A-10-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
193GD-2515A-10-00 RING, WHEEL 2 (RIGHT)RING, WHEEL 2 (RIGHT)
-
2095807-06010-00 BOLT, FLANGEBOLT, FLANGE
