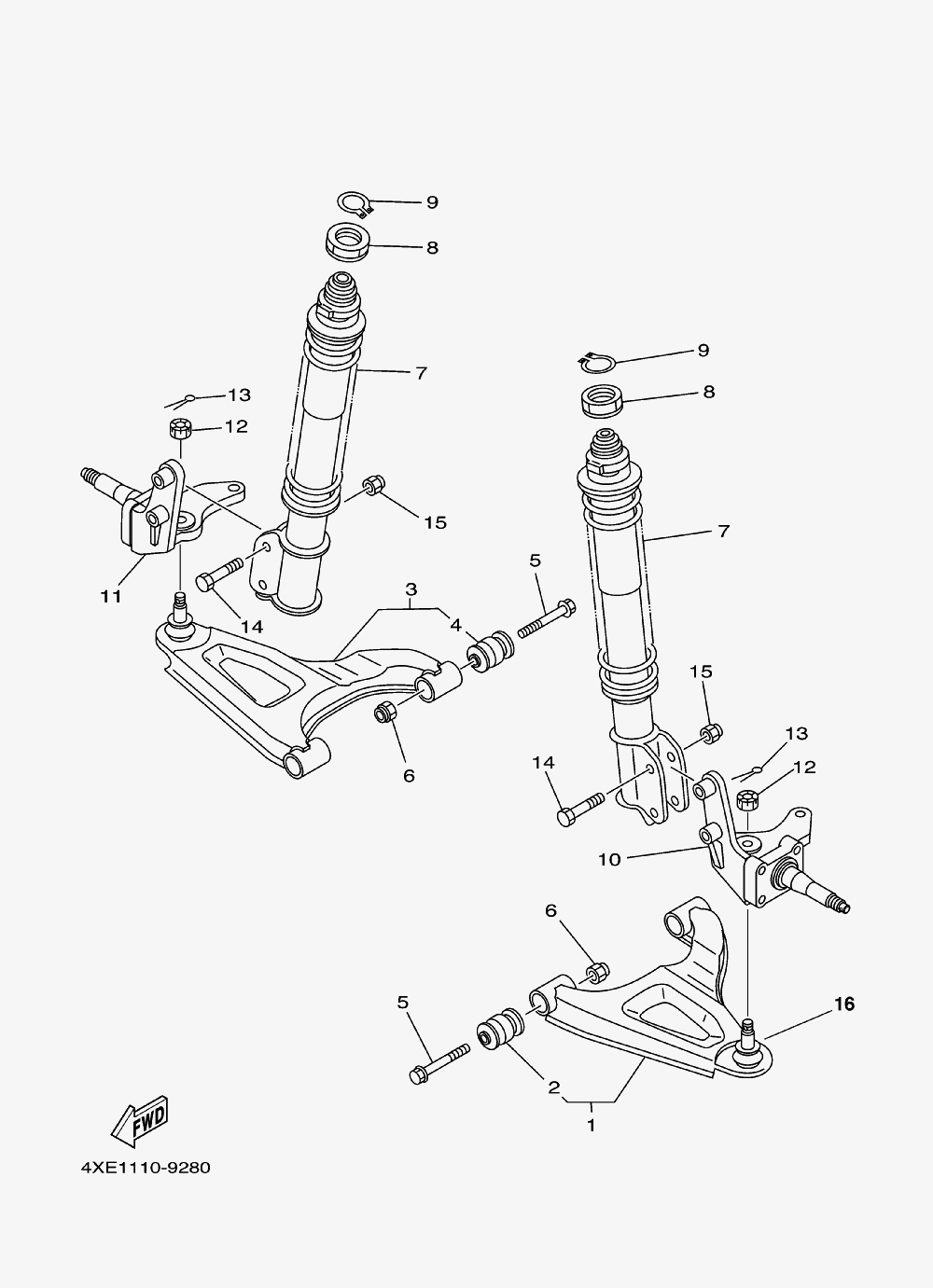

SUSPENSION - FRONT WHEEL для Yamaha BEARTRACKER 2WD YFM250MC CALIFORNIA (4XE6) - 2000 года выпуска
-
№АртикулНазвание
-
14XE-F3570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
22HR-23526-00-00 ...BUSH...BUSH
-
34XE-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
42HR-23526-00-00 ...BUSH...BUSH
-
590105-10890-00 BOLT, FLANGEBOLT, FLANGE
-
690185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
74XE-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
890179-35625-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
993410-32826-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
104XE-F3501-00-00 STEERING, KNUCKLE ASSY (LEFT)STEERING, KNUCKLE ASSY (LEFT)
-
114XE-F3502-00-00 STEERING, KNUCKLE ASSY (RIGHT)STEERING, KNUCKLE ASSY (RIGHT)
-
1290171-12816-00 NUT, CASTLENUT, CASTLE
-
1391401-25020-00 PIN, COTTERPIN, COTTER
-
1490101-12882-00 BOLTBOLT
-
159561P-12100-00 NUTNUT
