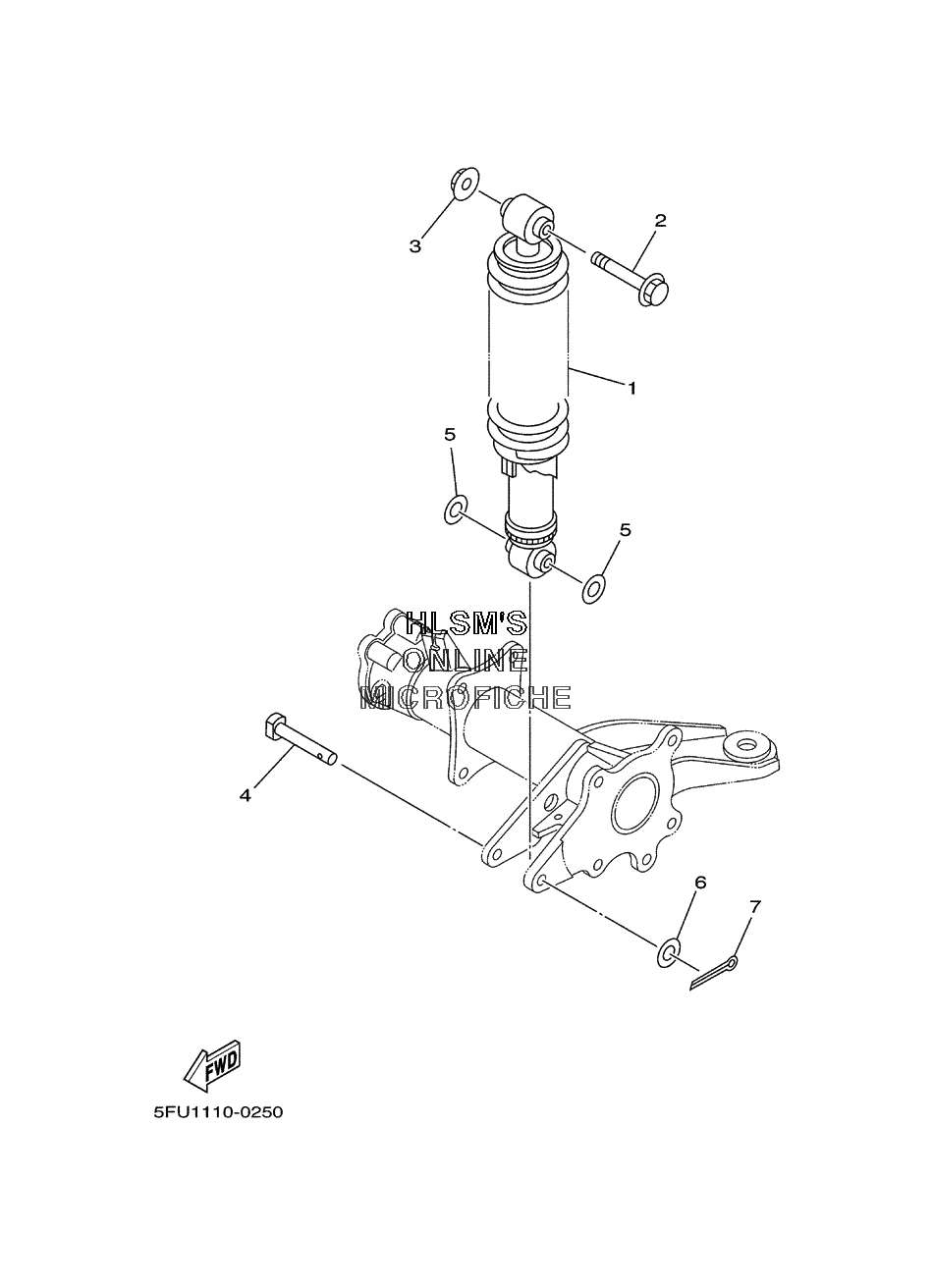

SUSPENSION - REAR SHOCK ABSORBER для Yamaha BIG BEAR 4WD YFM400FWNMC CALIFORNIA (5FU2) - 2000 года выпуска
-
№АртикулНазвание
-
15FU-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-12889-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490240-12092-00 PIN, CLEVISPIN, CLEVIS
-
51W1-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
690201-127J6-00 WASHER, PLATEWASHER, PLATE
-
791401-30025-00 PIN, COTTERPIN, COTTER
