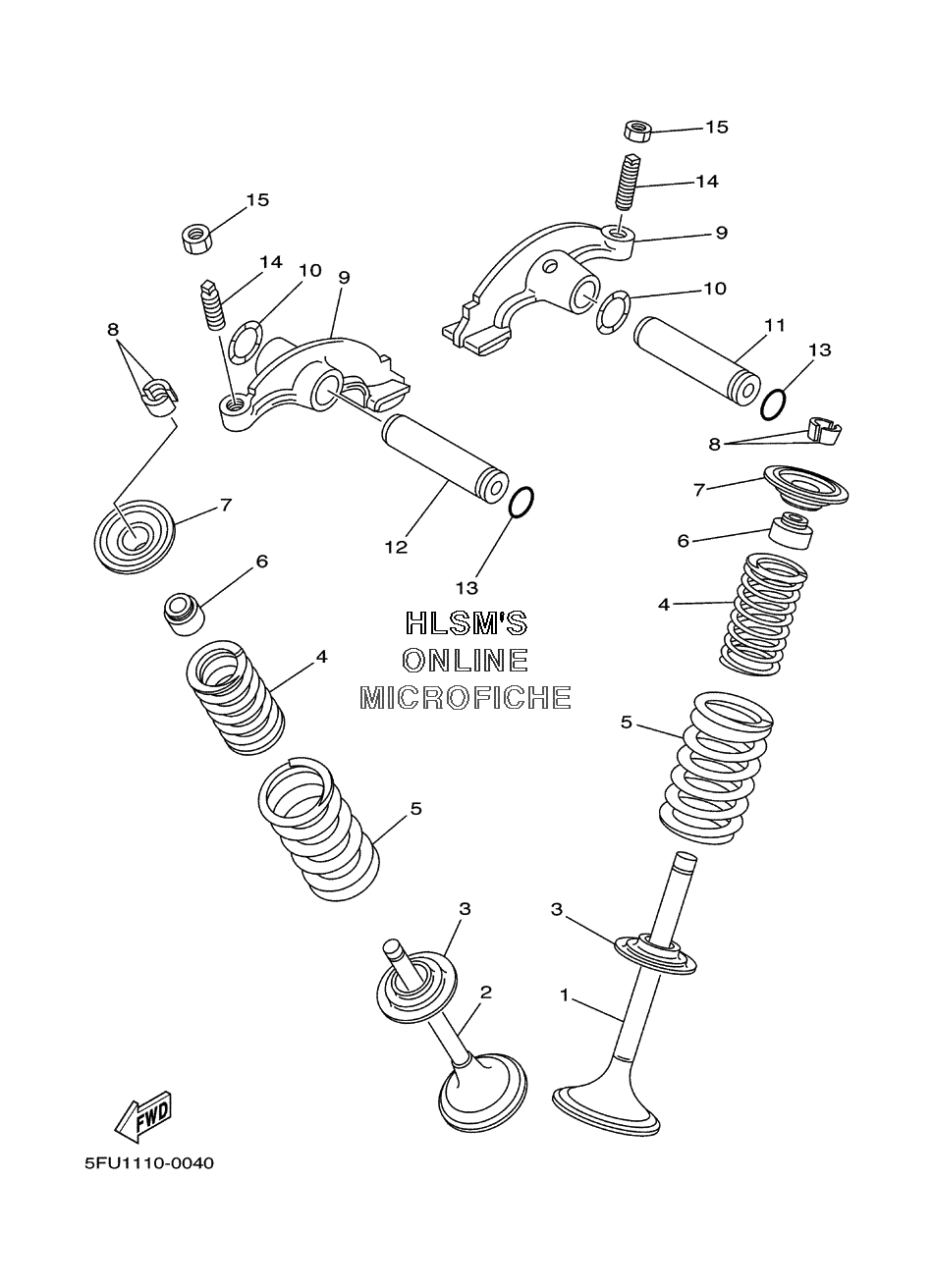

VALVE ASSY для Yamaha BIG BEAR BUCKMASTER 4WD YFM400FWNHM (5FU5) - 2000 года выпуска
-
№АртикулНазвание
-
11UY-12111-01-00 VALVE, INTAKEVALVE, INTAKE
-
21UY-12121-01-00 VALVE, EXHAUSTVALVE, EXHAUST
-
33Y1-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
422U-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
51UY-12114-01-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
6M01-12129-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
73Y1-12117-01-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
81J7-12118-00-00 COTTER, VALVECOTTER, VALVE
-
93GD-12151-10-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
1090206-12001-00 WASHER, WAVEWASHER, WAVE
-
115FU-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
123Y1-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
1393210-09165-00 O-RINGO-RING
-
1431G-12159-02-00 SCREW, VALVE ADJSCREW, VALVE ADJ
-
1531G-12158-00-00 NUT, LOCKNUT, LOCK
