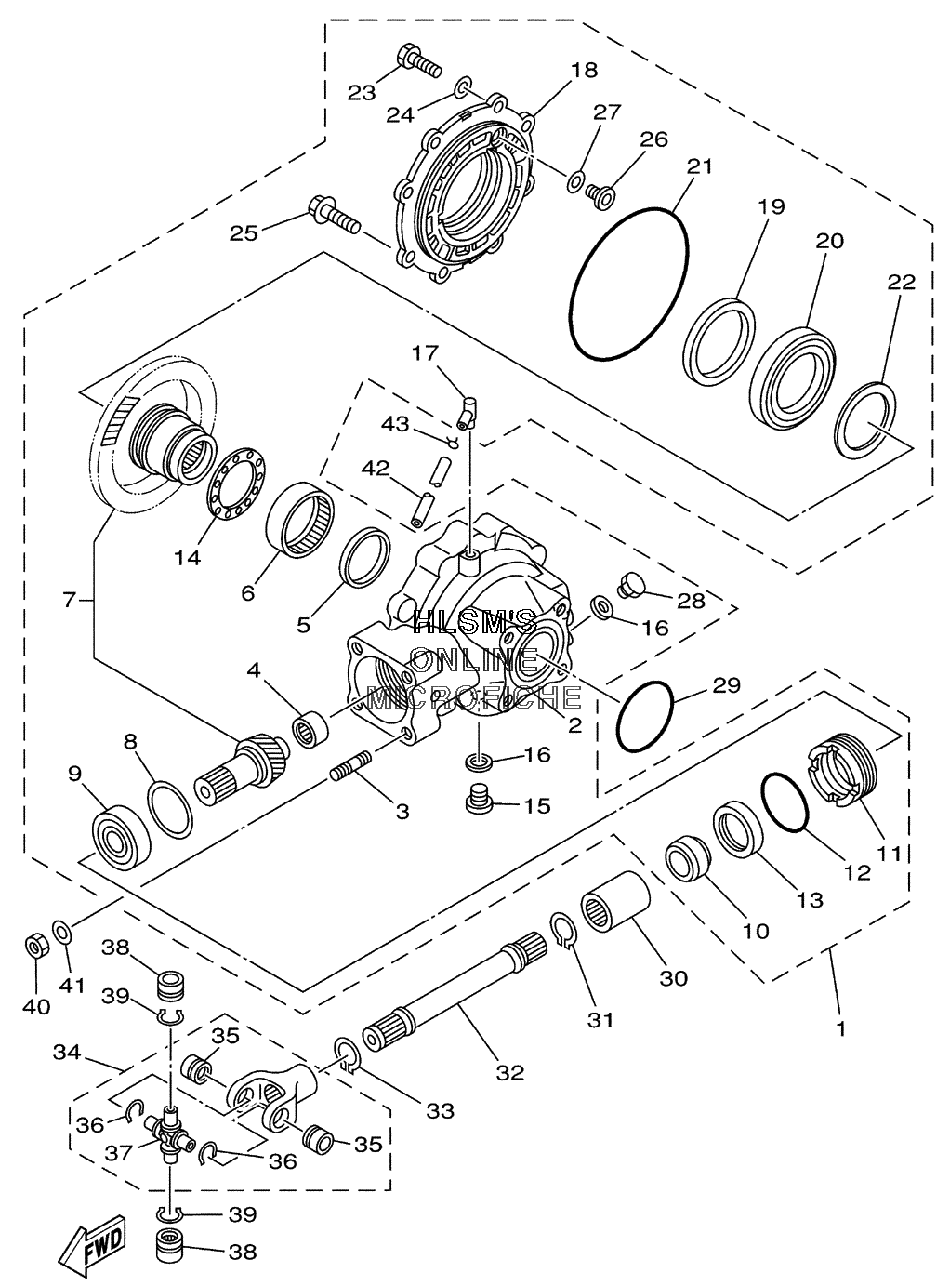

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha KODIAK 4WD AUTOMATIC YFM400FAMC CALIFORNIA (5GH2) - 2000 года выпуска
-
№АртикулНазвание
-
15GH-46101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
24WV-46151-00-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
390116-10593-00 ...BOLT, STUD...BOLT, STUD
-
42H7-46102-00-00 ...BEARING ASSY...BEARING ASSY
-
593101-52116-00 ...OIL SEAL...OIL SEAL
-
693317-85569-00 ...BEARING...BEARING
-
75GT-Y4612-00-00 ...RING GEAR SET...RING GEAR SET
-
81J7-17537-Y0-30 ...SHIM, THRUST (0.30T) (OPT)...SHIM, THRUST (0.30T) (OPT)
-
81J7-17537-Y0-40 ...SHIM, THRUST (0.40T) (OPT)...SHIM, THRUST (0.40T) (OPT)
-
81J7-17537-Y0-50 ...SHIM, THRUST (0.50T) (OPT)...SHIM, THRUST (0.50T) (OPT)
-
993306-30568-00 ...BEARING...BEARING
-
1090387-255H9-00 ...COLLAR...COLLAR
-
1129U-46125-00-00 ...RETAINER, BEARING...RETAINER, BEARING
-
1293210-59531-00 ...O-RING...O-RING
-
1393101-38098-00 ...OIL SEAL...OIL SEAL
-
1424W-46118-00-12 ...WASHER, THRUST (1.2T) (OPT)...WASHER, THRUST (1.2T) (OPT)
-
1424W-46118-00-14 ...WASHER, THRUST (1.4T) (OPT)...WASHER, THRUST (1.4T) (OPT)
-
1424W-46118-00-16 ...WASHER, THRUST (1.6T) (OPT)...WASHER, THRUST (1.6T) (OPT)
-
1424W-46118-00-18 ...WASHER, THRUST (1.8T) (OPT)...WASHER, THRUST (1.8T) (OPT)
-
1424W-46118-00-20 ...WASHER, THRUST (2.0T) (OPT)...WASHER, THRUST (2.0T) (OPT)
-
1590340-14046-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
16214-11198-01-00 ...GASKET...GASKET
-
172N4-15371-00-00 ...BREATHER...BREATHER
-
185GH-46152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
1993102-65386-00 ...OIL SEAL...OIL SEAL
-
2093316-01301-00 ...BEARING...BEARING
-
2193211-51749-00 ...O-RING...O-RING
-
2224W-46117-00-25 ...SHIM, RING GEAR (0.25T) (OPT)...SHIM, RING GEAR (0.25T) (OPT)
-
2224W-46117-00-30 ...SHIM, RING GEAR (0.30T) (OPT)...SHIM, RING GEAR (0.30T) (OPT)
-
2224W-46117-00-40 ...SHIM, RING GEAR (0.40T) (OPT)...SHIM, RING GEAR (0.40T) (OPT)
-
2224W-46117-00-50 ...SHIM, RING GEAR (0.50T) (OPT)...SHIM, RING GEAR (0.50T) (OPT)
-
2397027-08025-00 ...BOLT...BOLT
-
2492907-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
2595817-10025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
261FK-46156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
271FK-46157-00-15 ...SHIM, STOPPER (T=0.15) (OPT)...SHIM, STOPPER (T=0.15) (OPT)
-
271FK-46157-00-20 ...SHIM, STOPPER (T=0.20) (OPT)...SHIM, STOPPER (T=0.20) (OPT)
-
2890340-14029-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
2993210-65705-00 O-RINGO-RING
-
305GT-46123-00-00 COUPLING, GEARCOUPLING, GEAR
-
3199009-24400-00 CIRCLIPCIRCLIP
-
325GH-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3393410-22039-00 CIRCLIPCIRCLIP
-
343HN-46108-00-00 CROSS JOINT COMP.3CROSS JOINT COMP.3
-
3593399-99926-00 ...BEARING...BEARING
-
3693440-20088-00 ...CIRCLIP...CIRCLIP
-
372HR-46187-00-00 ...SPIDER...SPIDER
-
3893399-99926-00 BEARINGBEARING
-
3993440-20088-00 CIRCLIPCIRCLIP
-
4090179-10394-00 NUTNUT
-
4190201-10774-00 WASHER, PLATEWASHER, PLATE
-
4290445-072J4-00 HOSEHOSE
-
4390467-07029-00 CLIPCLIP
