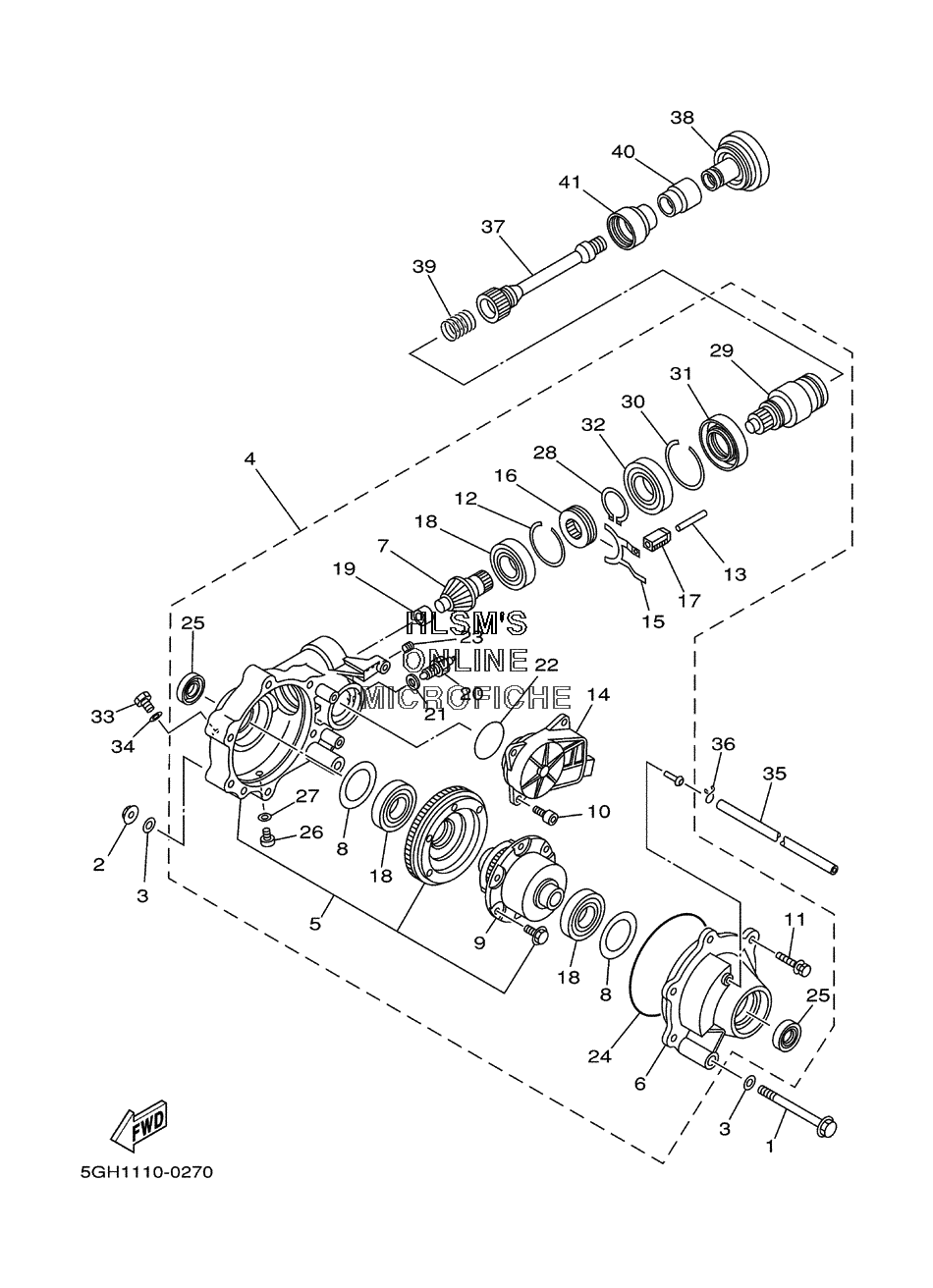

DIFFERENTIAL - FRONT для Yamaha KODIAK 4WD REALTREE X-TRA YFM400FAHMC CALIFORNIA (5GH7) - 2000 года выпуска
-
№АртикулНазвание
-
190105-10051-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
390201-101J1-00 WASHER, PLATEWASHER, PLATE
-
45GH-46160-00-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
55GH-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
65GH-46162-00-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
75GH-46141-00-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
84WV-46119-00-00 ...SHIM, THRUST (0.1T) (OPT)...SHIM, THRUST (0.1T) (OPT)
-
84WV-46119-10-00 ...SHIM, THRUST (0.2T) (OPT)...SHIM, THRUST (0.2T) (OPT)
-
84WV-46119-20-00 ...SHIM, THRUST (0.3T) (OPT)...SHIM, THRUST (0.3T) (OPT)
-
84WV-46119-30-00 ...SHIM, THRUST (0.4T) (OPT)...SHIM, THRUST (0.4T) (OPT)
-
84WV-46119-40-00 ...SHIM, THRUST (0.5T) (OPT)...SHIM, THRUST (0.5T) (OPT)
-
84WV-46119-50-00 ...SHIM, THRUST (1.0T) (OPT)...SHIM, THRUST (1.0T) (OPT)
-
84WV-46119-60-00 ...SHIM, THRUST (1.5T) (OPT)...SHIM, THRUST (1.5T) (OPT)
-
84WV-46119-70-00 ...SHIM, THRUST (2.0T) (OPT)...SHIM, THRUST (2.0T) (OPT)
-
84WV-46119-80-00 ...SHIM, THRUST (2.5T) (OPT)...SHIM, THRUST (2.5T) (OPT)
-
95GH-46470-00-00 ...LIMITED SLIP DIFF. ASSY...LIMITED SLIP DIFF. ASSY
-
1091317-08020-00 ...BOLT...BOLT
-
114WV-46159-00-00 ...BOLT 3...BOLT 3
-
124WV-46143-00-00 ...RING,HOLE SNAP 2...RING,HOLE SNAP 2
-
135GH-18318-00-00 ...SHAFT, SHIFTER...SHAFT, SHIFTER
-
145GH-4616A-00-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
155GH-18514-00-00 ...FORK, SHIFT 4...FORK, SHIFT 4
-
164WV-46441-00-00 ...CLUTCH,DRIVEN...CLUTCH,DRIVEN
-
175GH-18319-00-00 ...SHAFT 2...SHAFT 2
-
184WV-46165-00-00 ...BEARING 2...BEARING 2
-
194WV-46167-00-00 ...BEARING 4...BEARING 4
-
203GD-82540-11-00 ...NEUTRAL SWITCH ASSY...NEUTRAL SWITCH ASSY
-
214WV-46132-00-00 ...GASKET 1...GASKET 1
-
2293210-50768-00 ...O-RING...O-RING
-
2390113-08004-00 ...BOLT, SET...BOLT, SET
-
2493211-40040-00 ...O-RING...O-RING
-
2593210-24034-00 ...O-RING...O-RING
-
2690340-10001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
2790430-10003-00 ...GASKET...GASKET
-
2893450-44141-00 ...CIRCLIP...CIRCLIP
-
295GH-46126-00-00 ...COUPLING...COUPLING
-
3093450-71142-00 ...CIRCLIP...CIRCLIP
-
3193102-50030-00 ...OIL SEAL...OIL SEAL
-
3293316-00801-00 ...BEARING...BEARING
-
3390340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
34214-11198-01-00 GASKETGASKET
-
3590445-07246-00 HOSEHOSE
-
3690467-07029-00 CLIPCLIP
-
375GH-46173-00-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
385GH-46123-00-00 COUPLING, GEARCOUPLING, GEAR
-
3990501-296L7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
405GH-46136-00-00 SEAL 1SEAL 1
-
415GH-46137-00-00 SEAL 2SEAL 2
