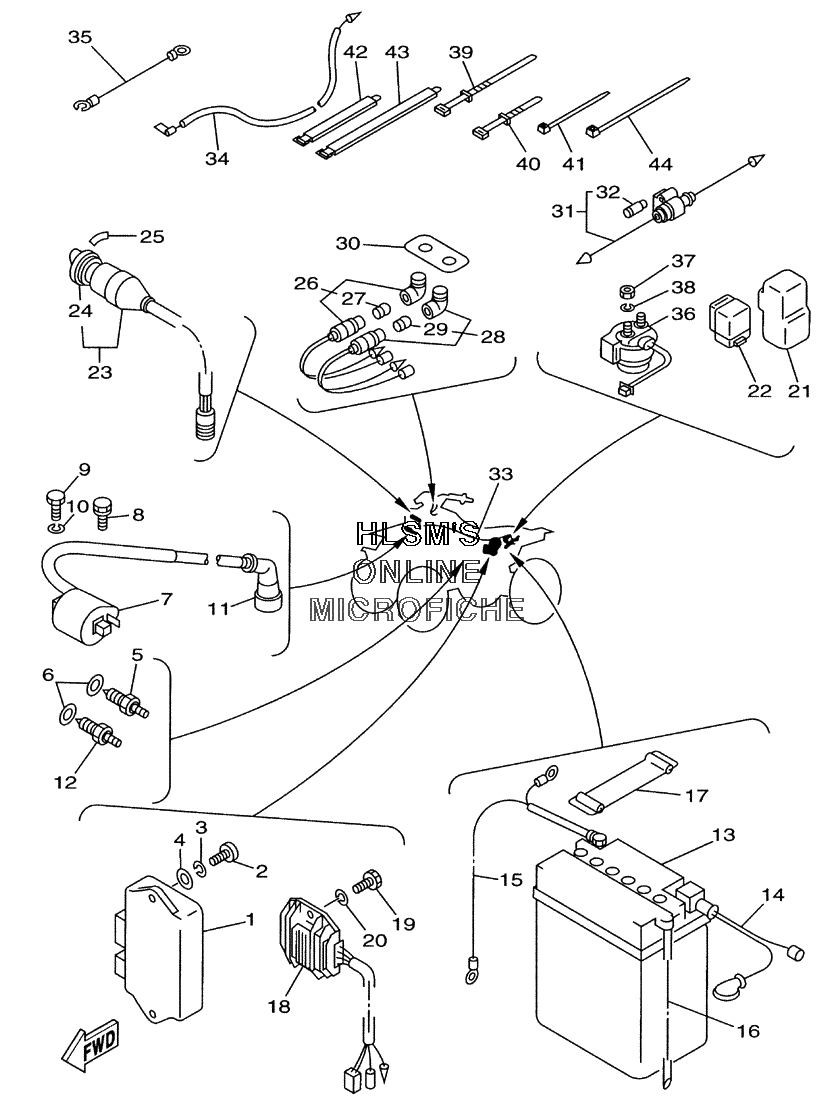

ELECTRICAL для Yamaha WARRIOR YFM350XM CALIFORNIA (3GDV) - 2000 года выпуска
-
№АртикулНазвание
-
13GD-85540-40-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
298507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
53GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
690430-10148-00 GASKETGASKET
-
73GD-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
890109-06723-00 BOLTBOLT
-
997007-06020-00 BOLTBOLT
-
1092907-06100-00 WASHER, SPRINGWASHER, SPRING
-
111UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
123GD-82540-11-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
131UY-82110-61-00 BATTERY ASSYBATTERY ASSY
-
141UY-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
153GD-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
1690445-08048-00 HOSEHOSE
-
17337-82131-00-00 BAND, BATTERYBAND, BATTERY
-
184KB-81960-02-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1997007-06020-00 BOLTBOLT
-
2092907-06600-00 WASHER, PLATEWASHER, PLATE
-
2129U-81950-93-00 RELAY ASSYRELAY ASSY
-
223GD-81950-01-00 RELAY ASSYRELAY ASSY
-
234GB-82510-10-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
243HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
2529U-83585-10-00 LABELLABEL
-
2624W-83530-01-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
27123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
2852G-83530-01-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
29123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
301UY-83585-00-00 LABELLABEL
-
311UY-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
321E6-82151-00-00 ...FUSE (10A)...FUSE (10A)
-
333GD-82590-40-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
343HN-82541-00-00 WIRE, LEADWIRE, LEAD
-
353GD-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
364KD-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
3795307-06700-00 NUTNUT
-
3892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
39437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
40437-83936-11-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4190465-10098-00 CLAMPCLAMP
-
42366-82591-00-00 BANDBAND
-
43435-13474-00-00 BANDBAND
-
4490464-16061-00 CLAMPCLAMP
