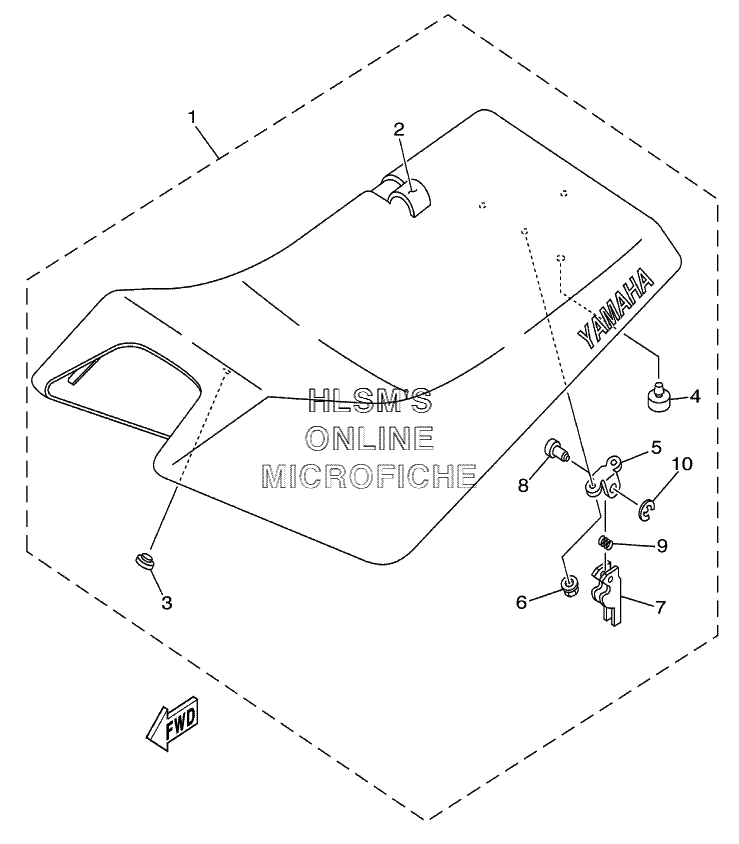

SEAT для Yamaha BADGER YFM80N (4EMX) - 2001 года выпуска

№

Артикул

Название
1

4EM-24710-50-00 SINGLE SEAT ASSY (OKO) (PASTEL DEEP GREEN)

SINGLE SEAT ASSY (OKO) (PASTEL DEEP GREEN)

0 ₽
1

4EM-24710-60-00 SINGLE SEAT ASSY (583) (DEEP PURPLISH BLUE SOLID E)

SINGLE SEAT ASSY (583) (DEEP PURPLISH BLUE SOLID E)

0 ₽
2

4EM-24731-50-00 ...COVER, SEAT (OKO) (PASTEL DEEP GREEN)

...COVER, SEAT (OKO) (PASTEL DEEP GREEN)

0 ₽
2

4EM-24731-60-00 ...COVER, SEAT (583) (DEEP PURPLISH BLUE SOLID E)

...COVER, SEAT (583) (DEEP PURPLISH BLUE SOLID E)

0 ₽
3

3L7-24724-00-00 ...DAMPER, SEAT

...DAMPER, SEAT

340 ₽
4

371-27114-00-00 ...STOPPER, MAIN STAND

...STOPPER, MAIN STAND

650 ₽
5

4K0-24775-00-00 ...BRACKET, SEAT LEVER

...BRACKET, SEAT LEVER

720 ₽
6

95707-06500-00 ...NUT, FLANGE

...NUT, FLANGE

150 ₽
7

29U-24776-00-00 ...LEVER, SEAT

...LEVER, SEAT

750 ₽
8

4K0-24774-01-00 ...PIN

...PIN

750 ₽
9

90508-20454-00 ...SPRING, TORSION

...SPRING, TORSION

370 ₽
10

93430-04002-00 ...CIRCLIP

...CIRCLIP

190 ₽
