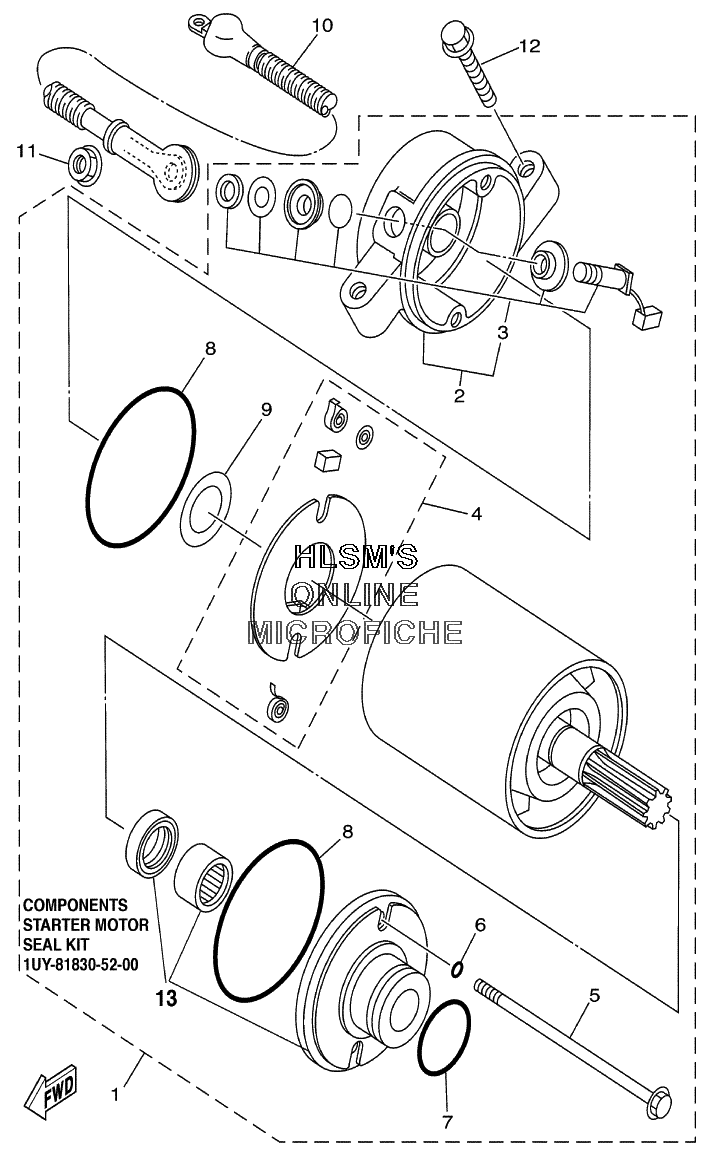

STARTING MOTOR для Yamaha BIG BEAR 2WD REALTREE YFM400NHN (5GW4) - 2001 года выпуска
-
№АртикулНазвание
-
14KB-81890-00-00 MOTOR ASSYMOTOR ASSY
-
24KB-81820-00-00 ...REAR BRACKET ASSY...REAR BRACKET ASSY
-
34KB-81818-00-00 ......BRUSH AND BOLT......BRUSH AND BOLT
-
44H7-81840-01-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
53GD-81826-00-00 ......BOLT, THROUGH......BOLT, THROUGH
-
68L6-81847-50-00 ......O-RING......O-RING
-
71UY-81847-50-00 ...O-RING...O-RING
-
84H7-81844-50-00 ......GASKET......GASKET
-
94H7-81843-50-00 ......WASHER......WASHER
-
105FU-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
1195302-06600-00 NUTNUT
-
1295027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
131UY-81830-52-00 STARTER MOTOR SEAL KITSTARTER MOTOR SEAL KIT
