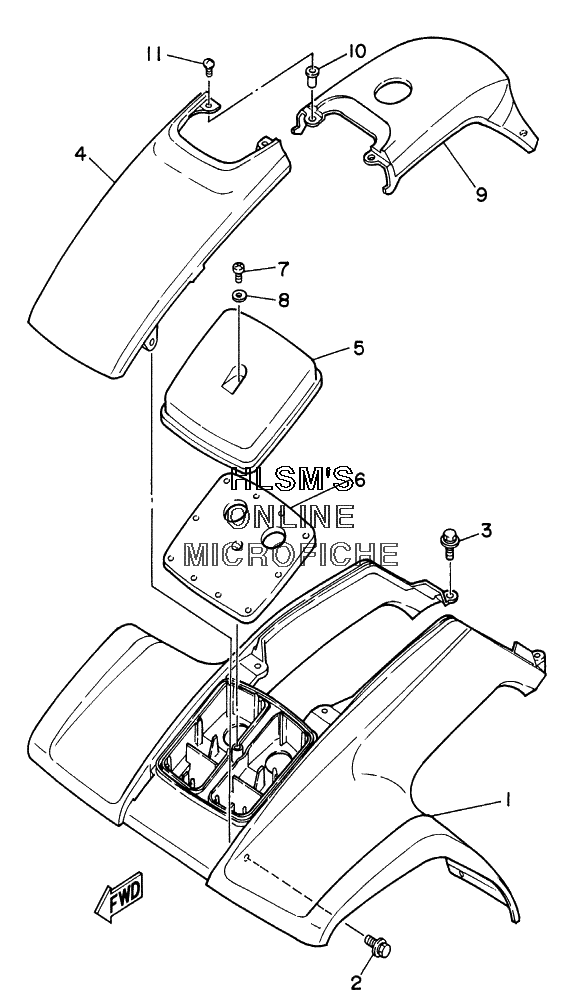

FENDER - FRONT для Yamaha BREEZE YFA1N (3FAT) - 2001 года выпуска
-
№АртикулНазвание
-
13FA-W2151-52-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
290119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06063-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43FA-23391-80-00 PANEL, FRONTPANEL, FRONT
-
53FA-14422-00-00 CAP, CLEANER CASECAP, CLEANER CASE
-
63FA-14461-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
798507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892907-05600-00 WASHER, PLATEWASHER, PLATE
-
93FA-2171A-80-00 COVER, TOPCOVER, TOP
-
1090179-05525-00 NUTNUT
-
1190154-05052-00 SCREW, BINDINGSCREW, BINDING
