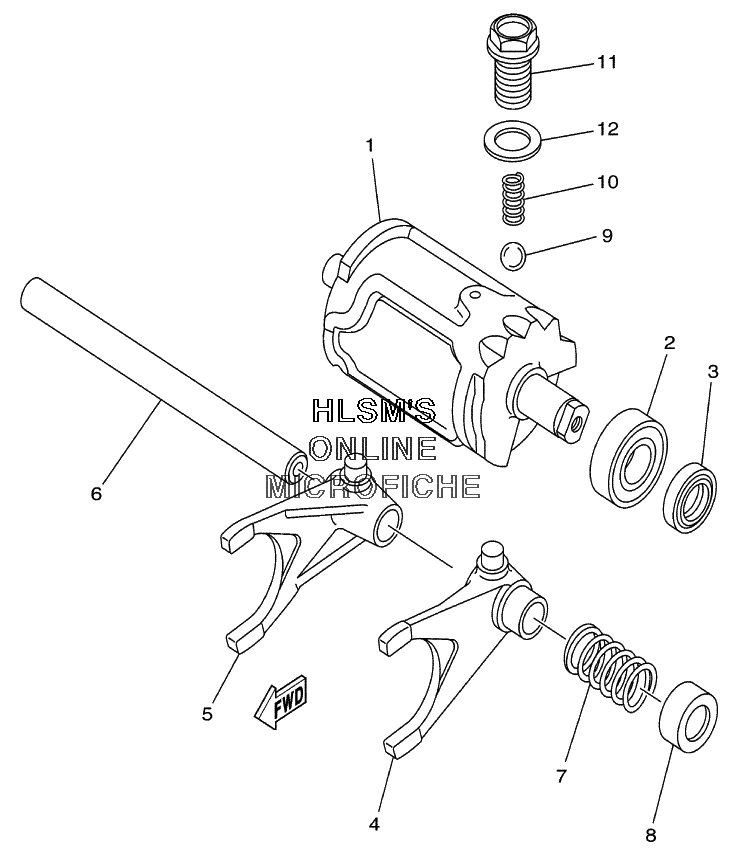

SHIFT CAM - FORK для Yamaha GRIZZLY YFM600FWAN (5GTE) - 2001 года выпуска
-
№АртикулНазвание
-
14WV-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293306-00208-00 BEARINGBEARING
-
393102-15212-00 OIL SEALOIL SEAL
-
45GT-18511-00-00 FORK, SHIFTFORK, SHIFT
-
55GT-18512-00-00 FORK, SHIFTFORK, SHIFT
-
65GT-18531-00-00 BAR, SHIFT FORK GUIDEBAR, SHIFT FORK GUIDE
-
790501-141L1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
84WV-18323-00-00 CAP, SPRINGCAP, SPRING
-
993503-08007-00 BALLBALL
-
1090501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1190105-14367-00 BOLT, FLANGEBOLT, FLANGE
-
1290430-14194-00 GASKETGASKET
