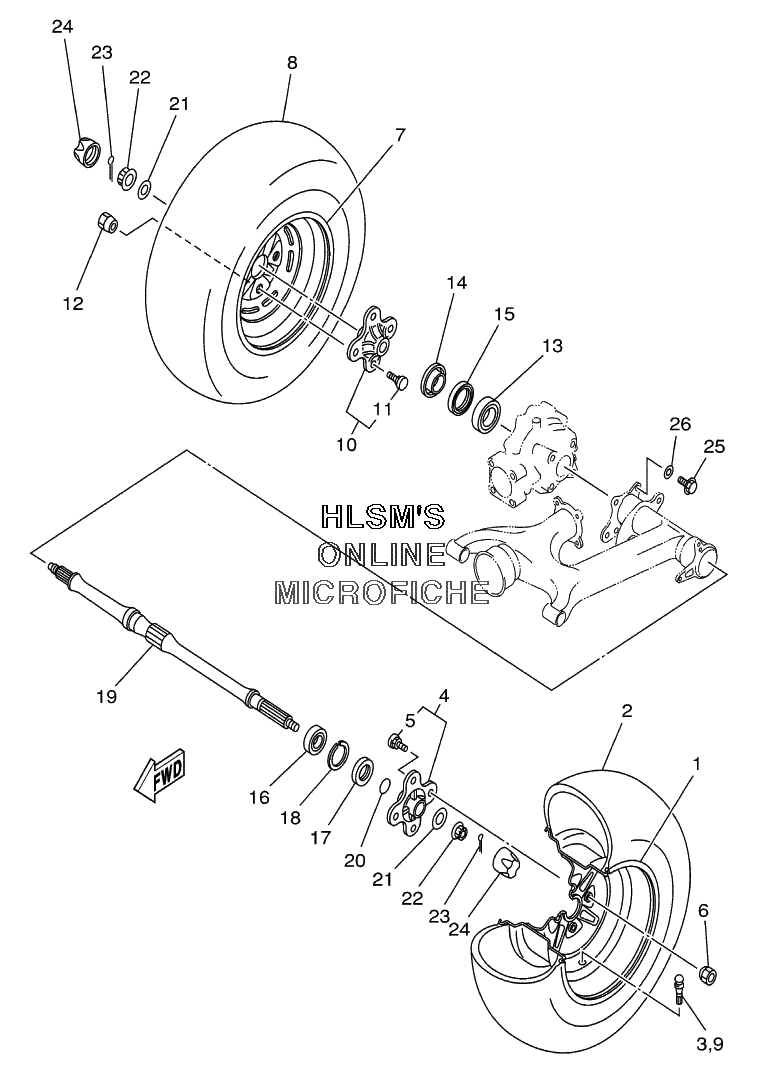

WHEEL - REAR W/ AXLE для Yamaha KODIAK 4X4 HUNTER EDITION YFM400FAHN (5GHF) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-25390-00-00 WHEEL COMP.(BLACK) (MODEL 5GHF)WHEEL COMP.(BLACK) (MODEL 5GHF)
-
15GH-25390-40-00 REAR WHEEL COMP (TITANIC GRAY) (MODEL 5GH9)REAR WHEEL COMP (TITANIC GRAY) (MODEL 5GH9)
-
294110-1216E-00 TIRE (DUNLOP AT25X10-12 KT127)TIRE (DUNLOP AT25X10-12 KT127)
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
42HR-25383-01-00 COLLAR, WHEELCOLLAR, WHEEL
-
590114-10010-00 ......BOLT, SERRATION......BOLT, SERRATION
-
690179-10540-00 NUTNUT
-
75GH-25390-00-00 WHEEL COMP.(BLACK) (MODEL 5GHF)WHEEL COMP.(BLACK) (MODEL 5GHF)
-
75GH-25390-40-00 REAR WHEEL COMP (TITANIC GRAY) (MODEL 5GH9)REAR WHEEL COMP (TITANIC GRAY) (MODEL 5GH9)
-
894110-1216E-00 TIRE (DUNLOP AT25X10-12 KT127)TIRE (DUNLOP AT25X10-12 KT127)
-
993900-00022-00 VALVE, RIMVALVE, RIM
-
104WV-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1190114-10010-00 ......BOLT, SERRATION......BOLT, SERRATION
-
1290179-10540-00 NUTNUT
-
1393306-00805-00 BEARINGBEARING
-
144SH-25367-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
1593106-47040-00 OIL SEALOIL SEAL
-
1693306-00612-00 BEARINGBEARING
-
1793106-38046-00 OIL SEALOIL SEAL
-
1899009-55500-00 CIRCLIPCIRCLIP
-
195GH-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2093210-27666-00 O-RINGO-RING
-
2190201-162L6-00 WASHER, PLATEWASHER, PLATE
-
2290171-16048-00 NUT, CASTLENUT, CASTLE
-
2391401-30030-00 PIN, COTTERPIN, COTTER
-
245GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
2590105-10751-00 BOLT, FLANGEBOLT, FLANGE
-
2690201-101J1-00 WASHER, PLATEWASHER, PLATE
