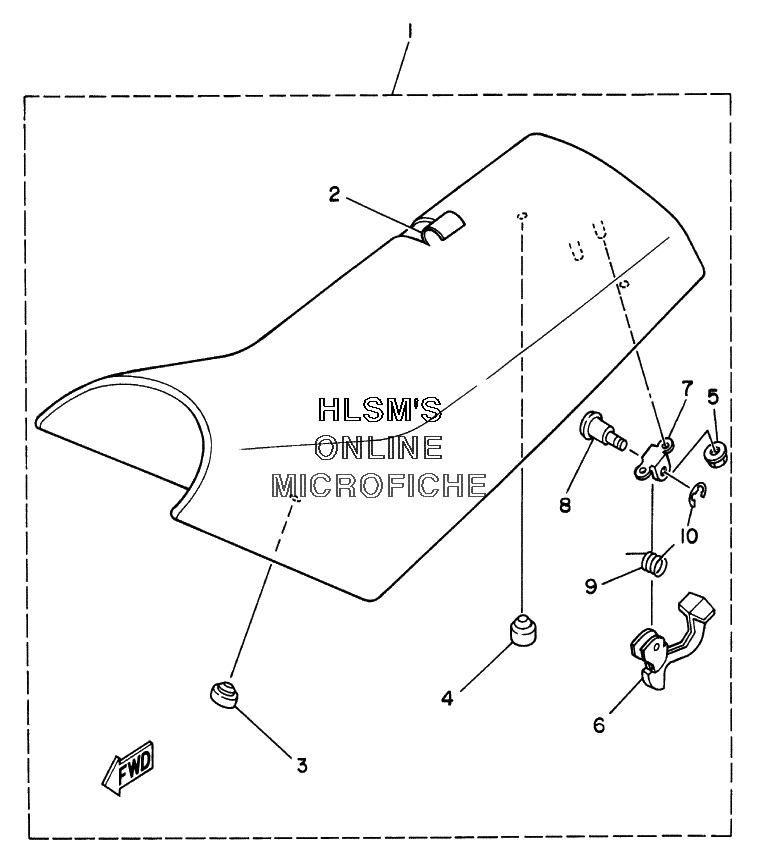

SEAT для Yamaha WARRIOR YFM350XN (3GDY) - 2001 года выпуска
-
№АртикулНазвание
-
13GD-24710-A0-00 SINGLE SEAT ASSY (583) (DEEP PURPLISH BLUE SOLID E)SINGLE SEAT ASSY (583) (DEEP PURPLISH BLUE SOLID E)
-
13GD-24710-B0-00 SINGLE SEAT ASSY (OUJ) (RADICAL WHITE)SINGLE SEAT ASSY (OUJ) (RADICAL WHITE)
-
23GD-2470F-A0-00 ...COVER, SEAT (583) (DEEP PURPLISH BLUE SOLID E)...COVER, SEAT (583) (DEEP PURPLISH BLUE SOLID E)
-
23GD-2470F-B0-00 ...COVER, SEAT (OUJ) (RADICAL WHITE)...COVER, SEAT (OUJ) (RADICAL WHITE)
-
322W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
4371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
595707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
63GD-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
74K0-24775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
-
84K0-24774-00-00 ...PIN...PIN
-
990508-20454-00 ...SPRING, TORSION...SPRING, TORSION
-
1093430-04002-00 ...CIRCLIP...CIRCLIP
