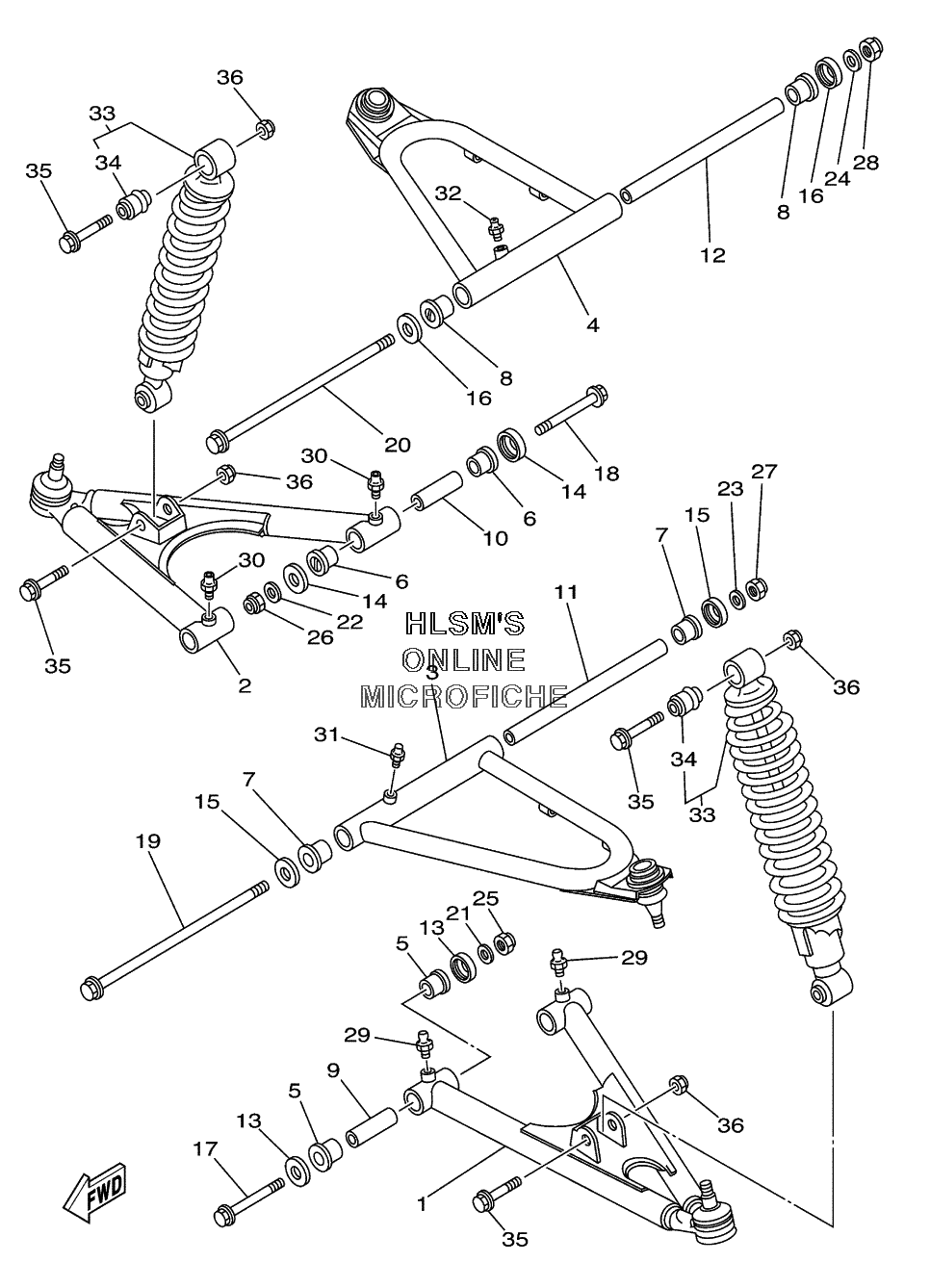

SUSPENSION - FRONT для Yamaha BANSHEE YFZ350P (5FKE) - 2002 года выпуска
-
№АртикулНазвание
-
12GU-23570-00-35 FRONT LOWER ARM COMP (LEFT)FRONT LOWER ARM COMP (LEFT)
-
22GU-23580-00-35 FRONT LOWER ARM COMP (RIGHT)FRONT LOWER ARM COMP (RIGHT)
-
33GG-23540-00-35 FRONT UPPER ARM COMP (LEFT)FRONT UPPER ARM COMP (LEFT)
-
43GG-23550-00-35 FRONT UPPER ARM COMP (RIGHT)FRONT UPPER ARM COMP (RIGHT)
-
590381-15088-00 BUSH, SOLIDBUSH, SOLID
-
690381-15088-00 BUSH, SOLIDBUSH, SOLID
-
790381-15088-00 BUSH, SOLIDBUSH, SOLID
-
890381-15088-00 BUSH, SOLIDBUSH, SOLID
-
990387-101R3-00 COLLARCOLLAR
-
1090387-101R3-00 COLLARCOLLAR
-
1190387-100Y6-00 COLLARCOLLAR
-
1290387-100Y6-00 COLLARCOLLAR
-
131UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
141UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
151UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
161UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1790105-10034-00 BOLT, FLANGEBOLT, FLANGE
-
1890105-10034-00 BOLT, FLANGEBOLT, FLANGE
-
1990105-10651-00 BOLT, FLANGEBOLT, FLANGE
-
2090105-10651-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-10430-00 WASHER, PLATEWASHER, PLATE
-
2290201-10430-00 WASHER, PLATEWASHER, PLATE
-
2390201-10430-00 WASHER, PLATEWASHER, PLATE
-
2490201-10430-00 WASHER, PLATEWASHER, PLATE
-
2590185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2790185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
333GG-23350-20-36 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
3459V-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
3590105-10388-00 BOLT, FLANGEBOLT, FLANGE
-
3690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
