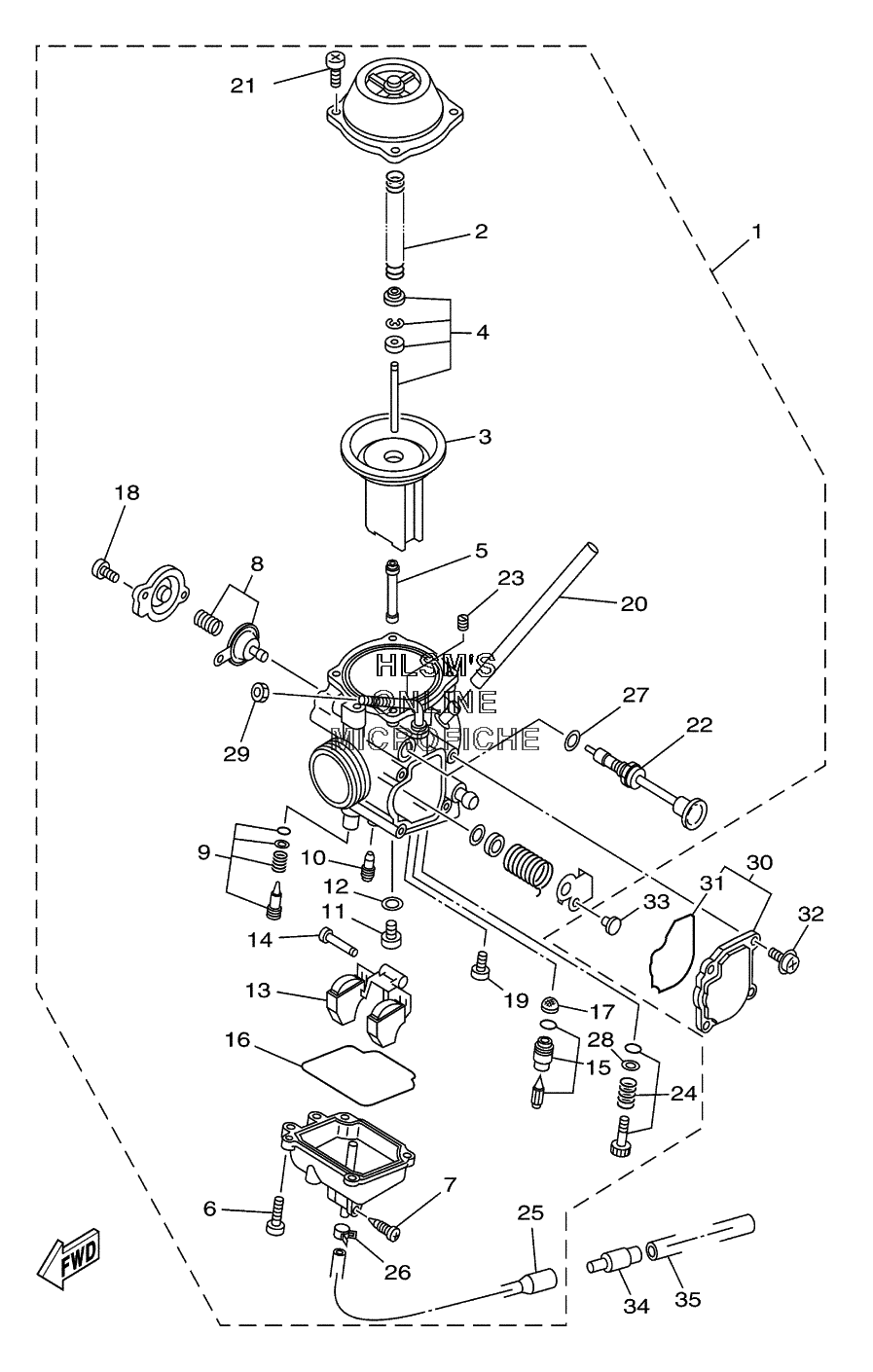

CARBURETOR для Yamaha BEAR TRACKER REAL TREE YFM250XHP (4XEE) - 2002 года выпуска
-
№АртикулНазвание
-
14XE-14140-12-00 CARB. SUB ASSYCARB. SUB ASSY
-
24XE-14933-00-00 ...SPRING,DIAPHRAGM...SPRING,DIAPHRAGM
-
34WU-14940-00-00 ...DIAPHRAGMASSY...DIAPHRAGMASSY
-
44XE-1490J-00-00 ...NEEDLESET...NEEDLESET
-
54WU-14141-42-00 ...NOZZLE,MAIN...NOZZLE,MAIN
-
698507-04012-00 ...SCREW,PANHEAD...SCREW,PANHEAD
-
712R-14191-00-00 ...PLUG,DRAIN...PLUG,DRAIN
-
826H-1490H-00-00 ...DIAPHRAGMSET5...DIAPHRAGMSET5
-
94RF-14105-00-00 ...PILOTSCREWSET...PILOTSCREWSET
-
104G0-14142-42-00 ...JET,PILOT(42.5)...JET,PILOT(42.5)
-
11620-14231-19-00 ...JET,MAIN(95)...JET,MAIN(95)
-
12137-14153-00-00 ...WASHER,MAINJET...WASHER,MAINJET
-
132VA-14185-00-00 ...FLOAT...FLOAT
-
14537-14186-00-00 ...PIN,FLOAT...PIN,FLOAT
-
151UY-14107-20-00 ...NEEDLEVALVESET...NEEDLEVALVESET
-
162LN-14147-00-00 ...O-RING...O-RING
-
171J7-14994-00-00 ...NET,FILTER...NET,FILTER
-
181UY-14565-00-00 ...SCREW...SCREW
-
192LN-14565-00-00 ...SCREW...SCREW
-
202J2-14197-00-00 ...PIPE...PIPE
-
2198507-04008-00 ...SCREW,PANHEAD...SCREW,PANHEAD
-
224KB-14993-00-00 ...PLUNGER,STARTER...PLUNGER,STARTER
-
232A2-14172-16-00 ...PILOTJET,AIR(1.6)...PILOTJET,AIR(1.6)
-
242VA-14103-00-00 ...THROTTLESCREWSET...THROTTLESCREWSET
-
254KB-14193-20-00 ...PIPE...PIPE
-
264XE-14937-00-00 ...CLIP...CLIP
-
274KB-14285-00-00 ...WASHER...WASHER
-
2822U-14952-00-00 ...WASHER...WASHER
-
29522-14161-00-00 ...NUT,CABLEADJUSTING...NUT,CABLEADJUSTING
-
304XE-14480-00-00 COVERSUBASSYCOVERSUBASSY
-
314KB-14147-00-00 ...O-RING...O-RING
-
321UY-14565-00-00 SCREWSCREW
-
331UY-14155-00-00 GUIDE,CABLEGUIDE,CABLE
-
3424W-14193-00-00 PIPEPIPE
-
3591A20-07010-00 TUBE,FLEXIBLEVINYLTUBE,FLEXIBLEVINYL
