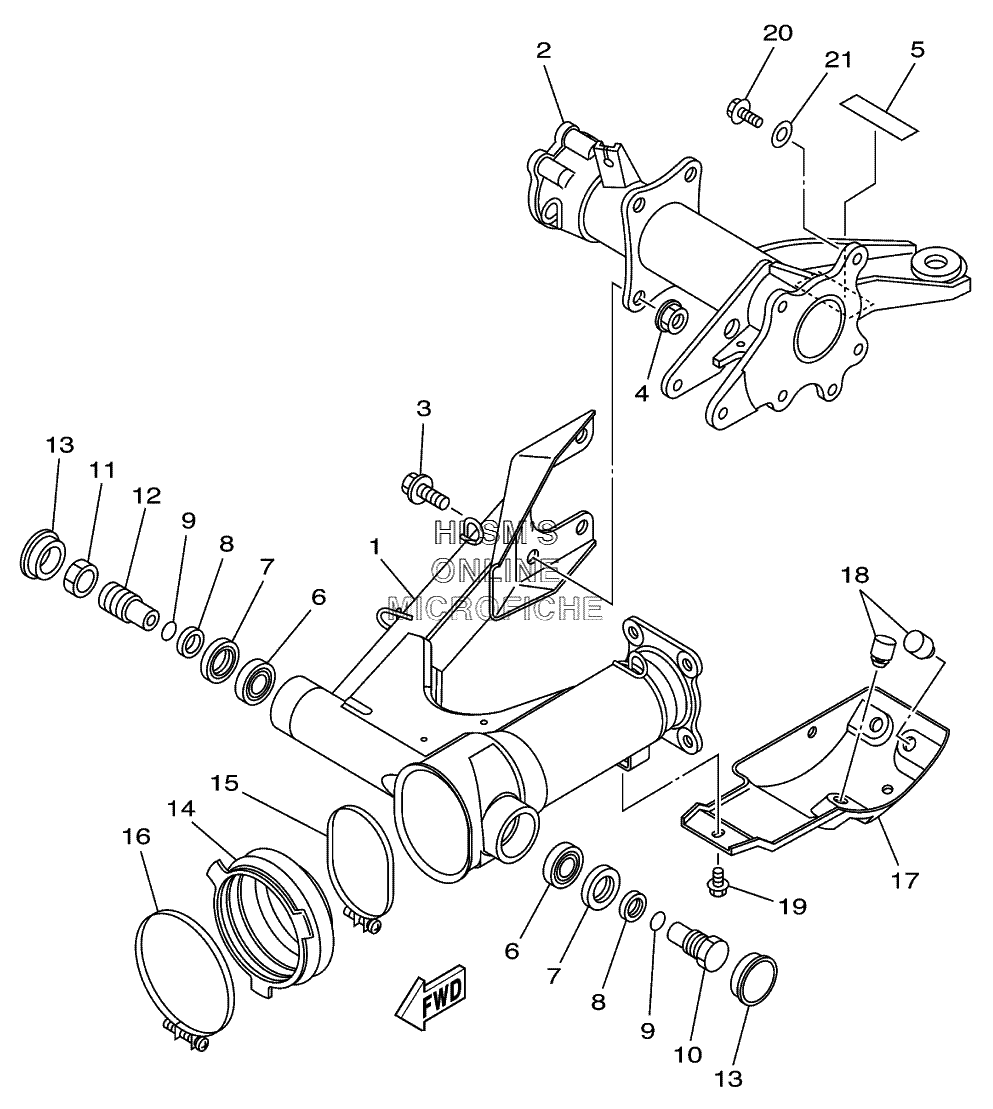

SUSPENSION - REAR ARM для Yamaha BIG BEAR 2WD REAL TREE YFM400HP (5GW7) - 2002 года выпуска
-
№АртикулНазвание
-
15FU-F2110-00-00 REAR ARM COMPREAR ARM COMP
-
25FU-G6540-00-00 REAR AXLE HOUSING COMPREAR AXLE HOUSING COMP
-
39581P-12025-00 BOLT, FLANGEBOLT, FLANGE
-
495707-12500-00 NUT, FLANGENUT, FLANGE
-
55FU-F151K-00-00 LABEL 7LABEL 7
-
693332-000Y3-00 BEARINGBEARING
-
793102-25017-00 OIL SEALOIL SEAL
-
890387-1711G-00 COLLARCOLLAR
-
993210-17718-00 O-RINGO-RING
-
104XE-F2141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
114XE-F2143-00-00 NUTNUT
-
124XE-F214H-00-00 SHAFT, PIVOT 2SHAFT, PIVOT 2
-
1390338-34264-00 PLUGPLUG
-
144KB-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
1590460-99289-00 CLAMP, HOSECLAMP, HOSE
-
164KB-22591-00-00 CLAMP, HOSECLAMP, HOSE
-
174XE-F219X-00-00 COVERCOVER
-
18109-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1995807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
2090105-10893-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-108R2-00 WASHER, PLATEWASHER, PLATE
