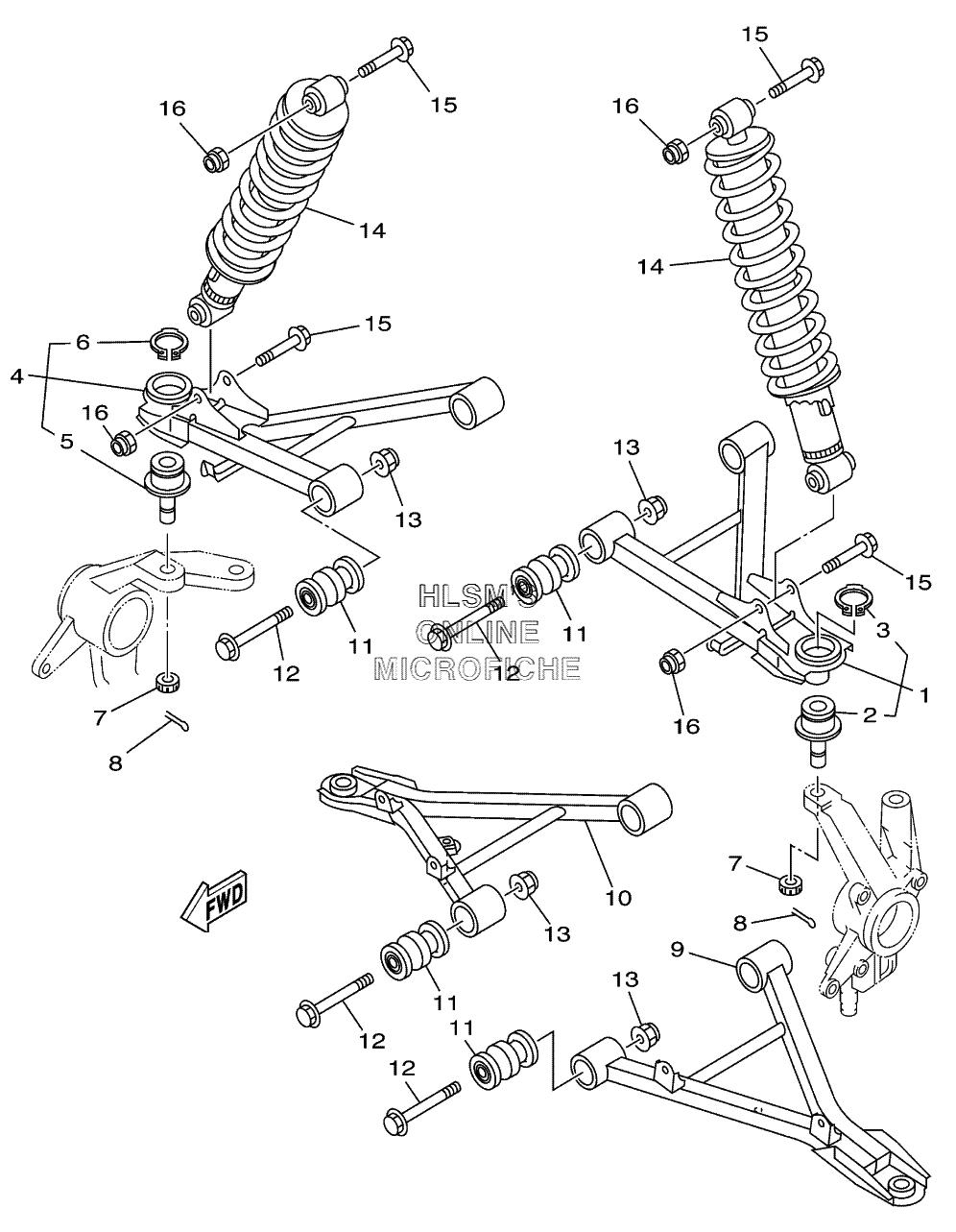

SUSPENSION - FRONT для Yamaha BIG BEAR 400 2WD YFM400P (5GW7) - 2002 года выпуска
-
№АртикулНазвание
-
15FU-F3540-00-00 FRONT UPPER ARM COMP(LEFT)FRONT UPPER ARM COMP(LEFT)
-
25FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
393410-32826-00 ...CIRCLIP...CIRCLIP
-
45FU-F3550-00-00 FRONT UPPER ARM COMP(RIGHT)FRONT UPPER ARM COMP(RIGHT)
-
55FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
693410-32826-00 ...CIRCLIP...CIRCLIP
-
790171-12816-00 NUT, CASTLENUT, CASTLE
-
891401-25020-00 PIN, COTTERPIN, COTTER
-
95FU-F357A-00-00 ARM,FRLWRLHARM,FRLWRLH
-
105FU-F358A-00-00 ARM,FRLWRRHARM,FRLWRRH
-
112HR-23526-00-00 BUSHBUSH
-
1290105-10890-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
145FU-F3350-10-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1590105-108B1-00 BOLT, FLANGEBOLT, FLANGE
-
1690185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
