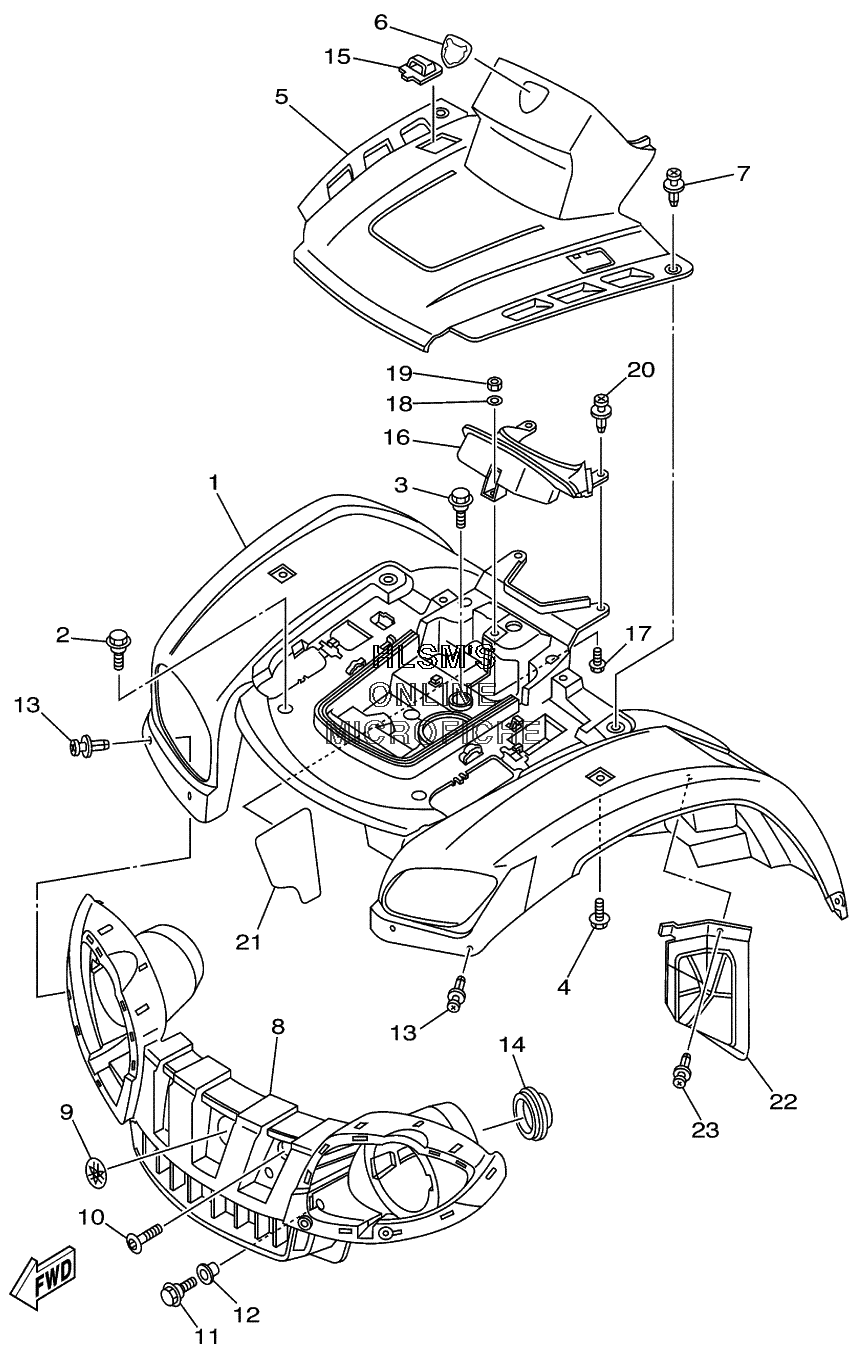

FENDER - FRONT для Yamaha GRIZZLY HUNTER EDITION YFM660FHP (5KM5) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-W2151-A0-00 FRONT FENDER COMPFRONT FENDER COMP
-
290109-063F1-00 BOLTBOLT
-
390109-063F1-00 BOLTBOLT
-
490119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55KM-23391-A0-00 PANEL, FRONTPANEL, FRONT
-
65FE-26232-00-00 EMBLEM 3DEMBLEM 3D
-
790269-06002-00 RIVETRIVET
-
85KM-28309-00-00 GRILLE, FRONTGRILLE, FRONT
-
95KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
1090110-06007-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1195807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1290387-06648-00 COLLARCOLLAR
-
1390269-06002-00 RIVETRIVET
-
145GH-28349-00-00 CAPCAP
-
155KM-23338-00-00 CAP, SIDE 1CAP, SIDE 1
-
165KM-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
1790109-063F5-00 BOLTBOLT
-
1890201-07081-00 WASHER, PLATEWASHER, PLATE
-
1995317-06600-00 NUTNUT
-
2090269-06002-00 RIVETRIVET
-
215KM-21575-00-00 SEAL 1SEAL 1
-
225KM-2193A-00-00 PROTECTORPROTECTOR
-
2390269-06002-00 RIVETRIVET
