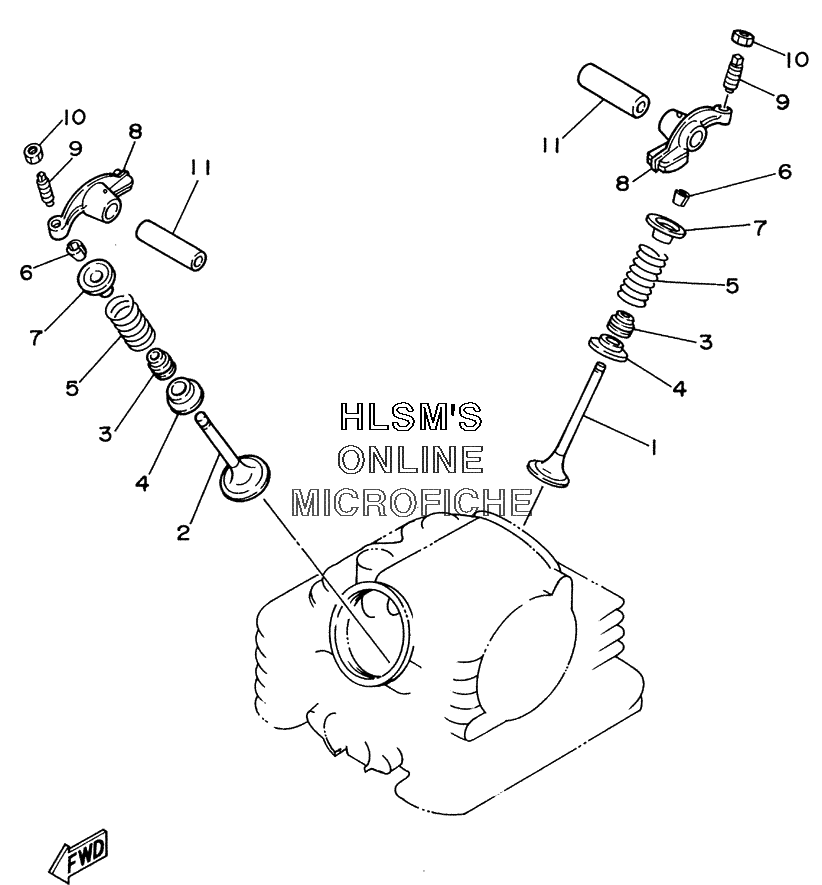

VALVE для Yamaha BREEZE YFA1R (5VJ1) - 2003 года выпуска
-
№АртикулНазвание
-
150M-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
250M-12121-01-00 VALVE, EXHAUSTVALVE, EXHAUST
-
32HX-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
422F-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
53FA-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
622F-12118-01-00 COTTER, VALVECOTTER, VALVE
-
722F-12117-02-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
850M-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
922F-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1090170-05302-00 NUTNUT
-
1122F-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
Все узлы модели:
- AIR CLEANER W/ INTAKE
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- DECALS
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- SEAT
- SHIFT CAM W/ FORK
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT
- SUSPENSION - REAR ARM
- TAILLIGHT
- TRANSMISSION
- • VALVE
- WHEEL - FRONT
- WHEEL - REAR W/ AXLE ASSY.
