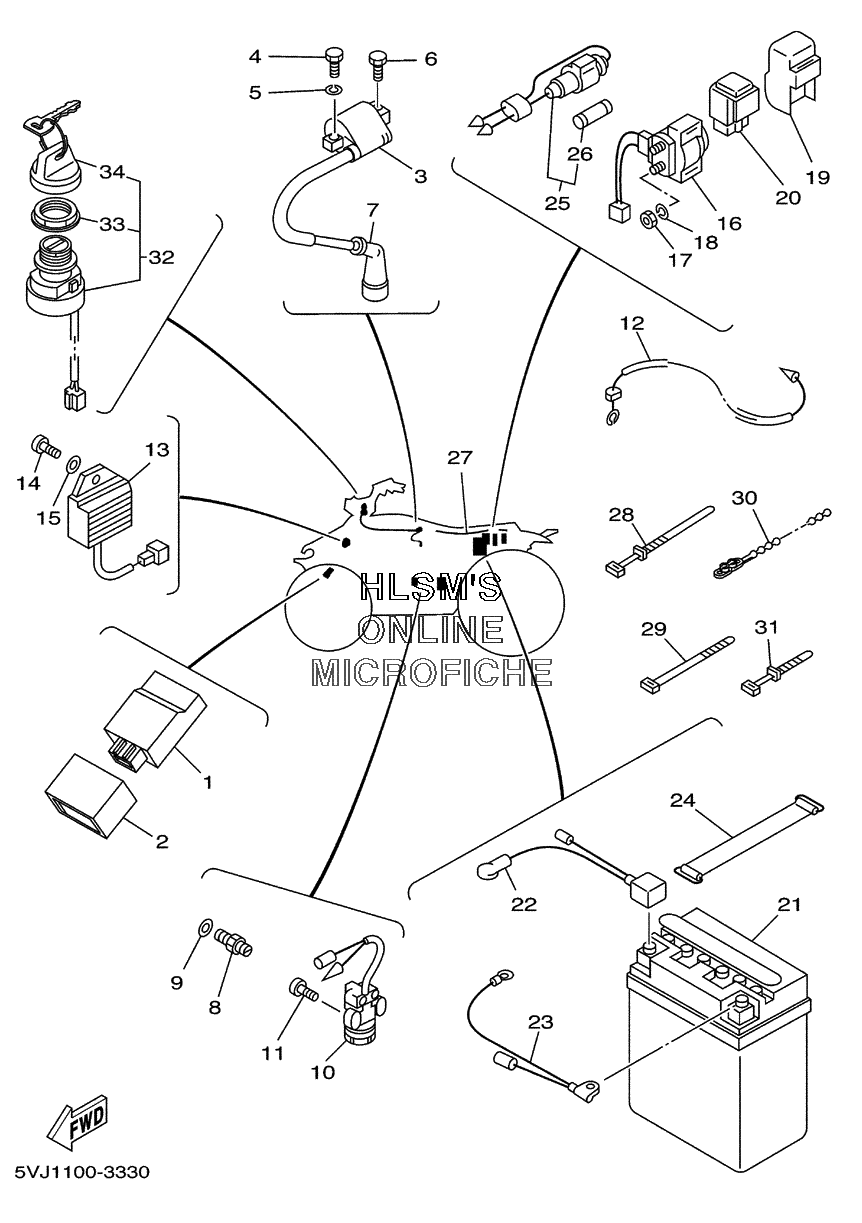

ELECTRICAL для Yamaha BREEZE YFA1RC CALIFORNIA (5VJ2) - 2003 года выпуска
-
№АртикулНазвание
-
13FA-85540-20-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
25HP-85546-00-00 BANDBAND
-
34KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
497007-06020-00 BOLTBOLT
-
592907-06100-00 WASHER, SPRINGWASHER, SPRING
-
690109-06723-00 BOLTBOLT
-
71UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
84KM-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
990430-10148-00 GASKETGASKET
-
103FA-82627-00-00 SWITCHSWITCH
-
1190149-05283-00 SCREWSCREW
-
123FA-82541-00-00 WIRE, LEADWIRE, LEAD
-
133GB-81960-10-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1498507-06016-00 SCREWSCREW
-
1592907-06600-00 WASHER, PLATEWASHER, PLATE
-
164KD-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1795307-06700-00 NUTNUT
-
1892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1929U-81950-93-00 RELAY ASSYRELAY ASSY
-
202NL-81950-92-00 RELAY ASSYRELAY ASSY
-
213FA-82110-12-00 BATTERY ASSY (12N12C-4A-2)BATTERY ASSY (12N12C-4A-2)
-
223FA-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
233FA-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
24133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
253GB-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
263GB-82151-00-00 ...FUSE (5A)...FUSE (5A)
-
273FA-82590-30-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
283TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2990465-10098-00 CLAMPCLAMP
-
3090464-20031-00 CLAMPCLAMP
-
31437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
325LP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
333HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
343HN-82579-00-00 ...CAP, KEY...CAP, KEY
