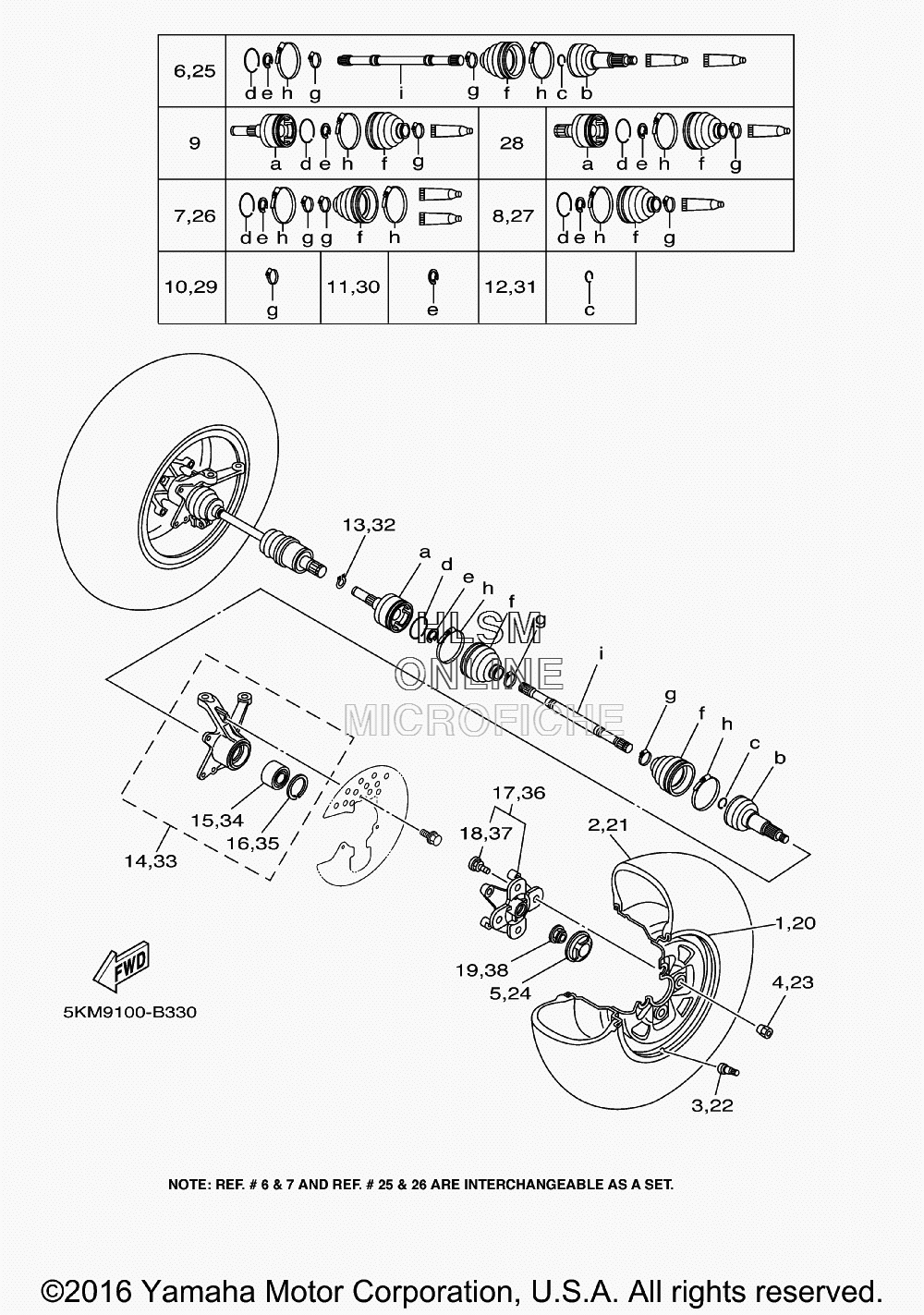

WHEEL - FRONT W/ AXLE ASSY для Yamaha GRIZZLY 660 4x4 [YFM660FRGY] - 2003 года выпуска
-
№АртикулНазвание
-
15KM-25180-31-00 WHEEL COMP.WHEEL COMP.
-
294108-12009-00 TIRE (AT 25X8-12** KT131 T/L)TIRE (AT 25X8-12** KT131 T/L)
-
393900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
490179-10007-00 NUTNUT
-
55KM-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65KM-2510F-11-00 BALL JOINT SET (AFTER 018537)BALL JOINT SET (AFTER 018537)
-
65KM-2510F-10-00 BALL JOINT SET (UP TO 018537)BALL JOINT SET (UP TO 018537)
-
75KM-2510G-11-00 BOOT SET (BALL JOINT) (AFTER 018537)BOOT SET (BALL JOINT) (AFTER 018537)
-
75KM-2510G-10-00 BOOT SET (BALL JOINT) (UP TO 018537)BOOT SET (BALL JOINT) (UP TO 018537)
-
85KM-2510H-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
95KM-2510J-30-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
112HR-2512J-00-00 SNAP RINGSNAP RING
-
124KB-2512H-00-00 CIRCLIPCIRCLIP
-
135KM-45531-10-00 CLIP, DRIVE SHAFTCLIP, DRIVE SHAFT
-
145KM-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1593305-00601-00 ...BEARING...BEARING
-
1699009-55500-00 ...CIRCLIP...CIRCLIP
-
175KM-25111-10-00 HUB, FRONTHUB, FRONT
-
1890114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1990179-20006-00 NUTNUT
-
205KM-25180-31-00 WHEEL COMP.WHEEL COMP.
-
2194108-12009-00 TIRE (AT 25X8-12** KT131 T/L) (DUNLOP)TIRE (AT 25X8-12** KT131 T/L) (DUNLOP)
-
2293900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
2390179-10007-00 NUTNUT
-
245KM-2512A-00-00 CAP, WHEELCAP, WHEEL
-
255KM-2510F-10-00 BALL JOINT SET (UP TO 018537)BALL JOINT SET (UP TO 018537)
-
255KM-2510F-11-00 BALL JOINT SET (AFTER 018537)BALL JOINT SET (AFTER 018537)
-
265KM-2510G-10-00 BOOT SET (BALL JOINT) (UP TO 018537)BOOT SET (BALL JOINT) (UP TO 018537)
-
265KM-2510G-11-00 BOOT SET (BALL JOINT) (AFTER 018537)BOOT SET (BALL JOINT) (AFTER 018537)
-
275KM-2510H-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
285KM-2510J-20-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
293HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
302HR-2512J-00-00 SNAP RINGSNAP RING
-
314KB-2512H-00-00 CIRCLIPCIRCLIP
-
3293450-22119-00 CIRCLIPCIRCLIP
-
335KM-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
3493305-00601-00 ...BEARING...BEARING
-
3599009-55500-00 ...CIRCLIP...CIRCLIP
-
365KM-25111-10-00 HUB, FRONTHUB, FRONT
-
3790114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
3890179-20006-00 NUTNUT
