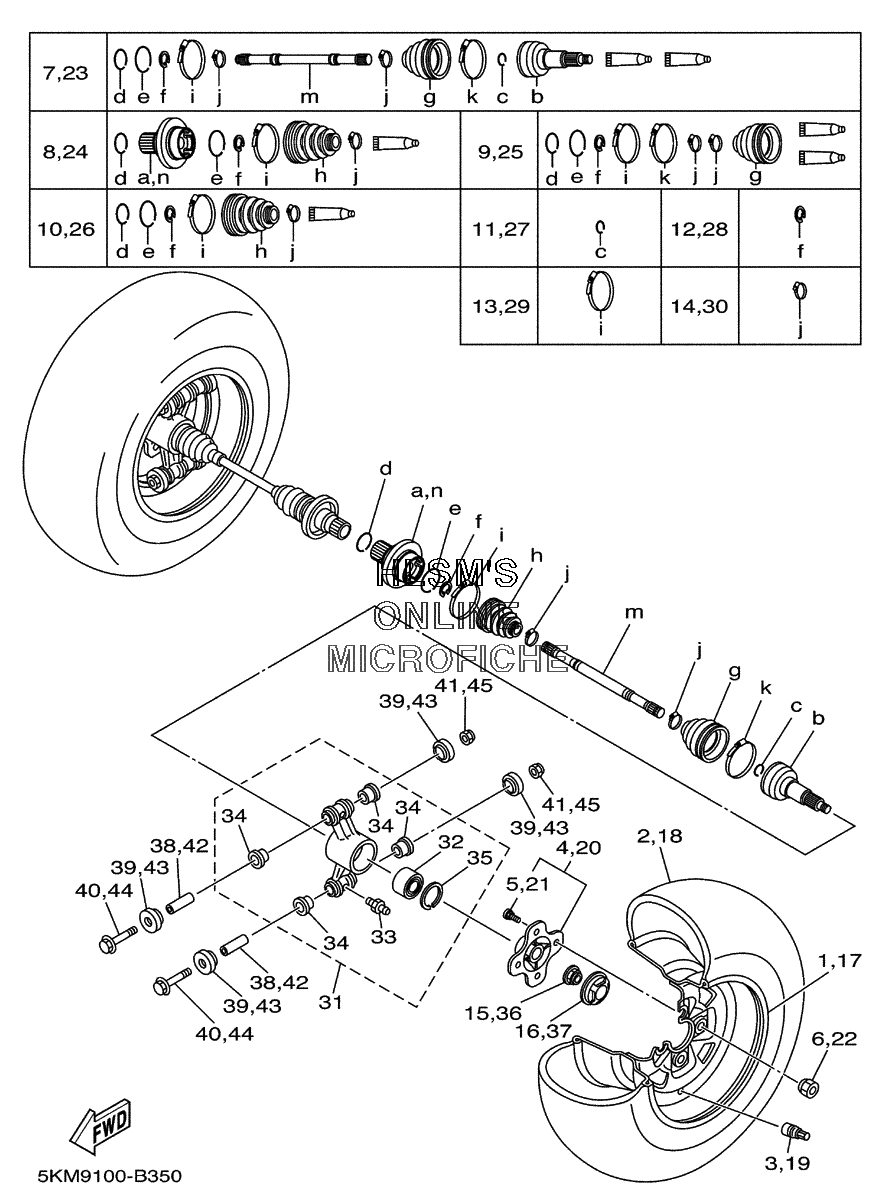

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY HUNTER 4X4 YFM660FHR (5KM8) - 2003 года выпуска
-
№АртикулНазвание
-
15KM-25390-30-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12009-00 TIRE (AT 25X10-12** KT135 T/L) (DUNLOP)TIRE (AT 25X10-12** KT135 T/L) (DUNLOP)
-
393900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
45KM-25311-10-00 HUB, REARHUB, REAR
-
590114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
690179-10007-00 NUTNUT
-
75KM-2530U-10-00 BALL JOINT SETBALL JOINT SET
-
85KM-2530W-10-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
95KM-2530X-10-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
105KM-2530Y-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
114KB-2512H-00-00 CIRCLIPCIRCLIP
-
122HR-2512J-00-00 SNAP RINGSNAP RING
-
134KB-2511H-00-00 BOOT BANDBOOT BAND
-
143HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
1590179-20006-00 NUTNUT
-
165KM-2512A-00-00 CAP, WHEELCAP, WHEEL
-
175KM-25390-30-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
1894110-12009-00 TIRE (AT 25X10-12** KT135 T/L) (DUNLOP)TIRE (AT 25X10-12** KT135 T/L) (DUNLOP)
-
1993900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
205KM-25311-10-00 HUB, REARHUB, REAR
-
2190114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2290179-10007-00 NUTNUT
-
235KM-2530T-10-00 BALL JOINT SETBALL JOINT SET
-
245KM-2530V-10-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
255KM-2530X-10-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
265KM-2530Y-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
274KB-2512H-00-00 CIRCLIPCIRCLIP
-
282HR-2512J-00-00 SNAP RINGSNAP RING
-
294KB-2511H-00-00 BOOT BANDBOOT BAND
-
303HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
315KM-2530F-10-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
3293305-00601-00 ...BEARING...BEARING
-
3393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3490381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3599009-55500-00 ...CIRCLIP...CIRCLIP
-
3690179-20006-00 NUTNUT
-
375KM-2512A-00-00 CAP, WHEELCAP, WHEEL
-
385KM-23448-00-00 SPACERSPACER
-
392NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4090105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4190185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
425KM-23448-00-00 SPACERSPACER
-
432NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4490105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4590185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
