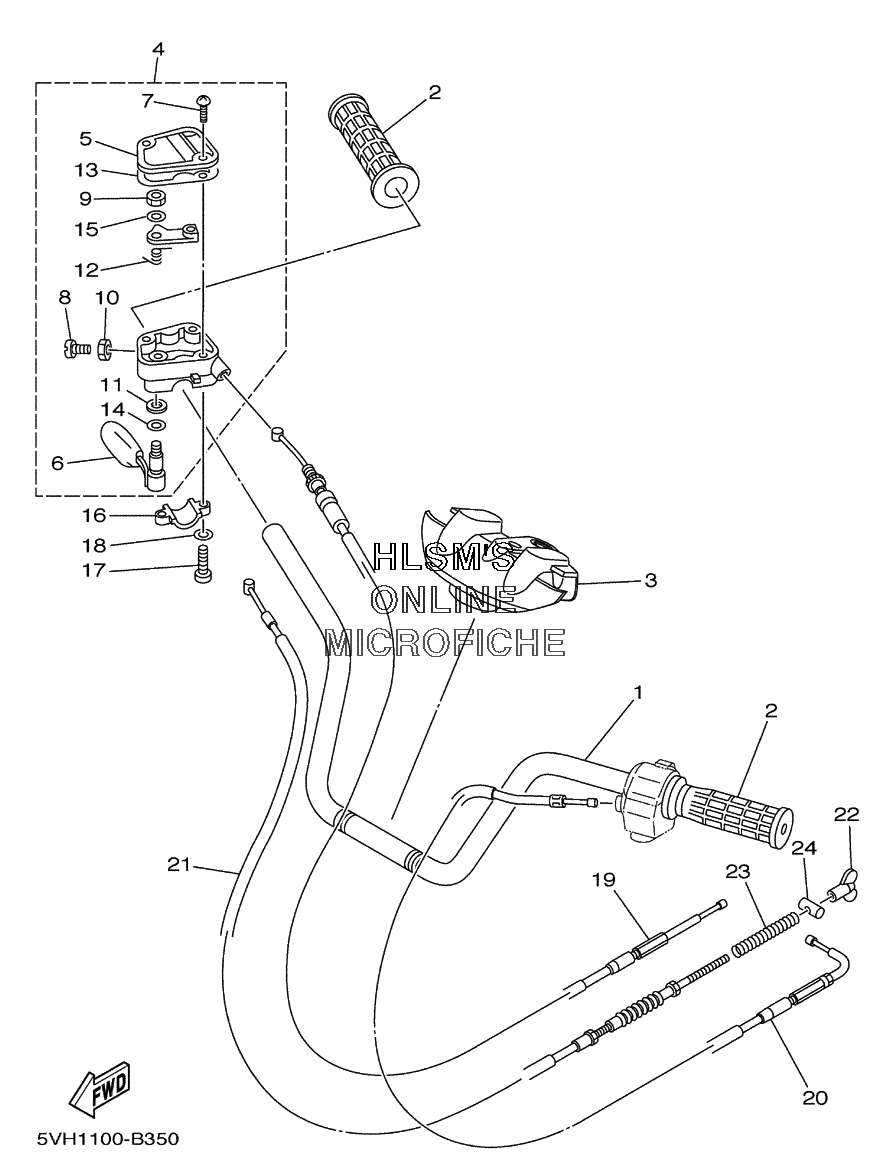

HANDLEBAR W/ CABLES для Yamaha KODIAK 400 YFM400AR (5VH1) - 2003 года выпуска
-
№АртикулНазвание
-
15FU-F6111-00-00 HANDLEBARHANDLEBAR
-
25FU-F6241-00-00 GRIPGRIP
-
35ND-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
44KB-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
54KB-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
61NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
790149-04278-00 ...SCREW...SCREW
-
898507-05020-00 ...SCREW...SCREW
-
995607-05100-00 ...NUT, U...NUT, U
-
1095307-05700-00 ...NUT...NUT
-
1193104-09025-00 ...OIL SEAL...OIL SEAL
-
121NV-26304-00-00 ...SPRING...SPRING
-
134KB-2628G-00-00 ...GASKET...GASKET
-
141NV-26129-00-00 ...WASHER...WASHER
-
151NV-26398-00-00 ...WASHER...WASHER
-
164V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1798507-05020-00 SCREWSCREW
-
1892907-05600-00 WASHER, PLATEWASHER, PLATE
-
195GH-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
205VH-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
215TE-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
2220E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
2390501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2490249-12008-00 PINPIN
