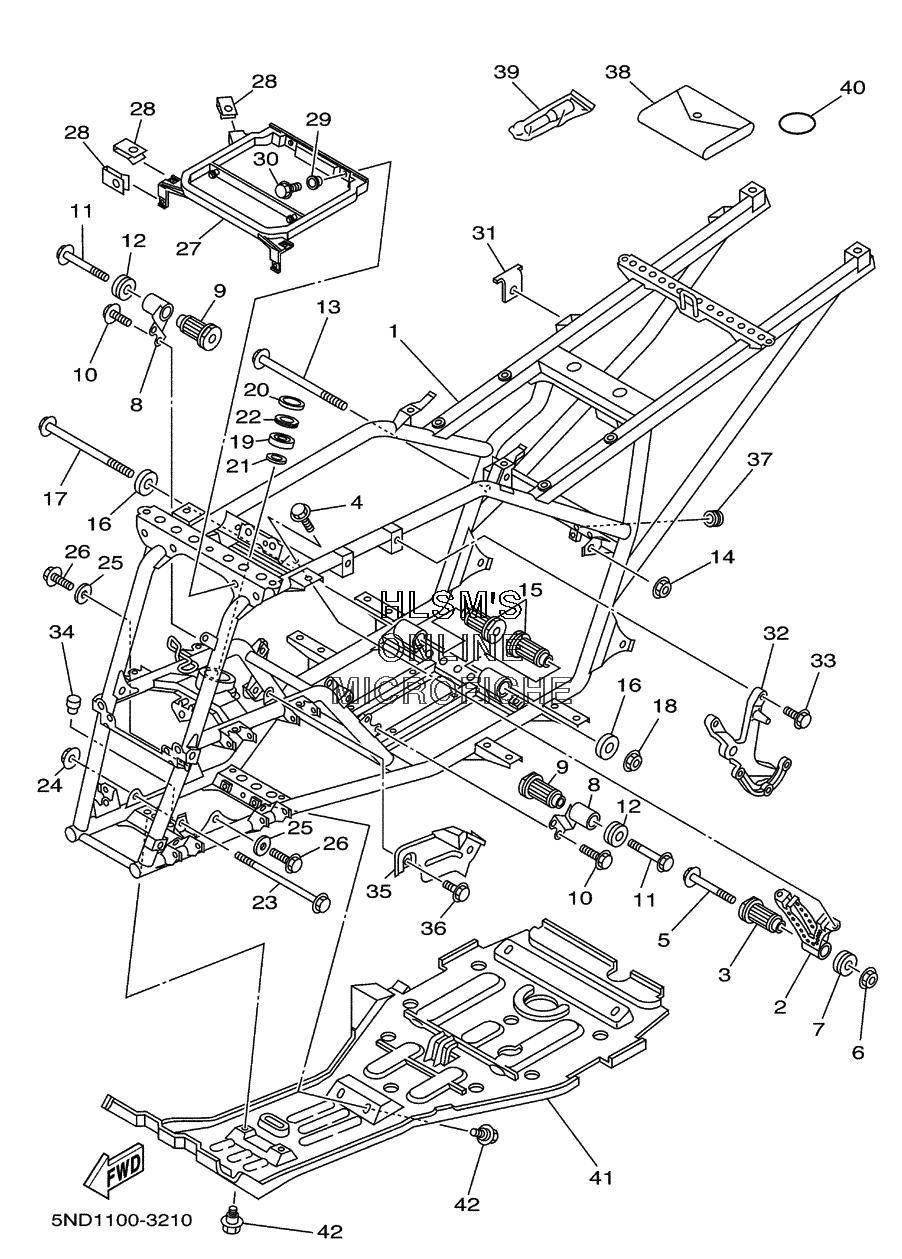

FRAME для Yamaha KODIAK 450 4WD YFM450FAR (5ND1) - 2003 года выпуска
-
№АртикулНазвание
-
15ND-F1110-00-00 FRAME COMP.FRAME COMP.
-
25ND-F1315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
35ND-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
49581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
595817-10110-00 BOLT, FLANGEBOLT, FLANGE
-
695607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
75ND-F1486-00-00 DAMPER 2DAMPER 2
-
85ND-F1316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
95ND-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
109581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1195817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
125ND-F1486-00-00 DAMPER 2DAMPER 2
-
1390105-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
155ND-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
165ND-F1488-00-00 DAMPERDAMPER
-
1790105-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1895607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1993306-203YN-00 BEARINGBEARING
-
2093102-25081-00 OIL SEALOIL SEAL
-
2193102-25099-00 OIL SEALOIL SEAL
-
222GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2390105-10051-00 BOLT, FLANGEBOLT, FLANGE
-
2495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590201-101J1-00 WASHER, PLATEWASHER, PLATE
-
2695817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
275ND-F1513-00-00 STAY, FENDER 1STAY, FENDER 1
-
2890183-06053-00 NUT, SPRINGNUT, SPRING
-
2990387-06681-00 COLLARCOLLAR
-
3095817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
315ND-F1446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
325ND-F1585-00-00 ARMARM
-
3395827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
344N0-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
355ND-F2825-00-00 PROTECTOR 1PROTECTOR 1
-
3695817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3790480-10517-00 GROMMETGROMMET
-
385ND-F8100-00-00 TOOL KITTOOL KIT
-
391NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
4093210-64297-00 O-RINGO-RING
-
415ND-F147A-00-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
4290109-063F1-00 BOLTBOLT
