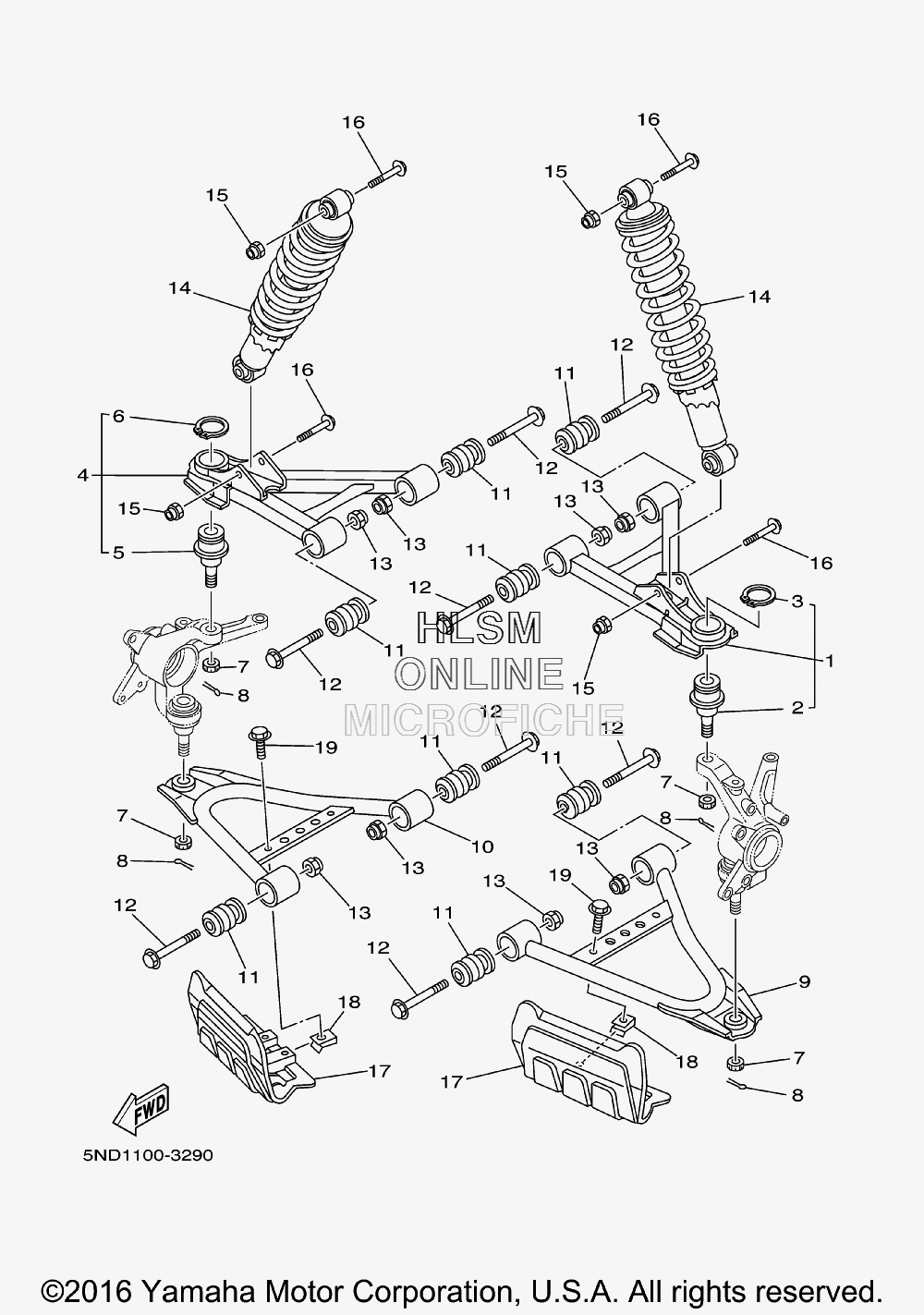

SUSPENSION - FRONT WHEEL для Yamaha KODIAK 450 REAL TREE [YFM450FAHR] - 2003 года выпуска
-
№АртикулНазвание
-
15ND-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
25FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
393410-32826-00 ...CIRCLIP...CIRCLIP
-
45ND-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
55FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
693410-32826-00 ...CIRCLIP...CIRCLIP
-
790171-12816-00 NUT, CASTLENUT, CASTLE
-
891401-25020-00 PIN, COTTERPIN, COTTER
-
95ND-F357A-00-00 ARM, FRONT LOWER L.H.ARM, FRONT LOWER L.H.
-
105ND-F358A-00-00 ARM, FRONT LOWER R.H.ARM, FRONT LOWER R.H.
-
112HR-23526-00-00 BUSHBUSH
-
1290105-10890-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
145ND-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1590185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690105-108B1-00 BOLT, FLANGEBOLT, FLANGE
-
175ND-F3123-00-00 COVER, LOWER 1COVER, LOWER 1
-
1890183-06053-00 NUT, SPRINGNUT, SPRING
-
1995807-06012-00 BOLT, FLANGEBOLT, FLANGE
