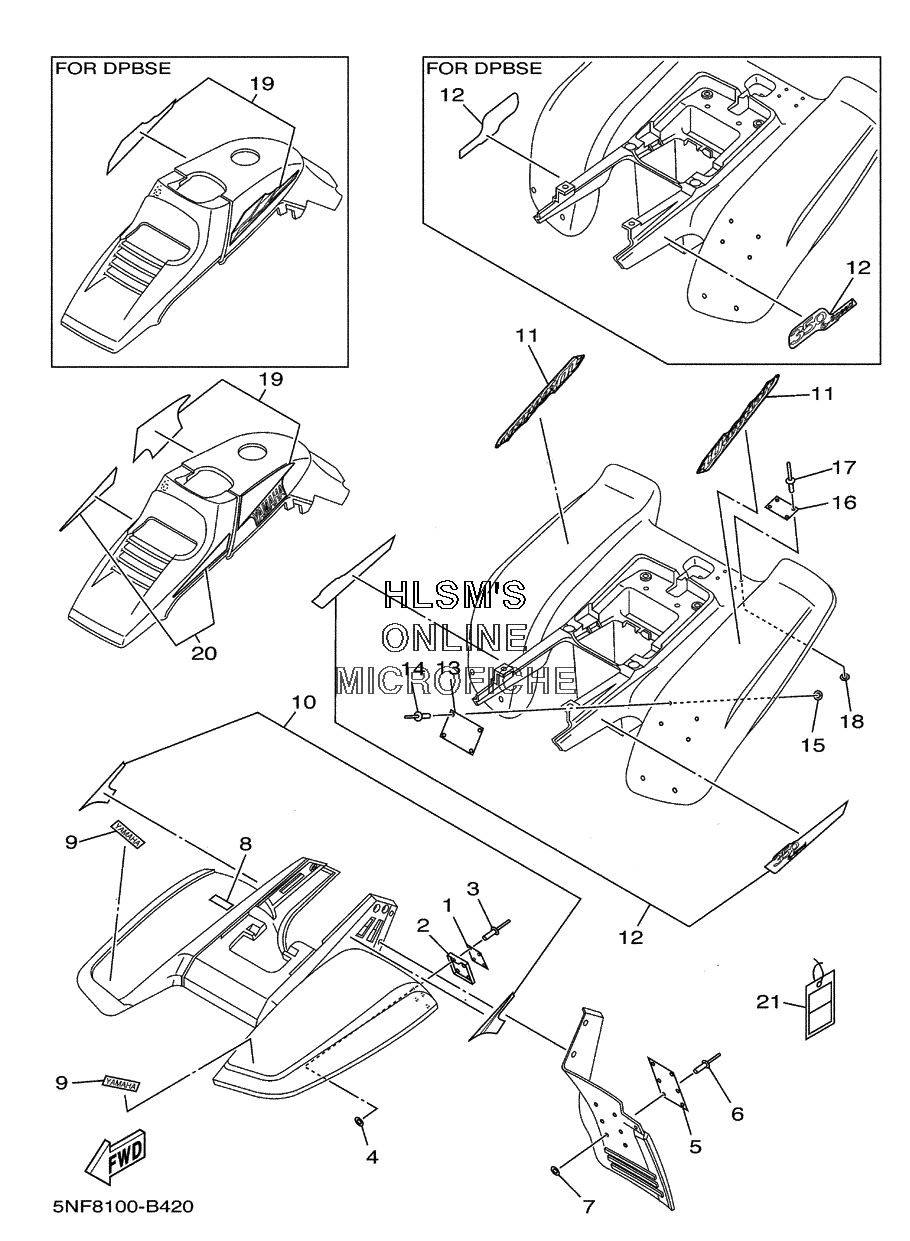

DECALS для Yamaha WARRIOR YFM350XR CALIFORNIA (5NF9) - 2003 года выпуска
-
№АртикулНазвание
-
15FE-21697-01-00 LABEL, CAUTION 2LABEL, CAUTION 2
-
23JM-21591-10-00 STAY, PLATE FITTING 2 (OPT) FOR DEEP PURPLISH BLUE (DPBSE)STAY, PLATE FITTING 2 (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
-
23JM-21591-40-00 STAY, PLATE FITTING 2 (OPT) FOR YAMAHA BLACK (YB)STAY, PLATE FITTING 2 (OPT) FOR YAMAHA BLACK (YB)
-
390267-32198-00 RIVET, BLINDRIVET, BLIND
-
490201-03313-00 WASHER, PLATEWASHER, PLATE
-
55FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
690267-32004-00 RIVET, BLINDRIVET, BLIND
-
790201-03313-00 WASHER, PLATEWASHER, PLATE
-
83GD-2151E-A0-00 LABEL 2LABEL 2
-
93GD-2153E-00-00 EMBLEM, YAMAHA (OPT) FOR DEEP PURPLISH BLUE (DPBSE)EMBLEM, YAMAHA (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
-
93GD-2153E-10-00 EMBLEM, YAMAHA (OPT) FOR YAMAHA BLACK (YB)EMBLEM, YAMAHA (OPT) FOR YAMAHA BLACK (YB)
-
105NF-2157A-00-00 GRAPHIC SET, FRONT FENDER FOR YAMAHA BLACK (YB)GRAPHIC SET, FRONT FENDER FOR YAMAHA BLACK (YB)
-
115NF-2163G-10-00 EMBLEM 1 (OPT) FOR DEEP PURPLISH BLUE (DPBSE)EMBLEM 1 (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
-
115NF-2163G-20-00 EMBLEM 1 (OPT) FOR YAMAHA BLACK (YB)EMBLEM 1 (OPT) FOR YAMAHA BLACK (YB)
-
125NF-21784-00-00 EMBLEM 4 (OPT) FOR DEEP PURPLISH BLUE (DPBSE)EMBLEM 4 (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
-
125NF-2165B-00-00 GRAPHIC SET,REAR FENDER (OPT) FOR YAMAHA BLACK (YB)GRAPHIC SET,REAR FENDER (OPT) FOR YAMAHA BLACK (YB)
-
133GD-21696-31-00 LABEL, CAUTIONLABEL, CAUTION
-
1490267-32004-00 RIVET, BLINDRIVET, BLIND
-
1590201-03313-00 WASHER, PLATEWASHER, PLATE
-
165FE-2151H-01-00 LABEL 5LABEL 5
-
1790267-32004-00 RIVET, BLINDRIVET, BLIND
-
1890201-03313-00 WASHER, PLATEWASHER, PLATE
-
195NF-24230-00-00 GRAPHIC SET (OPT) FOR DEEP PURPLISH BLUE (DPBSE)GRAPHIC SET (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
-
195NF-24230-10-00 GRAPHIC SET (OPT) FOR YAMAHA BLACK (YB)GRAPHIC SET (OPT) FOR YAMAHA BLACK (YB)
-
205NF-24250-00-00 GRAPHIC SET FOR YAMAHA BLACK (YB)GRAPHIC SET FOR YAMAHA BLACK (YB)
-
215LP-2819R-00-00 TAG, WARNINGTAG, WARNING
