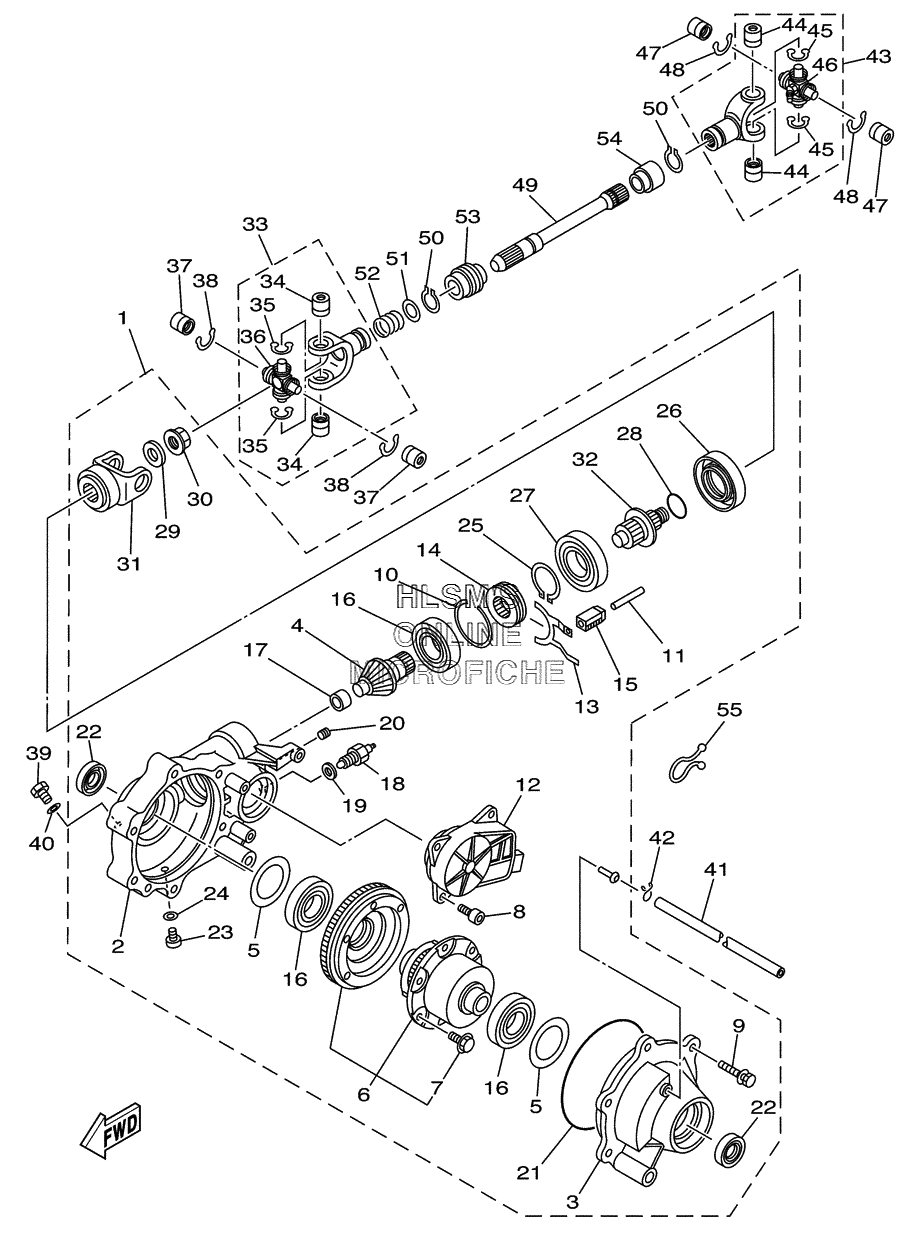

DIFFERENTIAL - FRONT для Yamaha BIG BEAR 400 4X4 YFM400FWS - 2004 года выпуска
-
№АртикулНазвание
-
15FU-46160-01-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
25GH-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
35GH-46162-00-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
45GH-46141-01-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
54WV-46119-01-00 ...SHIM, THRUST (0.1T) (OPT)...SHIM, THRUST (0.1T) (OPT)
-
54WV-46119-11-00 ...SHIM, THRUST (0.2T) (OPT)...SHIM, THRUST (0.2T) (OPT)
-
54WV-46119-21-00 ...SHIM, THRUST (0.3T) (OPT)...SHIM, THRUST (0.3T) (OPT)
-
54WV-46119-31-00 ...SHIM, THRUST (0.4T) (OPT)...SHIM, THRUST (0.4T) (OPT)
-
54WV-46119-51-00 ...SHIM, THRUST (1.0T) (OPT)...SHIM, THRUST (1.0T) (OPT)
-
54WV-46119-41-00 ...SHIM, THRUST (0.5T) (OPT)...SHIM, THRUST (0.5T) (OPT)
-
65GH-46470-02-00 ...LIMITED SLIP DIFF. ASSY...LIMITED SLIP DIFF. ASSY
-
74WV-46155-00-00 ...BOLT 1...BOLT 1
-
891317-08020-00 ...BOLT...BOLT
-
94WV-46159-00-00 ...BOLT 3...BOLT 3
-
104WV-46143-00-00 ...RING, HOLE SNAP 2...RING, HOLE SNAP 2
-
115GH-18318-00-00 ...SHAFT, SHIFTER...SHAFT, SHIFTER
-
125GH-4616A-01-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
135GH-18514-00-00 ...FORK, SHIFT 4...FORK, SHIFT 4
-
144WV-46441-00-00 ...CLUTCH, DRIVEN...CLUTCH, DRIVEN
-
155GH-18319-00-00 ...SHAFT 2...SHAFT 2
-
164WV-46165-00-00 ...BEARING 2...BEARING 2
-
174WV-46167-00-00 ...BEARING 4...BEARING 4
-
183GD-82540-11-00 ...NEUTRAL SWITCH ASSY...NEUTRAL SWITCH ASSY
-
194WV-46132-00-00 ...GASKET 1...GASKET 1
-
2090113-08004-00 ...BOLT, SET...BOLT, SET
-
2193211-40040-00 ...O-RING...O-RING
-
2293102-24034-00 ...OIL SEAL...OIL SEAL
-
2390340-10001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
2490430-10003-00 ...GASKET...GASKET
-
2593450-71142-00 ...CIRCLIP...CIRCLIP
-
2693102-50030-00 ...OIL SEAL...OIL SEAL
-
2793316-00801-00 ...BEARING...BEARING
-
285FU-46134-00-00 ...O-RING 1...O-RING 1
-
2990201-14633-00 ...WASHER, PLATE...WASHER, PLATE
-
304WV-46145-00-00 ...NUT 1...NUT 1
-
315FU-46146-00-00 ...YOKE, JOINT 2...YOKE, JOINT 2
-
325FU-46121-00-00 ...GEAR, DRIVE PINION...GEAR, DRIVE PINION
-
335FU-46108-00-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
3493399-99948-00 ...BEARING...BEARING
-
3593440-20088-00 ...CIRCLIP...CIRCLIP
-
365GT-46187-00-00 ...SPIDER...SPIDER
-
3793399-99948-00 BEARINGBEARING
-
3893440-20088-00 CIRCLIPCIRCLIP
-
3990340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
40214-11198-01-00 GASKETGASKET
-
4190445-078C4-00 HOSE (L900)HOSE (L900)
-
4290467-06016-00 CLIPCLIP
-
435FU-46108-00-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
4493399-99948-00 ...BEARING...BEARING
-
4593440-20088-00 ...CIRCLIP...CIRCLIP
-
465GT-46187-00-00 ...SPIDER...SPIDER
-
4793399-99948-00 BEARINGBEARING
-
4893440-20088-00 CIRCLIPCIRCLIP
-
495FU-G6173-10-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
5099009-19400-00 CIRCLIPCIRCLIP
-
5190201-20266-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
5290501-235L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
535GT-46136-00-00 SEAL 1SEAL 1
-
545GT-46137-00-00 SEAL 2SEAL 2
-
5590464-14800-00 CLAMPCLAMP
