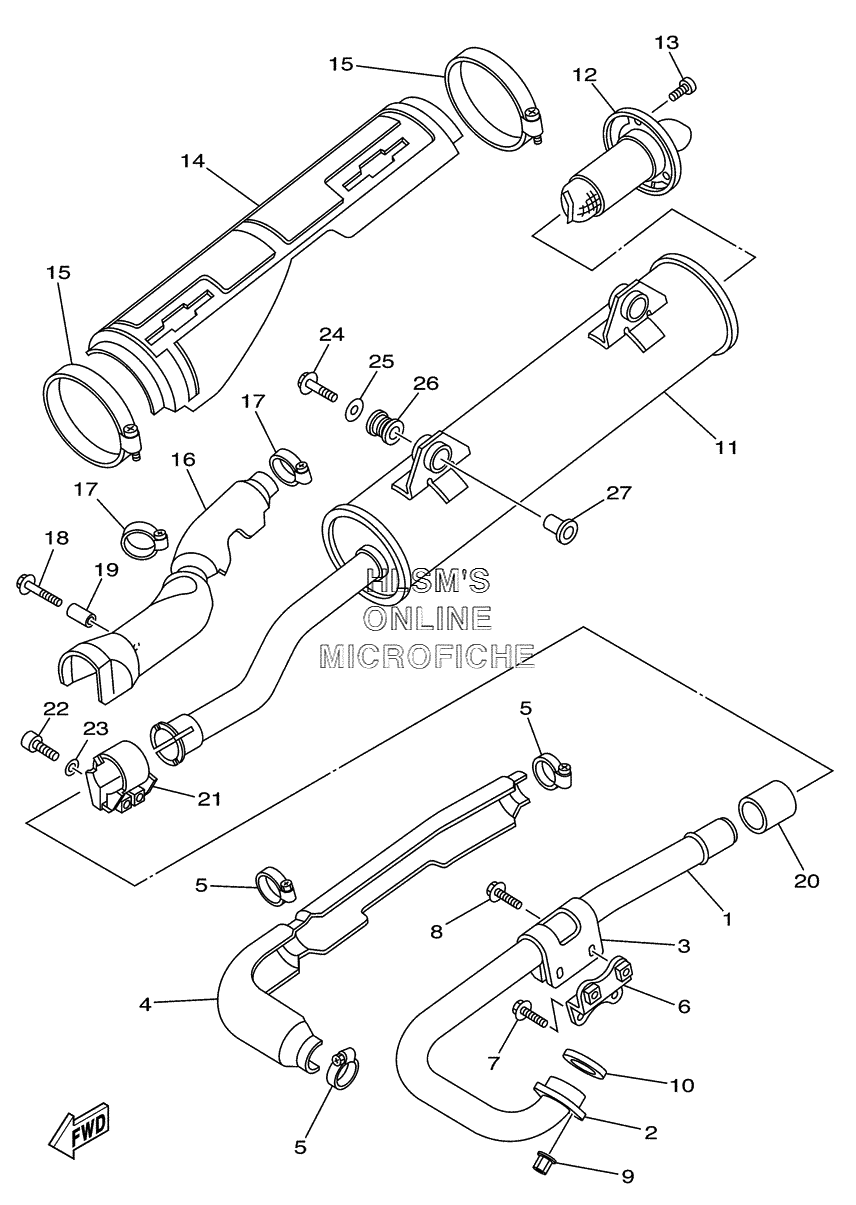

EXHAUST для Yamaha BRUIN 4X4 YFM350FAS - 2004 года выпуска
-
№АртикулНазвание
-
15UH-E4611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
25UH-E4612-00-00 NUT, RINGNUT, RING
-
35UH-E477R-00-00 BAND 1BAND 1
-
45UH-E4628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
55UH-E477T-00-00 BANDBAND
-
65UH-E477K-00-00 PLATE 1PLATE 1
-
79581P-06016-00 BOLT, FLANGEBOLT, FLANGE
-
895817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
990179-06668-00 NUTNUT
-
103GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
115UH-E4711-00-00 MUFFLER 1MUFFLER 1
-
125ND-E4752-00-00 PIPE, OUTLETPIPE, OUTLET
-
135ND-E4719-00-00 BOLT, MUFFLERBOLT, MUFFLER
-
145UH-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
155ND-E4788-00-00 BAND, SILENCERBAND, SILENCER
-
165UH-E4728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
175UH-E477T-00-00 BANDBAND
-
189580P-06035-00 BOLT, FLANGEBOLT, FLANGE
-
195UH-E4638-00-00 COLLARCOLLAR
-
205ND-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
215ND-E4715-00-00 BAND, MUFFLERBAND, MUFFLER
-
225ND-E4777-00-00 BOLTBOLT
-
235ND-E4759-00-00 WASHERWASHER
-
2495827-10040-00 BOLT, FLANGEBOLT, FLANGE
-
2590201-106E0-00 WASHER, PLATEWASHER, PLATE
-
265ND-E4737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2790387-10636-00 COLLARCOLLAR
