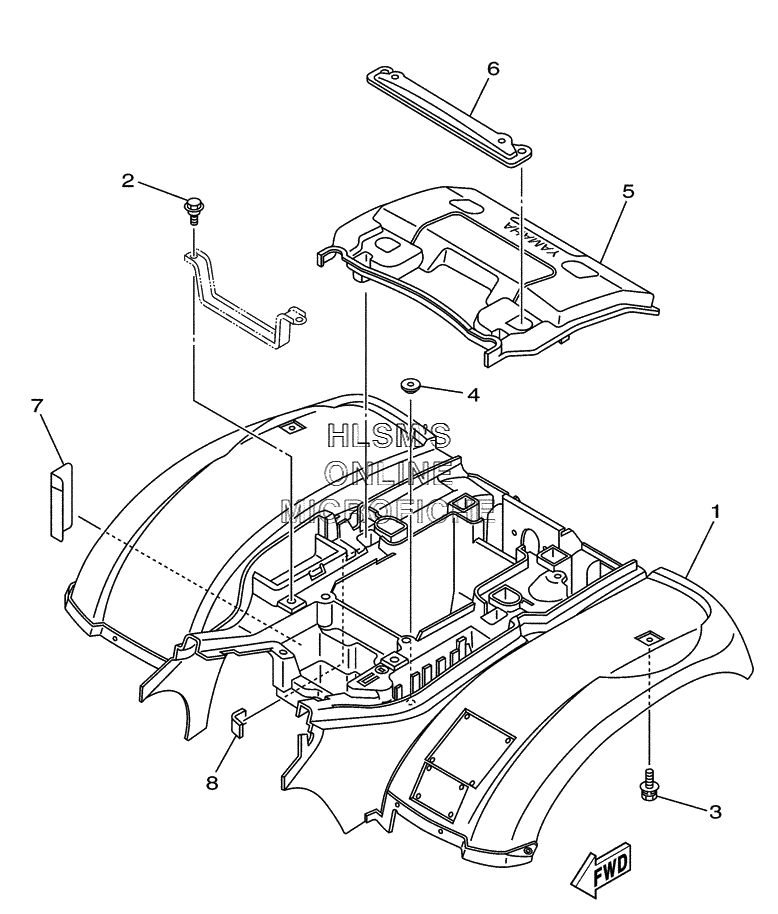

FENDER - REAR для Yamaha GRIZZLY 660 4X4 WETLAND YFM660FHSWL - 2004 года выпуска
-
№АртикулНазвание
-
15KM-W2161-D0-00 REAR FENDER COMP. (FOR PDG)REAR FENDER COMP. (FOR PDG)
-
15KM-W2161-E0-P1 REAR FENDER COMP. (FOR DRMD)REAR FENDER COMP. (FOR DRMD)
-
290109-060F3-00 BOLTBOLT
-
390119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490338-09130-00 PLUGPLUG
-
55KM-2160F-D0-00 LID (FOR PDG)LID (FOR PDG)
-
55KM-2160F-E0-P1 LID (FOR DRMD)LID (FOR DRMD)
-
65KM-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
75GH-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
85KM-21652-10-00 PROTECTORPROTECTOR
