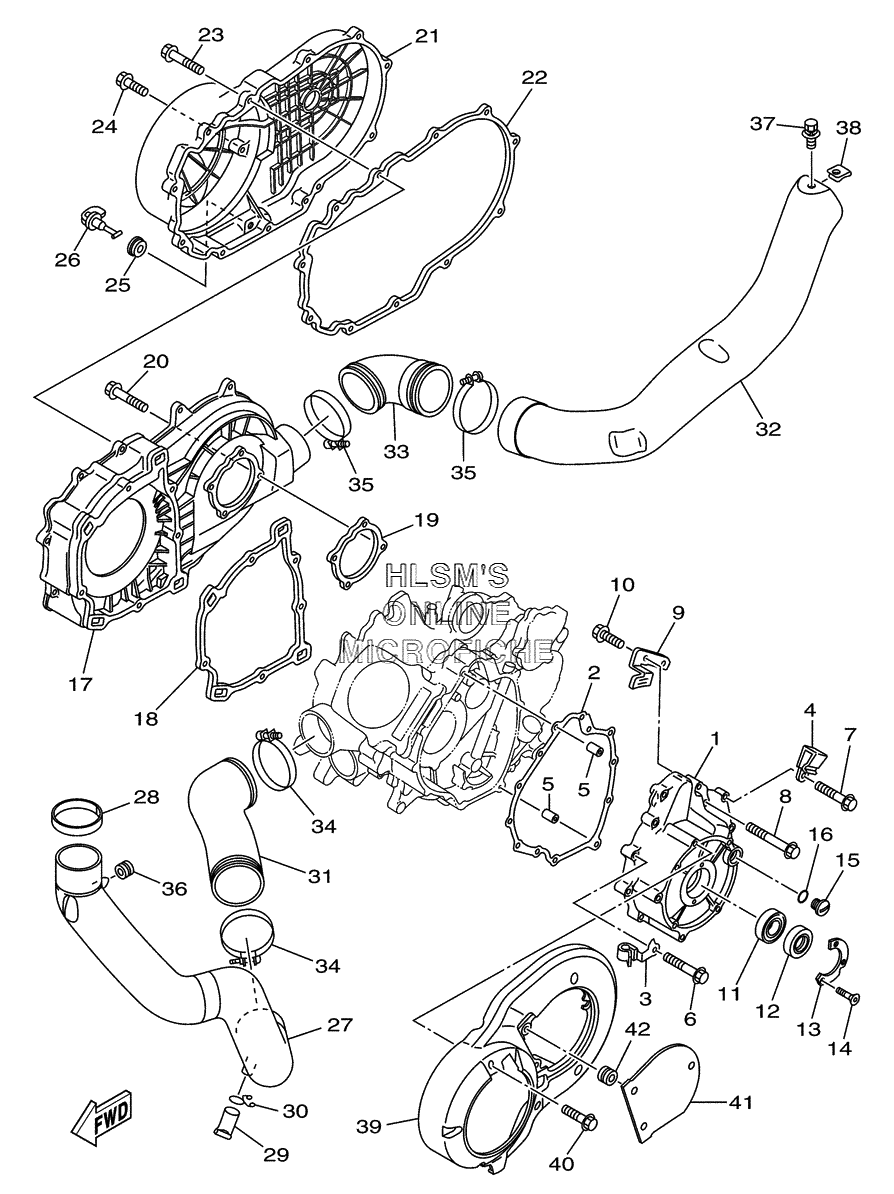

CRANKCASE COVER для Yamaha GRIZZLY 660 4X4 YFM660FS - 2004 года выпуска
-
№АртикулНазвание
-
15KM-15411-10-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
25KM-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
390465-08361-00 CLAMPCLAMP
-
490465-05M87-00 CLAMPCLAMP
-
599530-10116-00 PIN, DOWELPIN, DOWEL
-
695027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
790105-06031-00 BOLT, FLANGEBOLT, FLANGE
-
895027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
95KM-15113-00-00 PLATEPLATE
-
1095027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1193306-07801-00 BEARINGBEARING
-
1293102-28476-00 OIL SEALOIL SEAL
-
1321V-15719-00-00 WASHER, THRUSTWASHER, THRUST
-
1490151-05023-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1590340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1693210-14369-00 O-RINGO-RING
-
175KM-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
185KM-15453-00-00 GASKETGASKET
-
195KM-15315-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
2095827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
215KM-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
225KM-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
2395827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2495827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2590480-13018-00 GROMMETGROMMET
-
265KM-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
275KM-15471-00-00 DUCT, AIRDUCT, AIR
-
285KM-15494-00-00 SEAL, PROTECTORSEAL, PROTECTOR
-
295BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
3090467-16195-00 CLIPCLIP
-
315KM-15472-10-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
325KM-15473-00-00 DUCT, AIRDUCT, AIR
-
335KM-15474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
3490460-81224-00 CLAMP, HOSECLAMP, HOSE
-
3590460-85135-00 CLAMP, HOSECLAMP, HOSE
-
3690480-13398-00 GROMMETGROMMET
-
3790119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3890183-06053-00 NUT, SPRINGNUT, SPRING
-
395KM-15423-00-00 COVER 2COVER 2
-
4095827-06020-00 BOLT, FLANGEBOLT, FLANGE
-
415GH-15413-00-00 COVERCOVER
-
4290480-13398-00 GROMMETGROMMET
