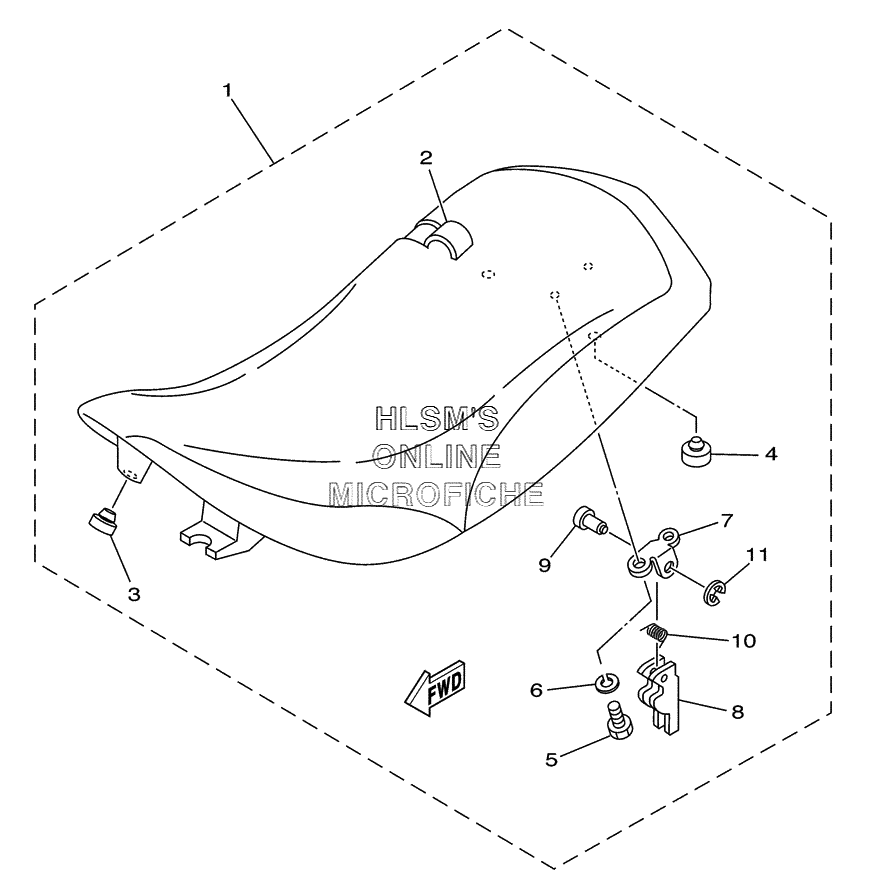

SEAT для Yamaha RAPTOR 80 YFM80WS - 2004 года выпуска
-
№АртикулНазвание
-
15TH-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25TH-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
322W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
4371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
597007-06012-00 ...BOLT...BOLT
-
692907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
74K0-24775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
-
829U-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
94K0-24774-A0-00 ...PIN...PIN
-
1090508-20454-00 ...SPRING, TORSION...SPRING, TORSION
-
1193430-04002-00 ...CIRCLIP...CIRCLIP
Все узлы модели:
- AIR CLEANER W/ CARBURETOR - INTAKE
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- REFLECTOR ASSY
- • SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ BRAKE ASSY
- WHEEL - REAR W/ BRAKE ASSY
