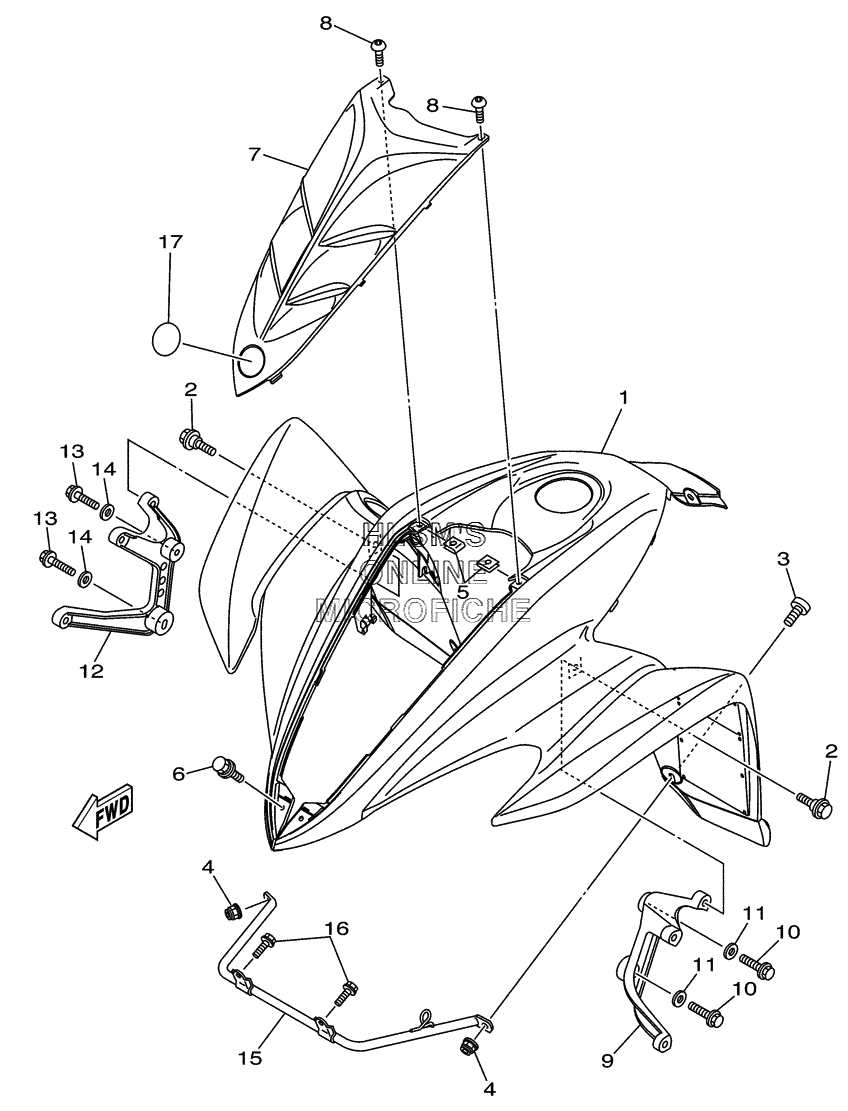

FENDER - FRONT для Yamaha RAPTOR YFM350S - 2004 года выпуска
-
№АртикулНазвание
-
15YT-W2151-00-00 FRONT FENDER COMP. (FOR DPBSE)FRONT FENDER COMP. (FOR DPBSE)
-
15YT-W2151-10-00 FRONT FENDER COMP. (FOR BWS1)FRONT FENDER COMP. (FOR BWS1)
-
290109-063F1-00 BOLTBOLT
-
390149-06306-00 SCREWSCREW
-
495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
590183-05008-00 NUT, SPRINGNUT, SPRING
-
690119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
75YT-23391-00-00 PANEL, FRONT (FOR DPBSE)PANEL, FRONT (FOR DPBSE)
-
75YT-23391-10-00 PANEL, FRONT (FOR BWS1)PANEL, FRONT (FOR BWS1)
-
890110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95YT-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
1095817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-06050-00 WASHER, PLATEWASHER, PLATE
-
125YT-21514-00-00 STAY, FENDER 2STAY, FENDER 2
-
1395817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-06050-00 WASHER, PLATEWASHER, PLATE
-
155YT-21562-00-00 STAY, FENDER 3STAY, FENDER 3
-
1695827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
178AC-2414B-01-00 EMBLEMEMBLEM
