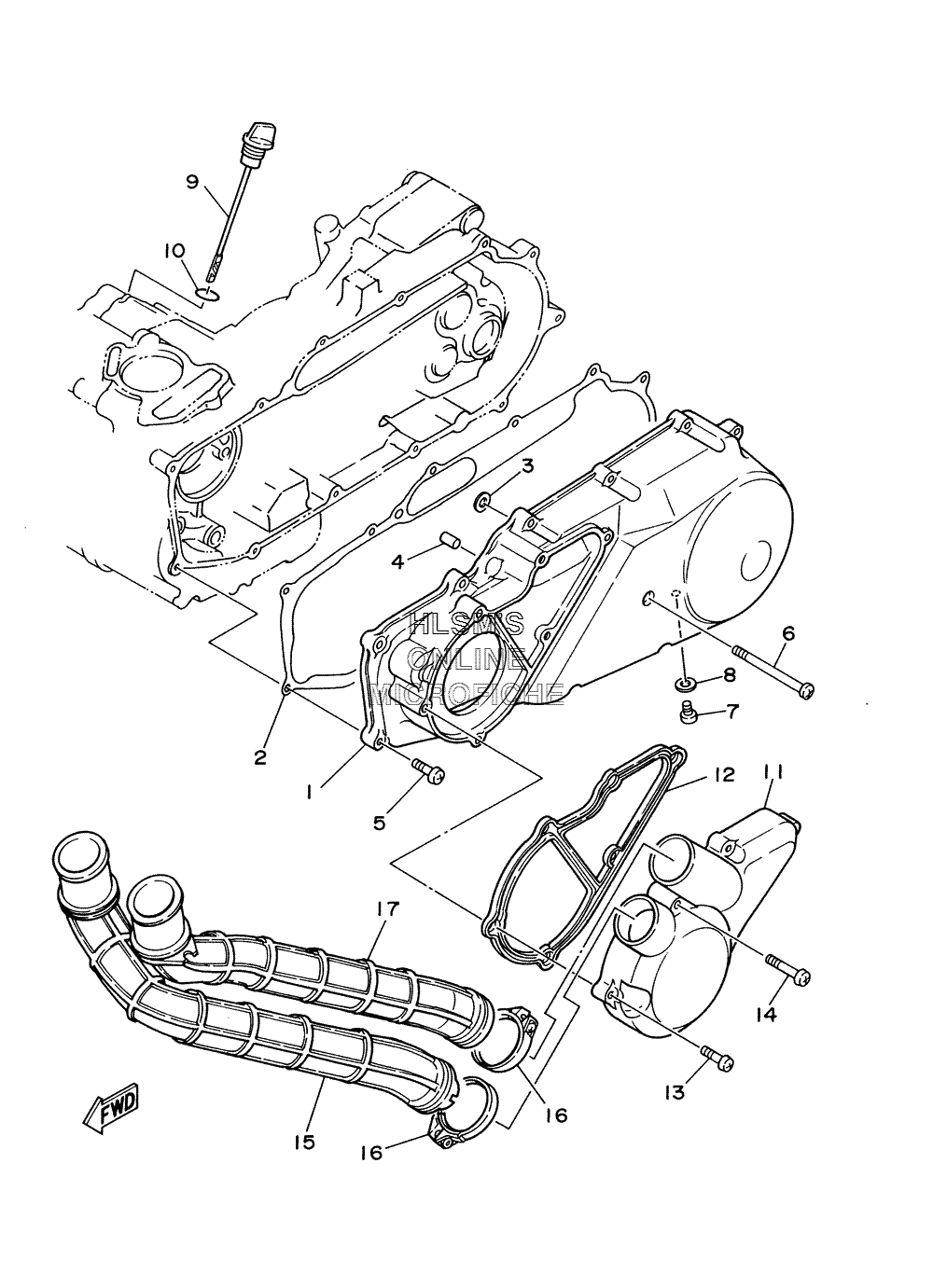

CRANKCASE COVER для Yamaha GRIZZLY 125 HUNTER YFM125GHT - 2005 года выпуска
-
№АртикулНазвание
-
13FA-15411-00-00 COVER, CRANKCASE LCOVER, CRANKCASE L
-
23FA-15451-11-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
33FA-15467-00-00 GASKETGASKET
-
499530-10014-00 PIN, DOWELPIN, DOWEL
-
598507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
698507-06090-00 SCREW, PAN HEADSCREW, PAN HEAD
-
798507-06008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
890201-06630-00 WASHER, PLATEWASHER, PLATE
-
93FA-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1093210-19123-00 O-RINGO-RING
-
113FA-15471-00-00 DUCT, AIRDUCT, AIR
-
123FA-15472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
1398507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1498507-06045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
153FA-15475-00-00 DUCT, AIRDUCT, AIR
-
1690460-54085-00 CLAMP, HOSECLAMP, HOSE
-
173FA-15477-00-00 DUCT, AIRDUCT, AIR
