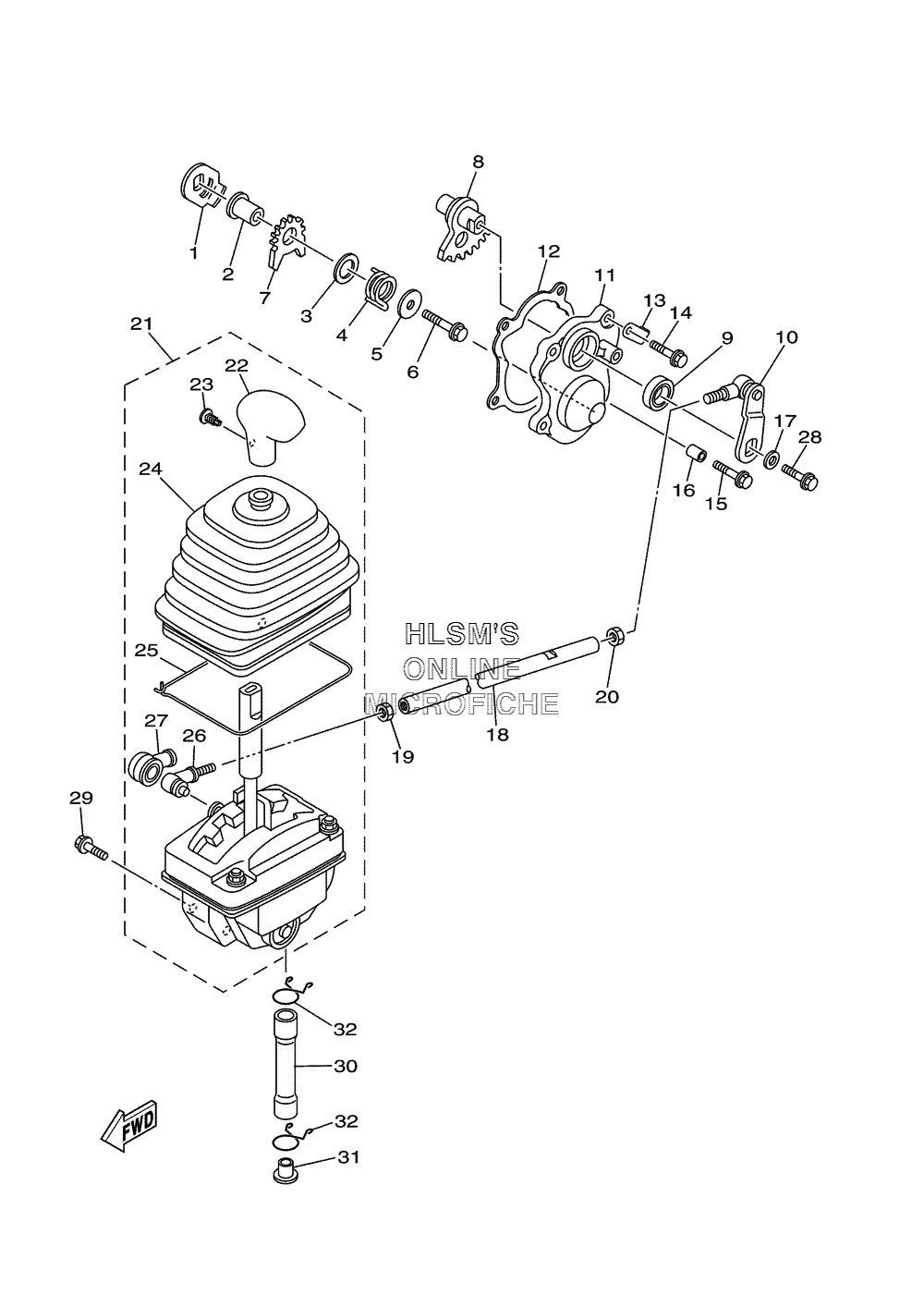

SHIFT SHAFT для Yamaha GRIZZLY 660 HUNTER WETLAND YFM66FAHWT - 2005 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06008-00 WASHER, PLATEWASHER, PLATE
-
695817-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
85KM-18197-00-00 SHAFTSHAFT
-
993102-15212-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
105KM-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
115KM-18129-01-00 COVER, SHIFT SHAFTCOVER, SHIFT SHAFT
-
125KM-18146-00-00 GASKETGASKET
-
1390465-10026-00 CLAMPCLAMP
-
1495027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1595027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1699530-08012-00 PIN, DOWELPIN, DOWEL
-
1790201-06008-00 WASHER, PLATEWASHER, PLATE
-
185KM-18115-10-00 ROD, SHIFTROD, SHIFT
-
1990170-08358-00 NUTNUT
-
2095307-08700-00 NUTNUT
-
215KM-18300-01-00 SHIFTER ASSY.SHIFTER ASSY.
-
225GH-18174-00-00 ...KNOB, SHIFT LEVER...KNOB, SHIFT LEVER
-
2390269-05055-00 ...RIVET...RIVET
-
245KM-18131-00-00 ...BOOT, SEALING...BOOT, SEALING
-
255GH-18617-00-00 ...STOPPER,RUBBER...STOPPER,RUBBER
-
261KT-18157-00-00 ...JOINT 2...JOINT 2
-
272H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
2895817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2995807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
3090446-16001-00 HOSE (L90)HOSE (L90)
-
3190338-12081-00 PLUG, W/S STAY 1 & 2PLUG, W/S STAY 1 & 2
-
3290467-15012-00 CLIP, SCISSORCLIP, SCISSOR
