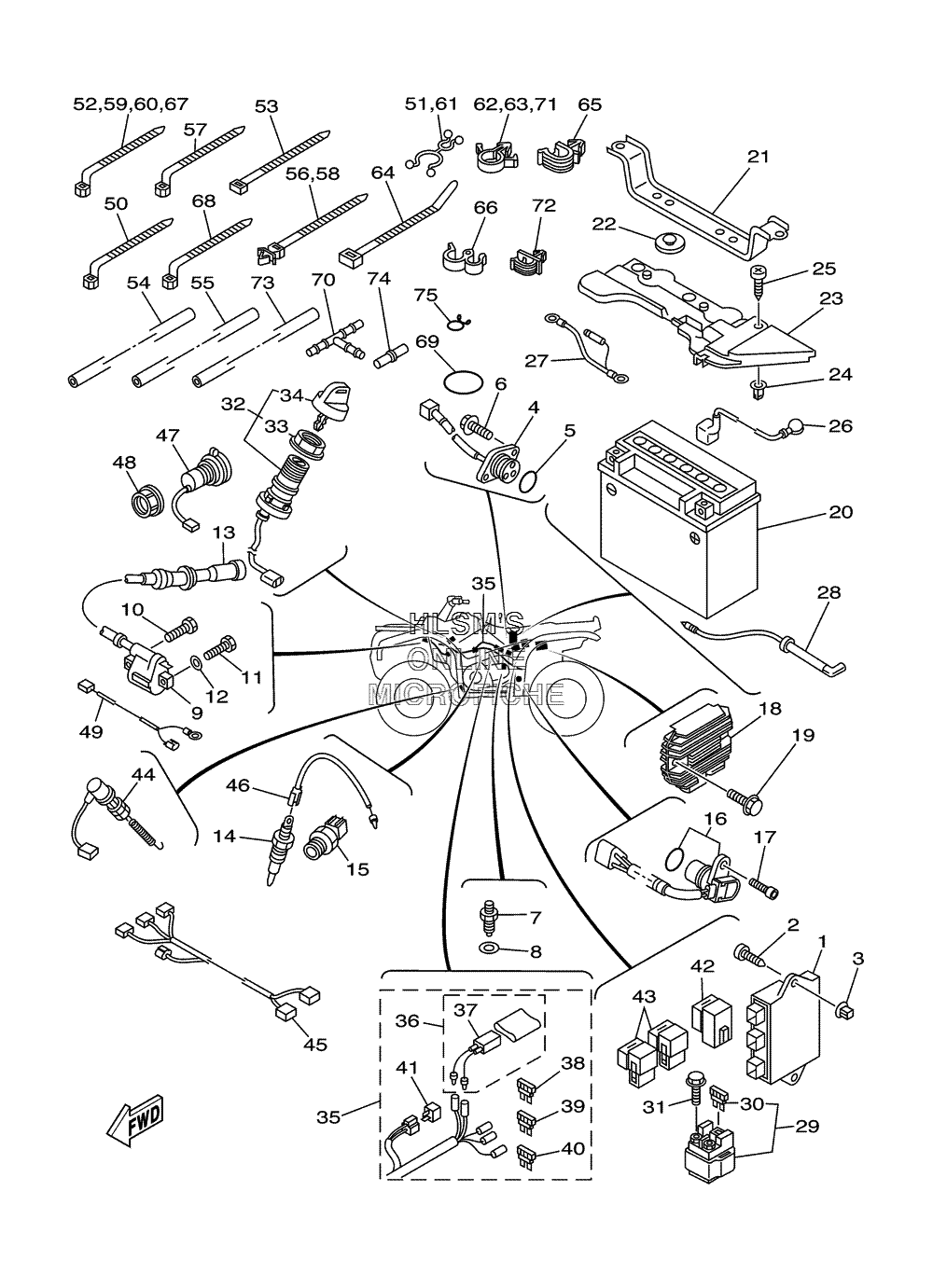

ELECTRICAL для Yamaha GRIZZLY 660 HUNTER YFM66FAHT - 2005 года выпуска
-
№АртикулНазвание
-
15KM-85540-10-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
297707-60025-00 SCREW, TAPPINGSCREW, TAPPING
-
390338-08226-00 PLUGPLUG
-
45KM-82540-00-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
593210-29196-00 O-RINGO-RING
-
690119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
75LP-82540-00-00 REVERSE SWITCH ASSY.REVERSE SWITCH ASSY.
-
890430-10148-00 GASKETGASKET
-
93KJ-82310-10-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
1090109-06723-00 BOLTBOLT
-
1197007-06020-00 BOLTBOLT
-
1292907-06600-00 WASHER, PLATEWASHER, PLATE
-
133YF-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
145KM-82560-00-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
155GM-82560-00-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
165UG-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
1791317-06016-00 BOLTBOLT
-
185BN-81960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
1995807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
204SH-82100-22-00 BATTERY ASSY. (YTX20L-BS)BATTERY ASSY. (YTX20L-BS)
-
215KM-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
22371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
235KM-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
2490338-08226-00 PLUGPLUG
-
2597707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
265KM-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
275KM-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
285KM-82541-00-00 WIRE, LEADWIRE, LEAD
-
294SV-81940-10-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
301AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3195027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
325KM-82510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
333HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
343HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
355KM-82590-20-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
365GT-82180-00-00 ...CIRCUIT BREAKER ASSY....CIRCUIT BREAKER ASSY.
-
375GT-82560-00-00 ......THERMO SWITCH ASSY.......THERMO SWITCH ASSY.
-
385JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
395JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
405JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
413WP-81980-00-00 ...RECTIFIER 2...RECTIFIER 2
-
4229U-81950-93-00 RELAY ASSY.RELAY ASSY.
-
435DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
445KM-82530-00-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
455KM-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
465KM-82507-00-00 WIRE, LEADWIRE, LEAD
-
475GH-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
485GH-82114-00-00 NUTNUT
-
495KM-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
5090464-12045-00 CLAMPCLAMP
-
5190464-35047-00 CLAMPCLAMP
-
5290464-15195-00 CLAMPCLAMP
-
53437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
5490445-07371-00 HOSEHOSE
-
5590445-07176-00 HOSEHOSE
-
5690464-12089-00 CLAMPCLAMP
-
5790460-15126-00 CLAMP, HOSECLAMP, HOSE
-
5890464-12089-00 CLAMPCLAMP
-
5990464-15195-00 CLAMPCLAMP
-
6090464-15195-00 CLAMPCLAMP
-
6190464-35047-00 CLAMPCLAMP
-
6290464-15157-00 CLAMPCLAMP
-
6390464-15157-00 CLAMPCLAMP
-
6490465-10098-00 CLAMPCLAMP
-
6590464-14M55-00 CLAMPCLAMP
-
6690468-15139-00 CLIPCLIP
-
6790464-15195-00 CLAMPCLAMP
-
6890464-13073-00 CLAMPCLAMP
-
6993210-975A9-00 O-RINGO-RING
-
7090413-05014-00 WAY 3WAY 3
-
7190464-15157-00 CLAMPCLAMP
-
7290464-07001-00 CLAMPCLAMP
-
7390446-09155-00 TUBE, FLEXIBLETUBE, FLEXIBLE
-
745KM-82109-00-00 JOINT, HOSEJOINT, HOSE
-
7590467-08021-00 CLIP, SCISSORCLIP, SCISSOR
