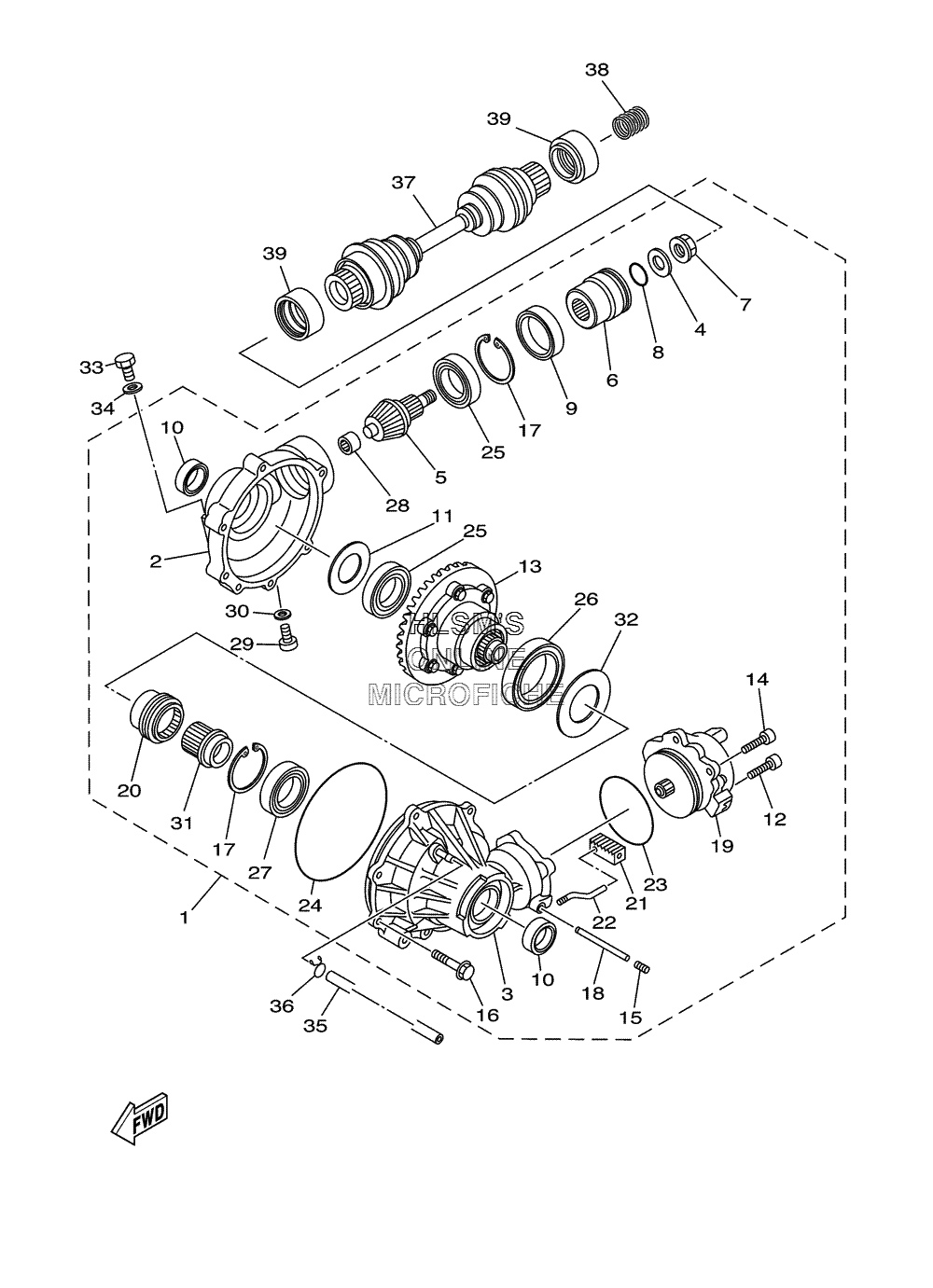

DIFFERENTIAL - FRONT для Yamaha GRIZZLY 660 YFM66FAT - 2005 года выпуска
-
№АртикулНазвание
-
15KM-46160-12-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
25KM-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
35KM-46162-00-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
490201-14633-00 ...WASHER, PLATE...WASHER, PLATE
-
55KM-46141-11-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
65KM-67839-00-00 ......CUPLING......CUPLING
-
74WV-46145-00-00 ...NUT 1...NUT 1
-
893210-14359-00 ...O-RING...O-RING
-
993102-48012-00 ...OIL SEAL...OIL SEAL
-
1093102-24034-00 ...OIL SEAL...OIL SEAL
-
114WV-46119-01-00 ...SHIM, THRUST (0.1T)...SHIM, THRUST (0.1T)
-
114WV-46119-11-00 ...SHIM, THRUST (0.2T)...SHIM, THRUST (0.2T)
-
114WV-46119-21-00 ...SHIM, THRUST (0.3T)...SHIM, THRUST (0.3T)
-
114WV-46119-31-00 ...SHIM, THRUST (0.4T)...SHIM, THRUST (0.4T)
-
114WV-46119-41-00 ...SHIM, THRUST (0.5T)...SHIM, THRUST (0.5T)
-
114WV-46119-51-00 ...SHIM, THRUST (1.0T)...SHIM, THRUST (1.0T)
-
125KM-46155-00-00 ...BOLT 1...BOLT 1
-
135KM-46470-12-00 ...LIMITED SLIP DIFF. ASSY....LIMITED SLIP DIFF. ASSY.
-
1491317-08020-00 ...BOLT...BOLT
-
1590113-08004-00 ...BOLT, SET...BOLT, SET
-
164WV-46159-00-00 ...BOLT 3...BOLT 3
-
175KM-46143-00-00 ......RING, HOLE SNAP 2......RING, HOLE SNAP 2
-
185KM-42752-00-00 ...SHAFT...SHAFT
-
195KM-4616A-01-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
205KM-46441-00-00 ......CLUTCH, DRIVEN......CLUTCH, DRIVEN
-
215KM-18319-00-00 ...SHAFT 2...SHAFT 2
-
225KM-18514-00-00 ...FORK, SHIFT 4...FORK, SHIFT 4
-
2393210-82001-00 ...O-RING...O-RING
-
2493211-40040-00 ...O-RING...O-RING
-
2593306-00709-00 ...BEARING...BEARING
-
2693306-91201-00 ...BEARING...BEARING
-
2793316-00702-00 ...BEARING...BEARING
-
284WV-46167-00-00 ...BEARING 4...BEARING 4
-
2990340-10001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
3090430-10003-00 ...GASKET...GASKET
-
315KM-46451-00-00 ...ADAPTER...ADAPTER
-
325KM-46119-01-00 ...SHIM, THRUST (0.1T)...SHIM, THRUST (0.1T)
-
325KM-46119-11-00 ...SHIM, THRUST (0.2T)...SHIM, THRUST (0.2T)
-
325KM-46119-21-00 ...SHIM, THRUST (0.3T)...SHIM, THRUST (0.3T)
-
325KM-46119-31-00 ...SHIM, THRUST (0.4T)...SHIM, THRUST (0.4T)
-
325KM-46119-41-00 ...SHIM, THRUST (0.5T)...SHIM, THRUST (0.5T)
-
325KM-46119-51-00 ...SHIM, THRUST (1.0T)...SHIM, THRUST (1.0T)
-
325KM-46119-61-00 ...SHIM, THRUST (1.5T)...SHIM, THRUST (1.5T)
-
3390340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
34214-11198-01-00 GASKETGASKET
-
3590445-07371-00 HOSEHOSE
-
3690467-07029-00 CLIP, SCISSORCLIP, SCISSOR
-
375KM-46173-10-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
3890501-200A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
395KM-22358-00-00 SEAL 1SEAL 1
