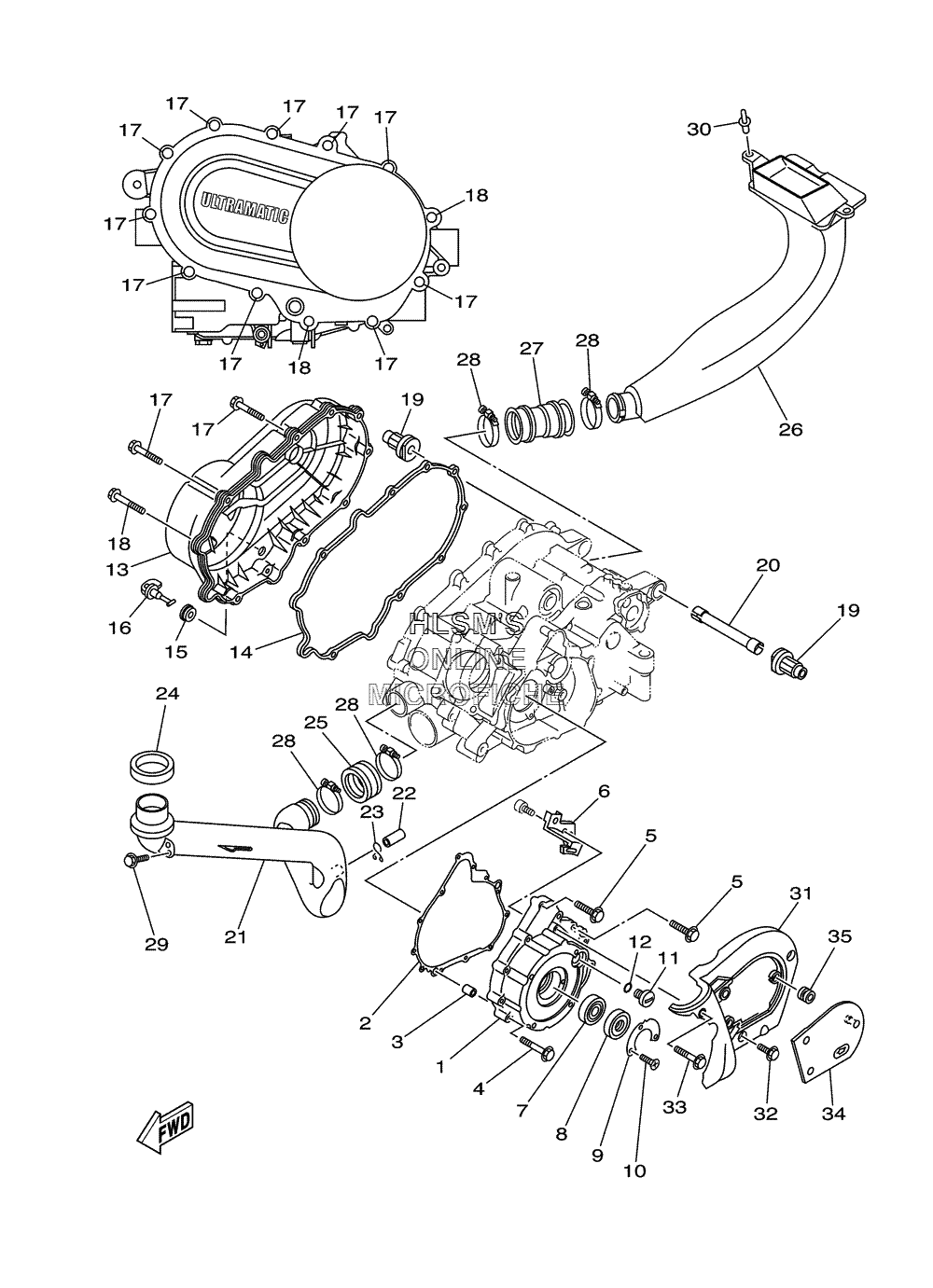

CRANKCASE COVER для Yamaha KODIAK 400 4x4 YFM4FAT - 2005 года выпуска
-
№АртикулНазвание
-
15GH-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
25GH-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-10114-00 PIN, DOWELPIN, DOWEL
-
495027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
595027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
65GH-15113-00-00 PLATEPLATE
-
793306-07801-00 BEARINGBEARING
-
893102-28476-00 OIL SEAL, SW-TYPEOIL SEAL, SW-TYPE
-
921V-15719-00-00 WASHER, THRUSTWASHER, THRUST
-
1090151-05023-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1190340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1293210-14369-00 O-RINGO-RING
-
135ND-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
145GH-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
1590480-13018-00 GROMMETGROMMET
-
165KM-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
1795827-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1895827-06045-00 BOLT, FLANGEBOLT, FLANGE
-
195GH-15336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
205GH-15317-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
215ND-E5471-00-00 DUCT, AIRDUCT, AIR
-
225BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2390467-16195-00 CLIP, SCISSORCLIP, SCISSOR
-
245ND-E5434-00-00 SEAL, CLEANER COVERSEAL, CLEANER COVER
-
255ND-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
261D9-E5473-00-00 DUCT, AIRDUCT, AIR
-
271D9-E5474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
2890450-64002-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
2995807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3090269-08813-00 RIVETRIVET
-
315ND-E5423-00-00 COVER 2COVER 2
-
3295027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3395027-06035-00 BOLT, FLANGEBOLT, FLANGE
-
345ND-E5413-00-00 COVERCOVER
-
3590480-13398-00 GROMMETGROMMET
