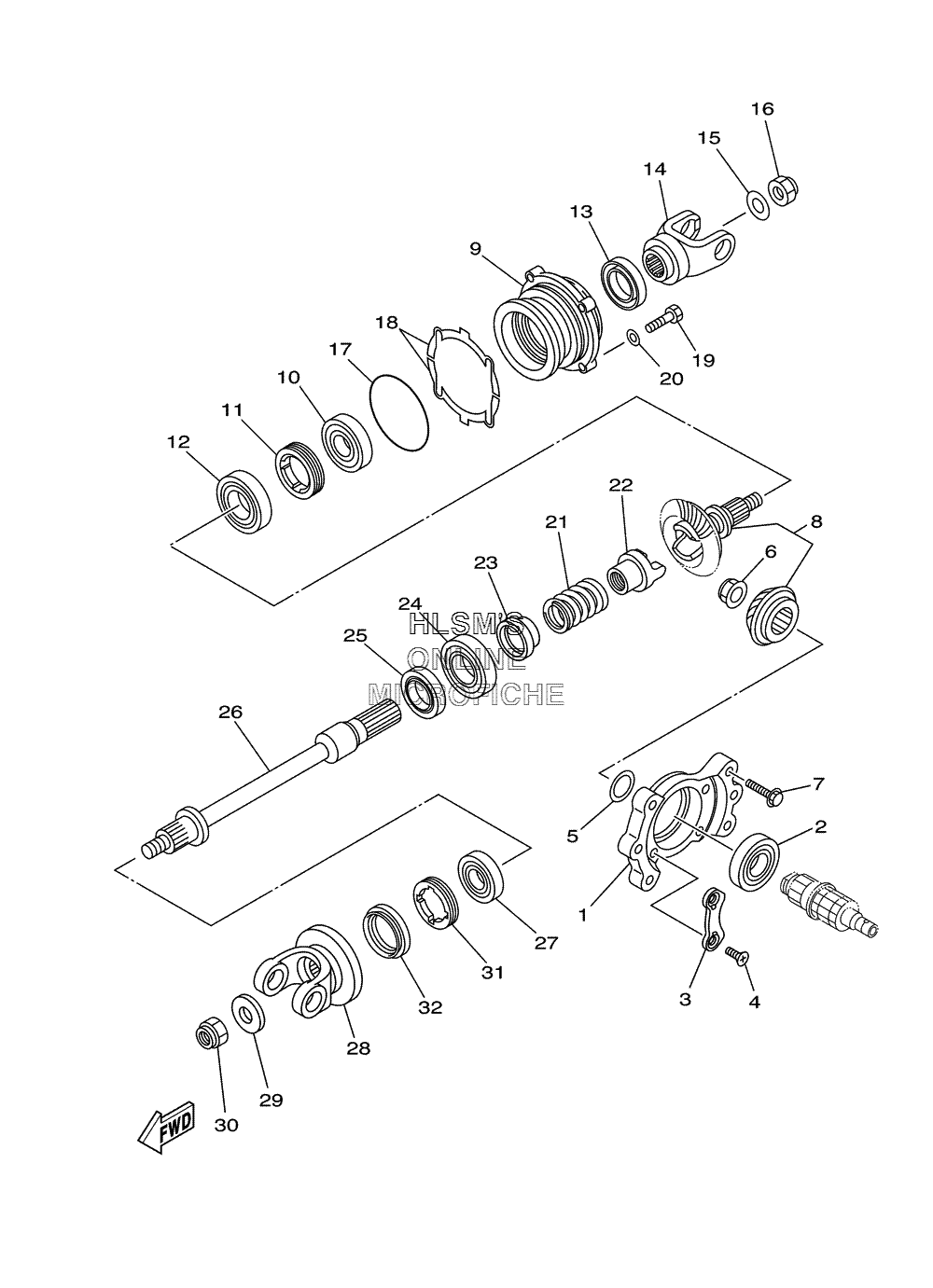

MIDDLE DRIVE GEAR для Yamaha KODIAK 450 4X4 BLACK/CARBON YFM45FSET - 2005 года выпуска
-
№АртикулНазвание
-
15GH-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
293306-20622-00 BEARINGBEARING
-
311H-15383-02-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
490149-08152-00 SCREWSCREW
-
552G-17531-01-00 SHIM, PINION (0.1T) (OPT)SHIM, PINION (0.1T) (OPT)
-
552G-17531-11-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
552G-17531-31-00 SHIM, PINION (0.3T) (OPT)SHIM, PINION (0.3T) (OPT)
-
552G-17531-21-00 SHIM, PINION (0.2T) (OPT)SHIM, PINION (0.2T) (OPT)
-
552G-17531-41-00 SHIM, PINION (0.4T) (OPT)SHIM, PINION (0.4T) (OPT)
-
552G-17531-51-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
690179-22526-00 NUTNUT
-
795817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
84WV-17530-00-00 PINION SETPINION SET
-
95GH-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1093306-30538-00 BEARINGBEARING
-
1190179-65305-00 NUTNUT
-
1293306-20715-00 BEARINGBEARING
-
1393102-35012-00 OIL SEALOIL SEAL
-
141D9-17556-00-00 YOKE, JOINTYOKE, JOINT
-
1590201-14633-00 WASHER, PLATEWASHER, PLATE
-
1690185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1793210-78544-00 O-RINGO-RING
-
185GH-17531-00-00 SHIM, PINION (0.1T) (OPT)SHIM, PINION (0.1T) (OPT)
-
185GH-17531-10-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
185GH-17531-20-00 SHIM, PINION (0.2T) (OPT)SHIM, PINION (0.2T) (OPT)
-
185GH-17531-30-00 SHIM, PINION (0.3T) (OPT)SHIM, PINION (0.3T) (OPT)
-
185GH-17531-40-00 SHIM, PINION (0.4T) (OPT)SHIM, PINION (0.4T) (OPT)
-
185GH-17531-50-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
185GH-17531-60-00 SHIM, PINION (0.6T) (OPT)SHIM, PINION (0.6T) (OPT)
-
1997027-08030-00 BOLTBOLT
-
2092907-08600-00 WASHER, PLATEWASHER, PLATE
-
2190501-650L5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
224VR-17527-00-00 CAM, DRIVENCAM, DRIVEN
-
235UH-17585-00-00 COLLAR, GEARCOLLAR, GEAR
-
2493306-00612-00 BEARINGBEARING
-
2593102-30170-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
261D9-1761A-00-00 SHAFT, 1SHAFT, 1
-
2793306-20582-00 BEARINGBEARING
-
285KM-17576-00-00 YOKE, JOINT 2YOKE, JOINT 2
-
2990201-14633-00 WASHER, PLATEWASHER, PLATE
-
3090185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190179-55660-00 NUTNUT
-
3293102-44454-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
