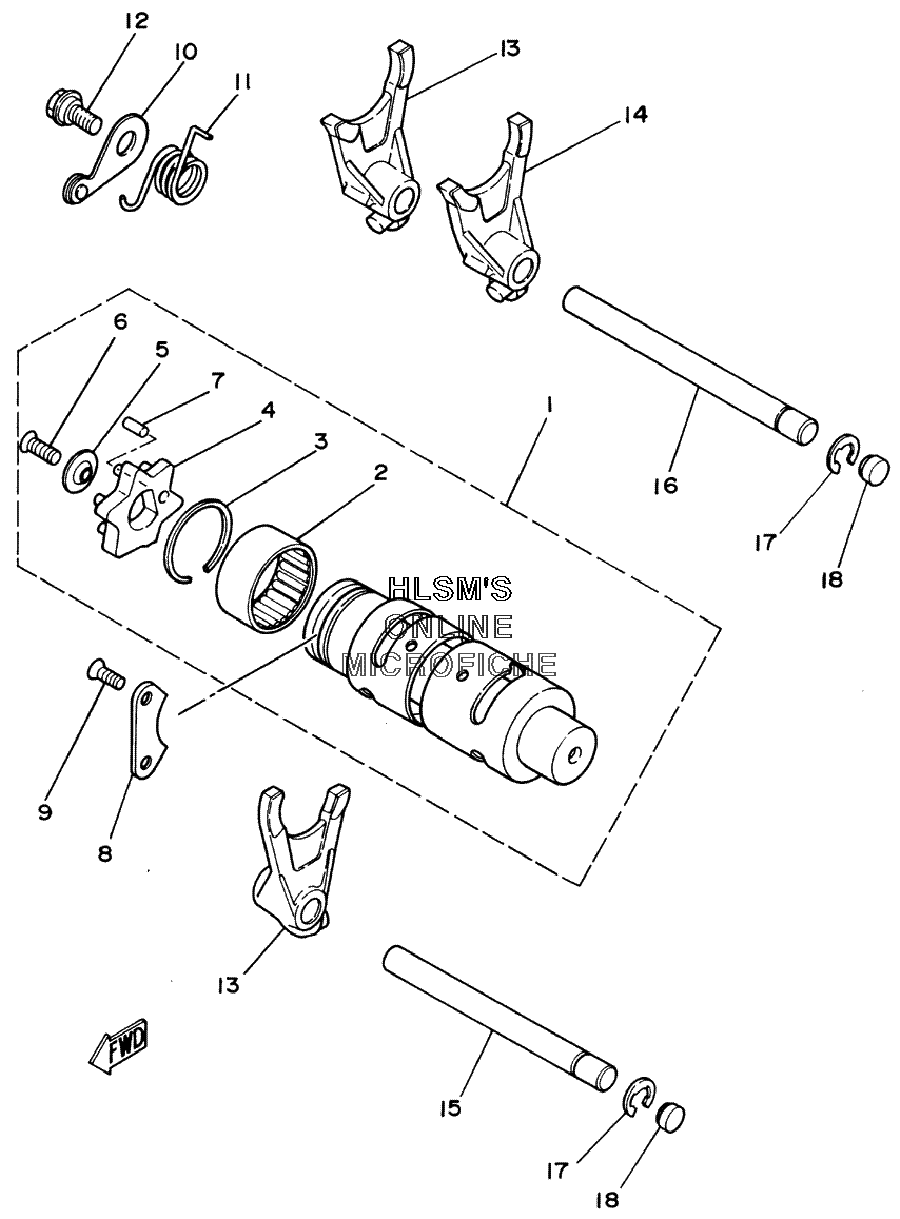

SHIFT CAM W/ FORK для Yamaha BANSHEE SE YFZ350SEV - 2006 года выпуска
-
№АртикулНазвание
-
12GU-18540-00-00 SHIFT CAM ASSY.SHIFT CAM ASSY.
-
293315-23612-00 ...BEARING, CYL.#15...BEARING, CYL.#15
-
393440-34025-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
44L0-18185-00-00 ...SEGMENT...SEGMENT
-
53R4-18561-00-00 ...PLATE, SIDE 1...PLATE, SIDE 1
-
698707-05016-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
793604-12037-00 ...PIN, DOWEL...PIN, DOWEL
-
84L0-18562-00-00 PLATE, STOPPER 2PLATE, STOPPER 2
-
998707-06014-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
104L0-18140-00-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
1190508-29728-00 SPRING, TORSIONSPRING, TORSION
-
1290109-063F7-00 BOLTBOLT
-
132GU-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
142GU-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
154L0-18531-01-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1629L-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
1793430-08007-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
1890334-10006-00 PLUG, STRAIGHTPLUG, STRAIGHT
