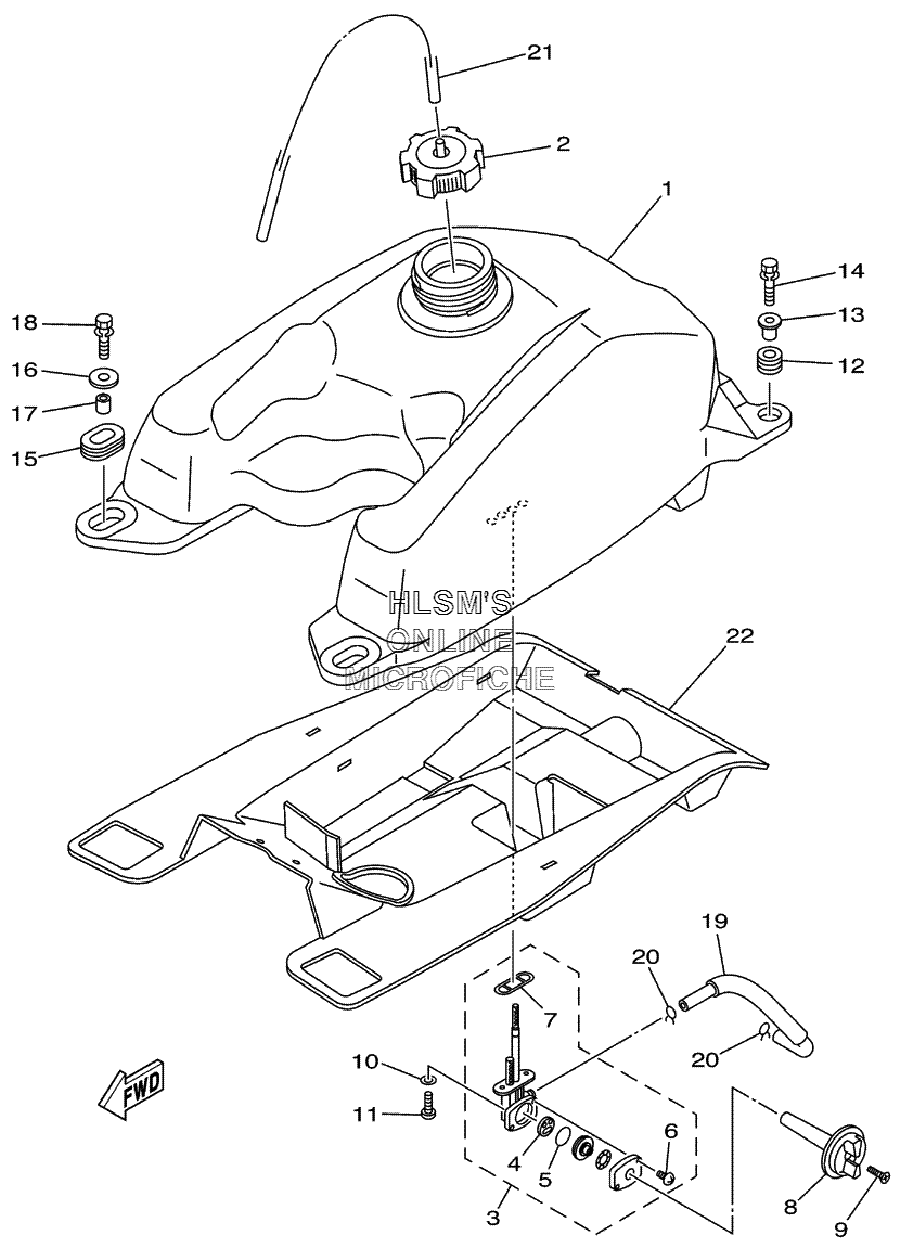

FUEL TANK для Yamaha BRUIN350 4WD YFM35FAV - 2006 года выпуска
-
№АртикулНазвание
-
15UH-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSY.CAP ASSY.
-
35KM-24500-01-00 FUEL COCK ASSY. 1FUEL COCK ASSY. 1
-
43AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
53AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
698507-03014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
74X8-24512-00-00 ...O-RING...O-RING
-
85GH-24524-00-00 LEVER, COCKLEVER, COCK
-
998707-04018-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1090202-05193-00 WASHER, PLATEWASHER, PLATE
-
1190149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1290480-18290-00 GROMMETGROMMET
-
1390387-066J1-00 COLLARCOLLAR
-
1490119-06831-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590480-01400-00 GROMMETGROMMET
-
1690201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1790387-07598-00 COLLARCOLLAR
-
1890119-06831-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
195UH-F4311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2090467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
2190445-088C5-00 HOSE (L400)HOSE (L400)
-
225UH-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
