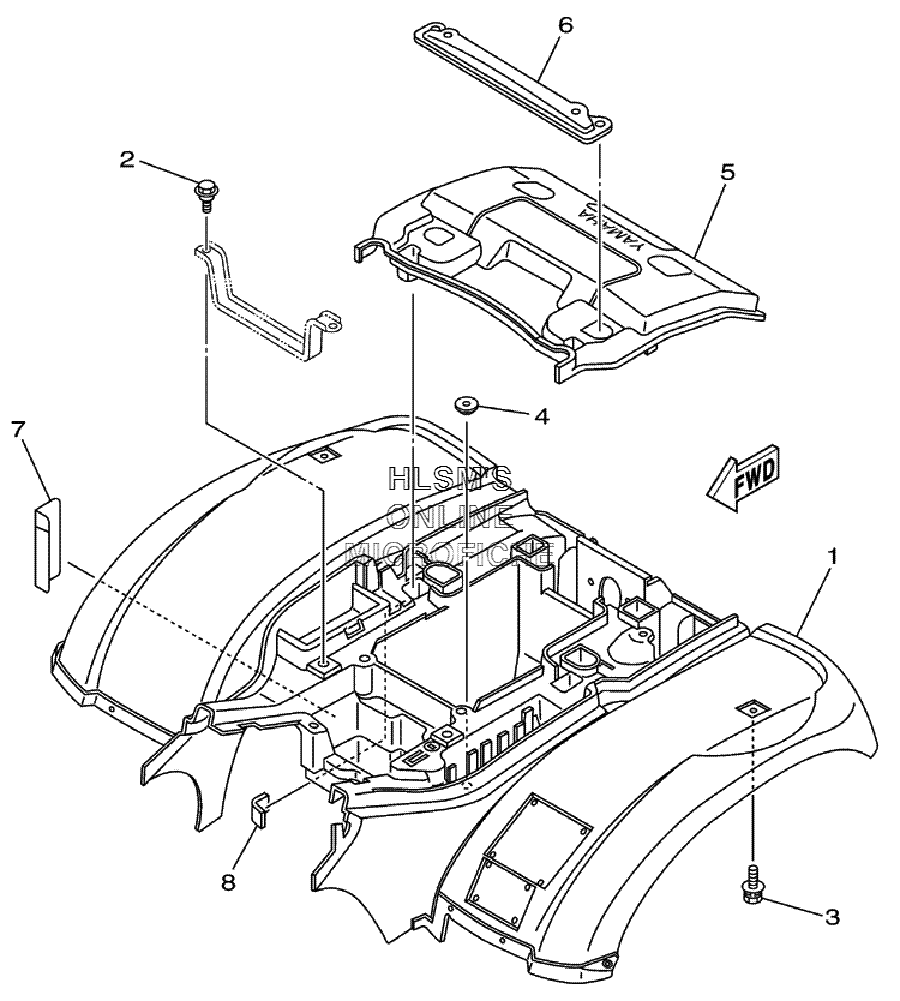

FENDER - REAR для Yamaha GRIZZLY 660 4x4 SE YFM66FASEV - 2006 года выпуска
-
№АртикулНазвание
-
15KM-W2161-61-00 REAR FENDER COMP.REAR FENDER COMP.
-
290109-060F3-00 BOLTBOLT
-
390119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490338-09130-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
55KM-2160F-40-00 LIDLID
-
65KM-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
75GH-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
85KM-21652-10-00 PROTECTORPROTECTOR
